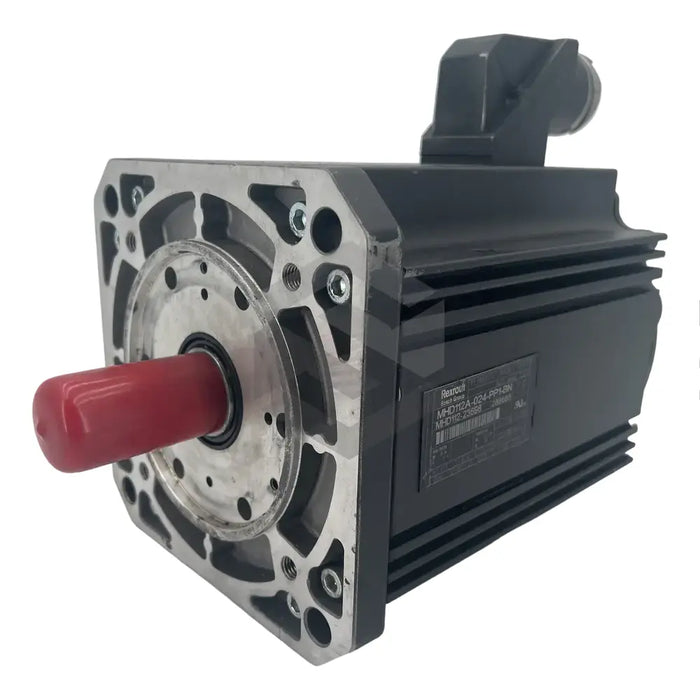

product Main (Front Left) image of R911288685

R911288685

by Bosch Rexroth Indramat
$12,628.00 - $12,628.00
$12,628.00
$12,628.00 - $12,628.00
$12,628.00
In Stock, Ships Today
The R911288685 (MHD112A-024-PP1-BN) is a synchronous servo motor produced by Bosch Rexroth Indramat. With a frame size and length coded at 112 and A respectively, along with a 024 motor winding code, it's designed to be securely fastened via four flange mounting points. Noteworthy measurements include a centering diameter of 130mm, a total length of 309mm and a shaft diameter of 40mm. The shaft, affixed with a keyway and sealing ring, requires occasional inspection due to operating wear. With an IP65 rating, the R911288685 (MHD112A-024-PP1-BN) may be efficiently placed near working machinery, limiting maintenance costs. Within its robust design, this motor boasts digital servo feedback facilitated by an integrated multiturn absolute encoder. This allows for important feedback to be relayed to the drive controller. The power connector is situated on side B of the housing and it includes a 22Nm holding brake built to restrict the motor shaft movement. The brake disengages upon receiving a 24 Volts DC signal. Cooling can be naturally occurring or induced via the surface, with an optimal ambient temperature of 0 to 40 degrees Celsius. Capable of a maximum 4000 RPM and weighing roughly 23kgs, the R911288685 (MHD112A-024-PP1-BN) is finished with a durable prime black coat.
30 Day Warranty
Technical Specifications
  • Shaft Diameter: 40 millimeters
  • Power Connector: Side B of housing
  • Motor Frame Length: A
  • Cooling System: Natural Convection or Surface Cooling
  • Motor Winding Code: 024
