R911288813
Original price
$25,706.47
-
Original price
$25,706.47
Original price
$25,706.47
$25,706.47
-
$25,706.47
Current price
$25,706.47

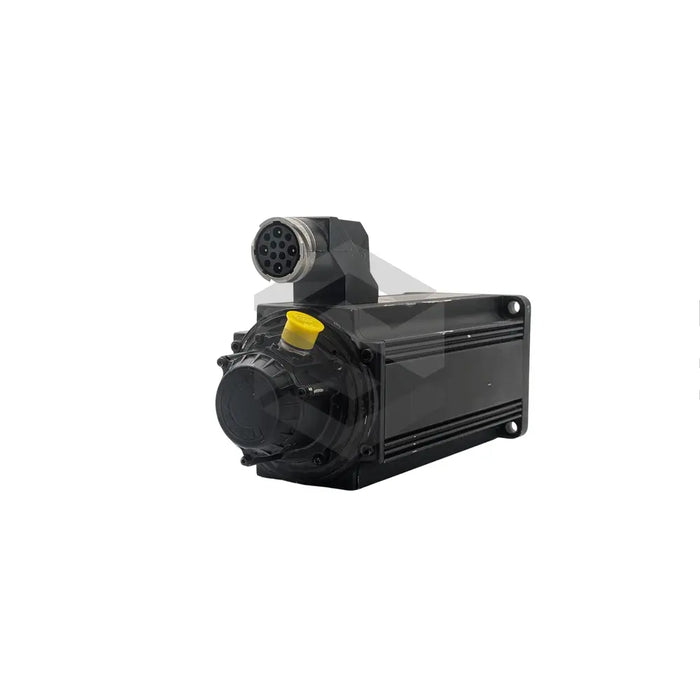

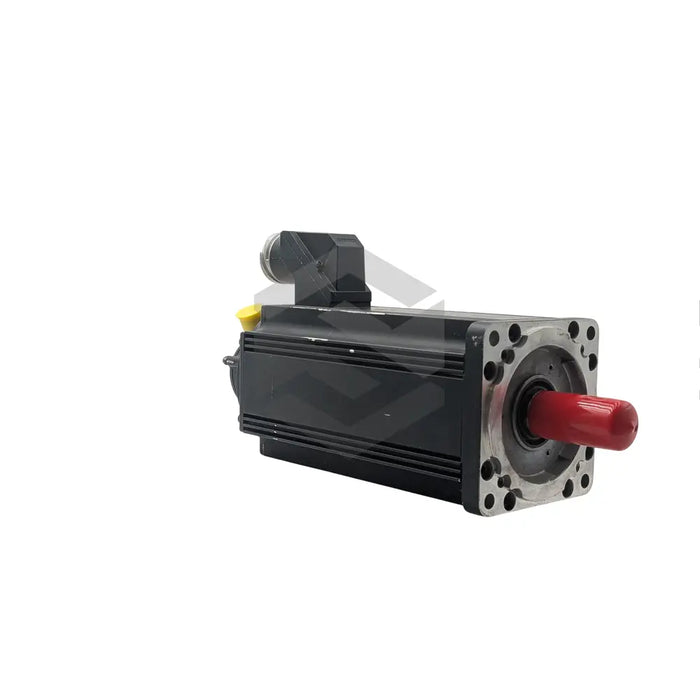

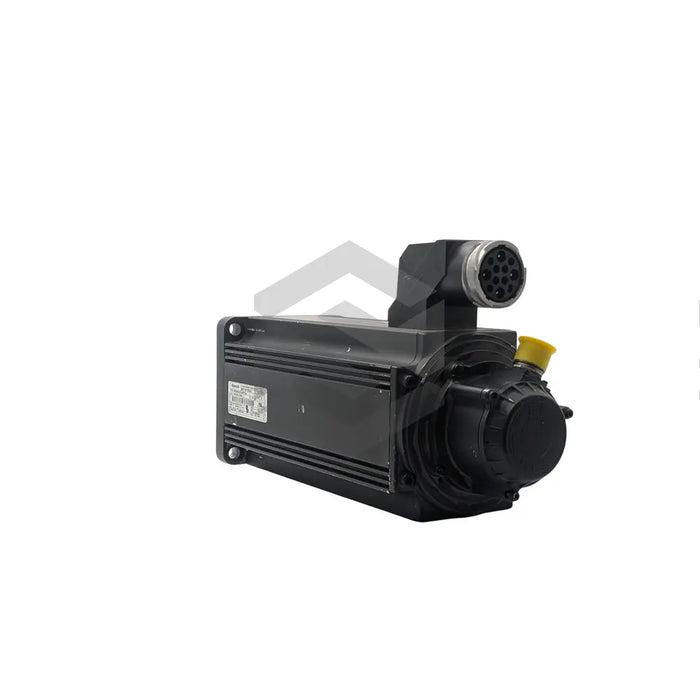

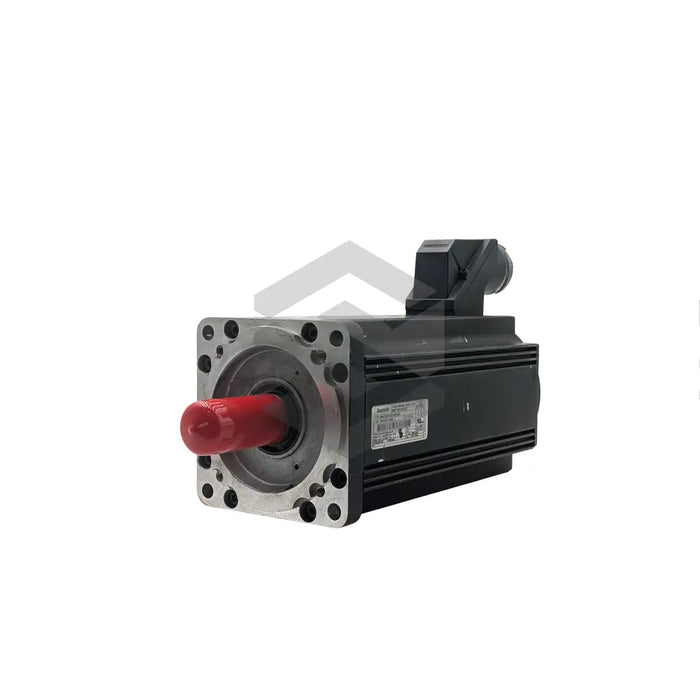

The R911288813 (MHD093B-058-NP1-AA) is an innovative product built by Bosch Rexroth Indramat, specialized in providing economical and efficient synchronous motors, converters, and sinusoidal filters. This model boasts superior efficiency when coupled with the designated modules and parts. It requires professional maintenance for maximum reliability. The product comes bundled with the MHD093 synchronous motor, with an attached 22 Nm blocking brake. This aids in the deceleration process by clamping the shaft. The brake operates at a standard voltage of 24 VDC, with a connection and disconnection period of 25 ms and 50 ms, respectively. The model also includes an axial/radial blower for surface cooling, functioning at an AC 115 - 230 V rated voltage. To deliver continuous torque of 5.4 - 15 Nm at 2500 - 4000 rpm, the MHD093 synchronous motor employs an AC 200 - 330 V power input. Its IP65-rated housing provides robust protection against dust and water.
Model R911288813 (MHD093B-058-NP1-AA) features state-of-the-art digital servo feedback. It utilizes an optical measurement technique to determine the shaft's relative position with an accuracy rate of ±0.5 angular minutes. A shaft with a keyway, designed for continuous power delivery, is furnished in this model. The motor also provides accessible cabling and speedy startup. It functions within an ideal environmental temperature range of 0 to +40 degrees Celsius, without any nominal data reduction. This synchronous motor (R911288813 (MHD093B-058-NP1-AA)) is readily available for order from Servo Supplier for direct delivery.
30 Day Warranty
