R911288990

Original price $19,842.54 - Original price $19,842.54
Original price
$19,842.54
$19,842.54 - $19,842.54
Current price $19,842.54
In Stock, Ships Today
Request a quote

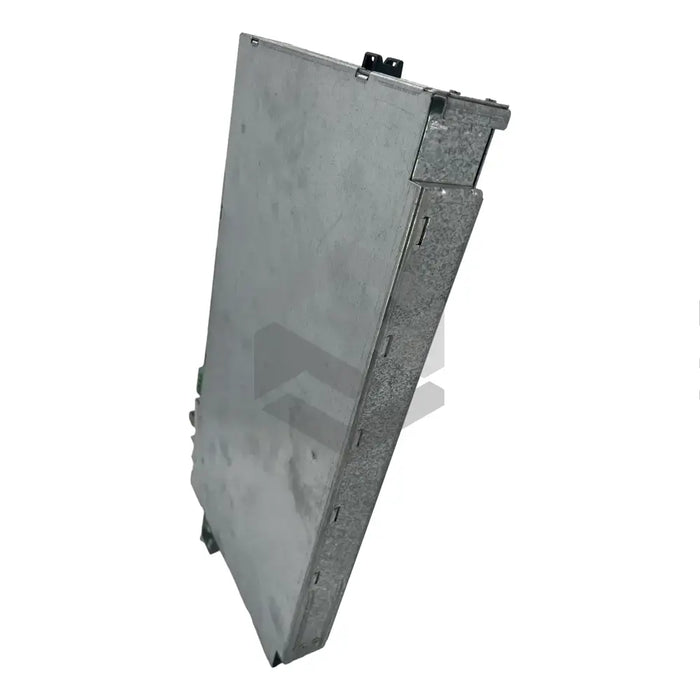

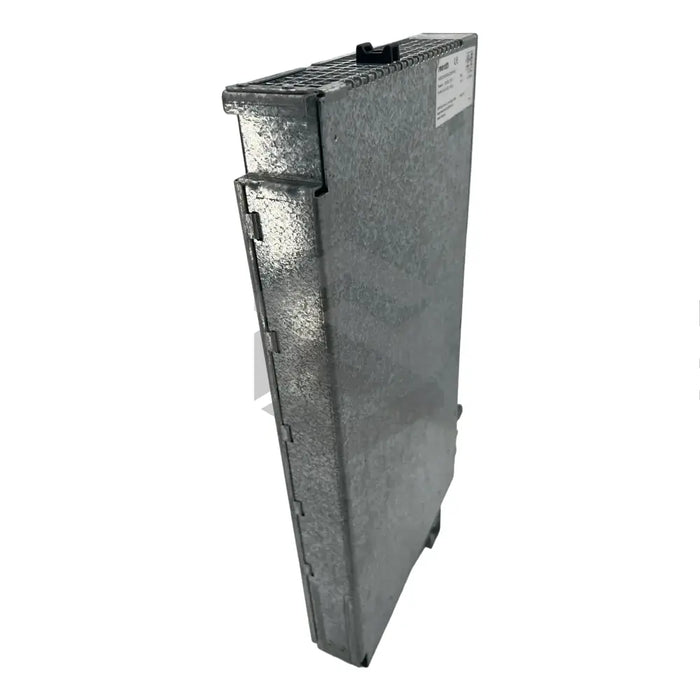

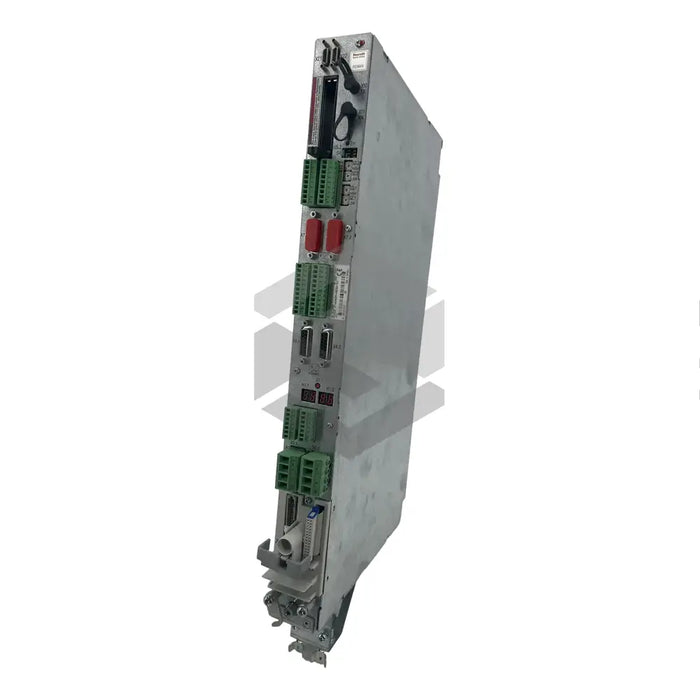

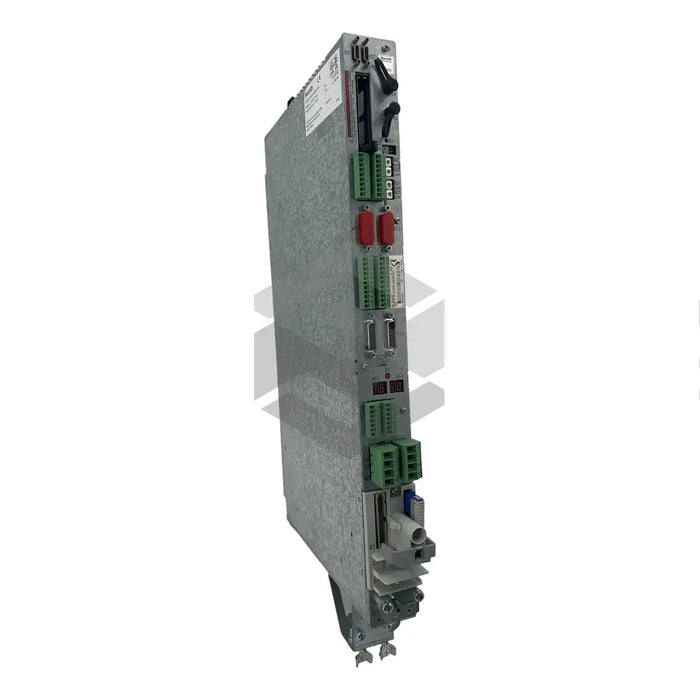

The R911288990 (HDD02.2-W040N-HD32-01-FW) is a premium quality drive controller designed and produced by Bosch Rexroth Indramat. This product is characterized by a 40 W power requirement for signal processing and a 110 W power loss per axis. Notably, it exhibits a continuous and peak current of 15/10 A and 40 A per axis respectively, and a rated current of 40 A. Weighing in at 8 kg, this controller offers IP 10 protection and functions best in an ambient temperature ranging from 5 to 45 degrees, and up to 1000 meters above sea level. The R911288990 (HDD02.2-W040N-HD32-01-FW) drive controller features class C insulation, and boasts a storage/transport temperature drawable from -30 to 85 degrees. Built with a modular design for flexible AC drives combination, it provides a compact solution using a solitary supply unit. Primarily, when integrated with ADP and MHP AC motors, it forms an efficient, rapid-response drive well-suited for use as a main and servo drive. This makes it a top choice for robotics, handling machines, and packaging applications. It requires connection to a HVE or HVR supply module to provide essential signal and power voltages, and to ensure effective cooling, a cooler set to 40 degrees or below is recommended. Additionally, an air duct is needed to collect condensation water, protecting the controller from potential water damage.
30 Day Warranty
Technical Specifications
  • Weight: 8 kg
  • Manufacturer: Bosch Rexroth Indramat
  • Air Duct Requirement: True.
  • Motor Compatibility: ADP and MHP motors
  • Power Consumption: 40W
