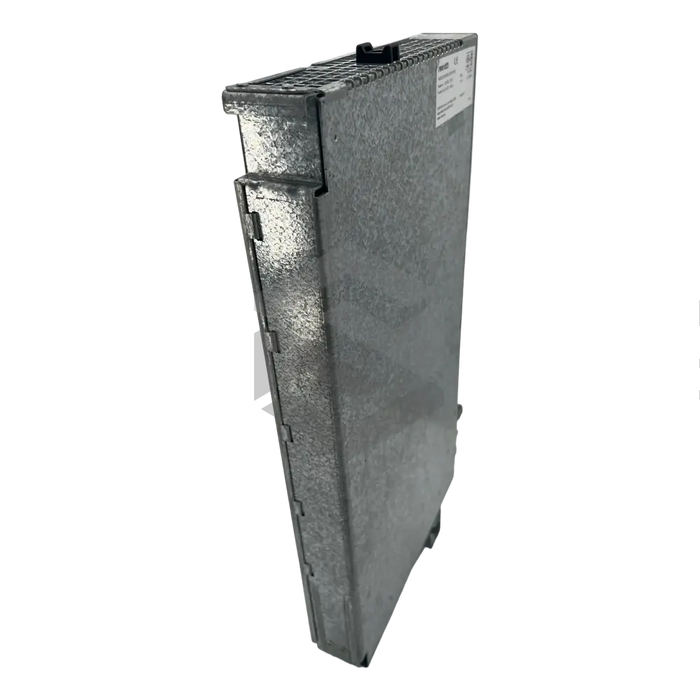

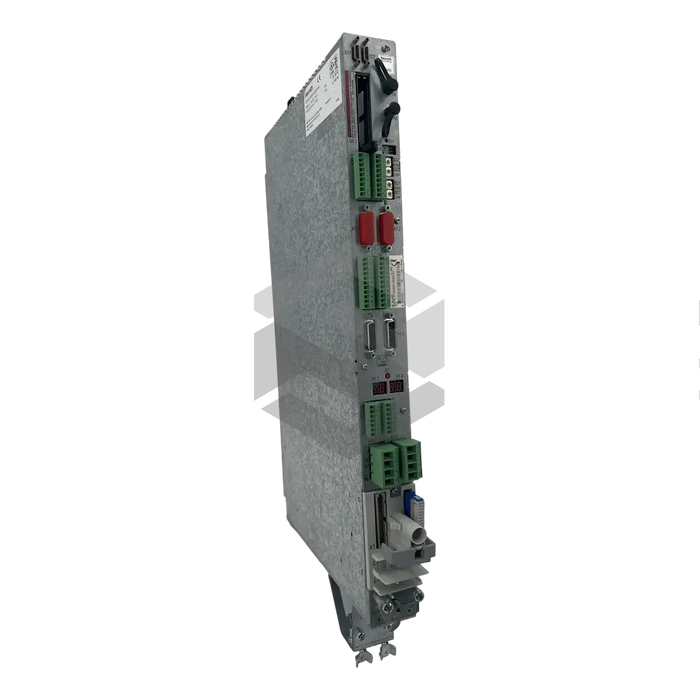

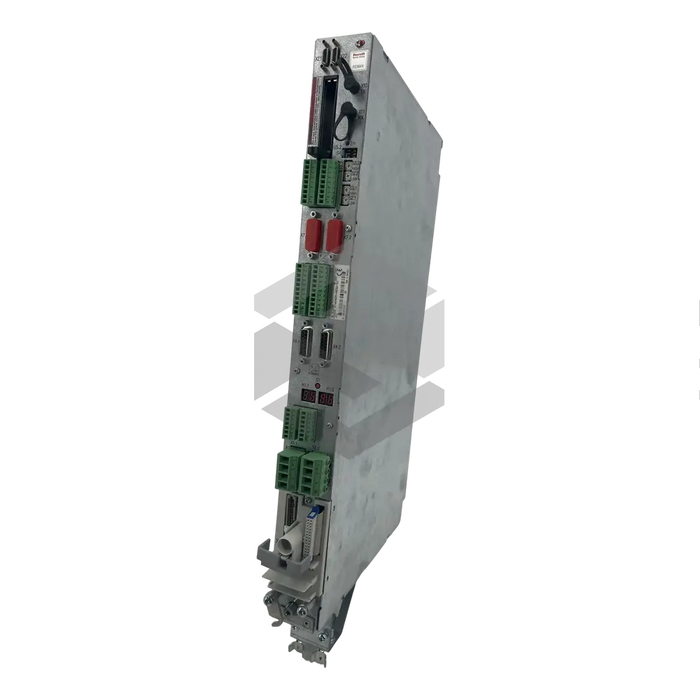

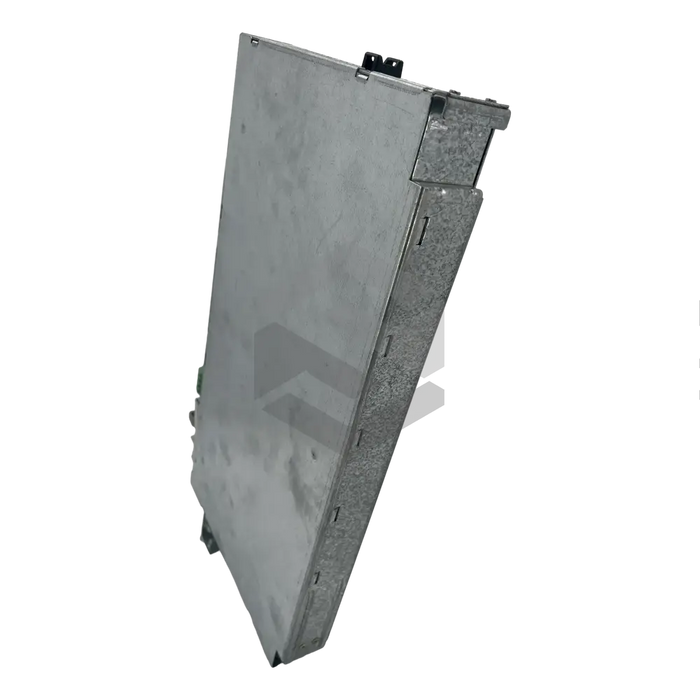

R911288990
The R911288990 (HDD02.2-W040N-HD32-01-FW) is a premium quality drive controller designed and produced by Bosch Rexroth Indramat. This product is characterized by a 40 W power requirement for signal processing and a 110 W power loss per axis. Notably, it exhibits a continuous and peak current of 15/10 A and 40 A per axis respectively, and a rated current of 40 A. Weighing in at 8 kg, this controller offers IP 10 protection and functions best in an ambient temperature ranging from 5 to 45 degrees, and up to 1000 meters above sea level.
The R911288990 (HDD02.2-W040N-HD32-01-FW) drive controller features class C insulation, and boasts a storage/transport temperature drawable from -30 to 85 degrees. Built with a modular design for flexible AC drives combination, it provides a compact solution using a solitary supply unit. Primarily, when integrated with ADP and MHP AC motors, it forms an efficient, rapid-response drive well-suited for use as a main and servo drive. This makes it a top choice for robotics, handling machines, and packaging applications. It requires connection to a HVE or HVR supply module to provide essential signal and power voltages, and to ensure effective cooling, a cooler set to 40 degrees or below is recommended. Additionally, an air duct is needed to collect condensation water, protecting the controller from potential water damage.
