R911289013

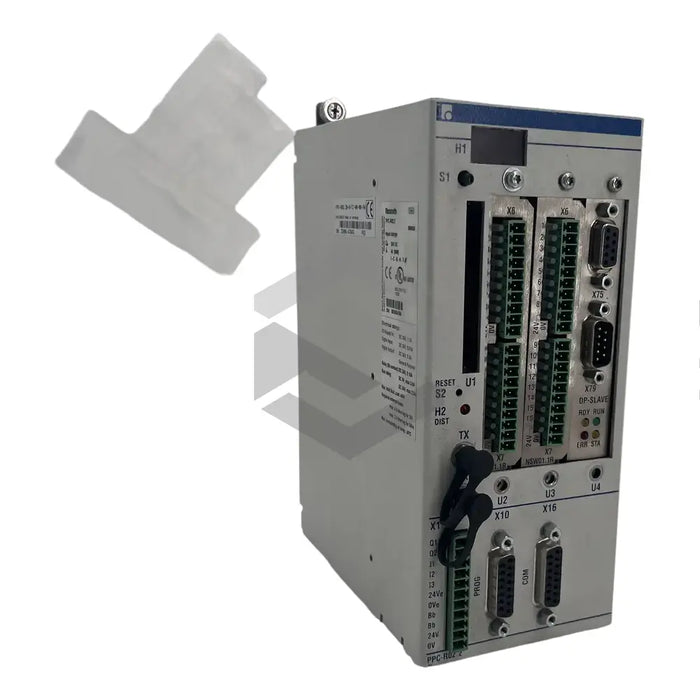

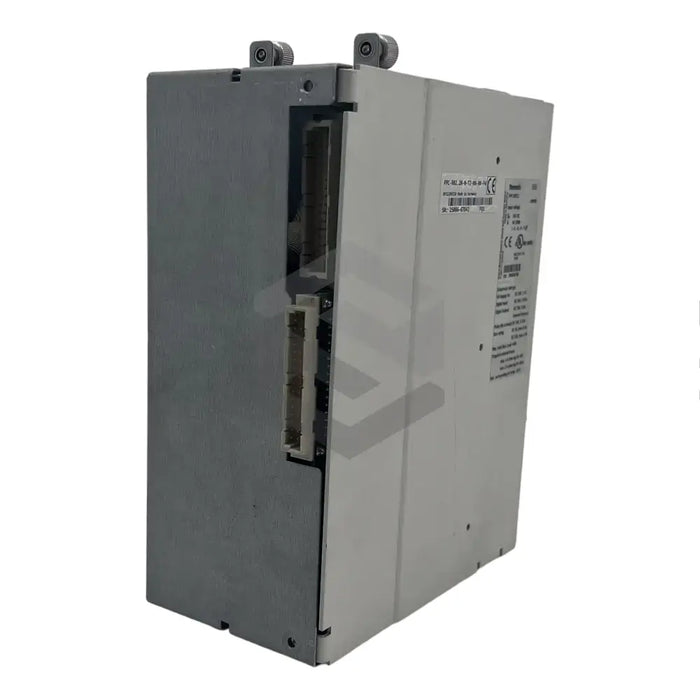

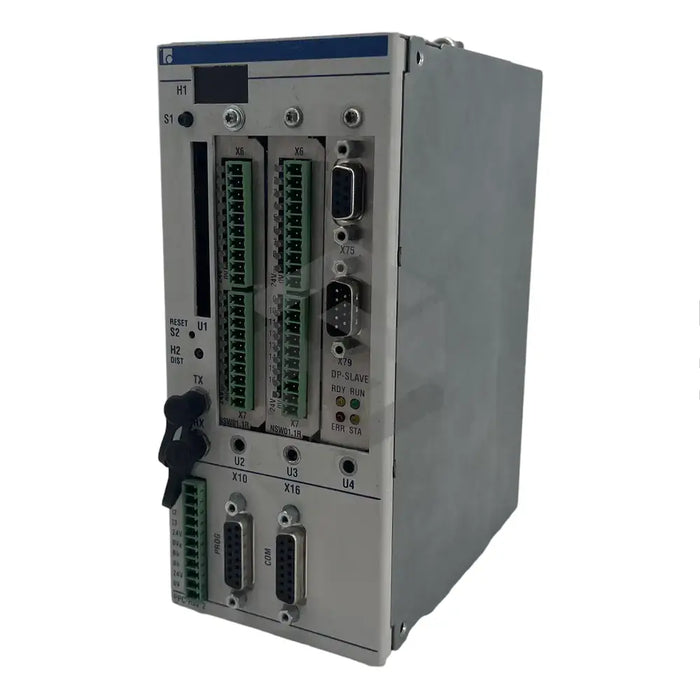

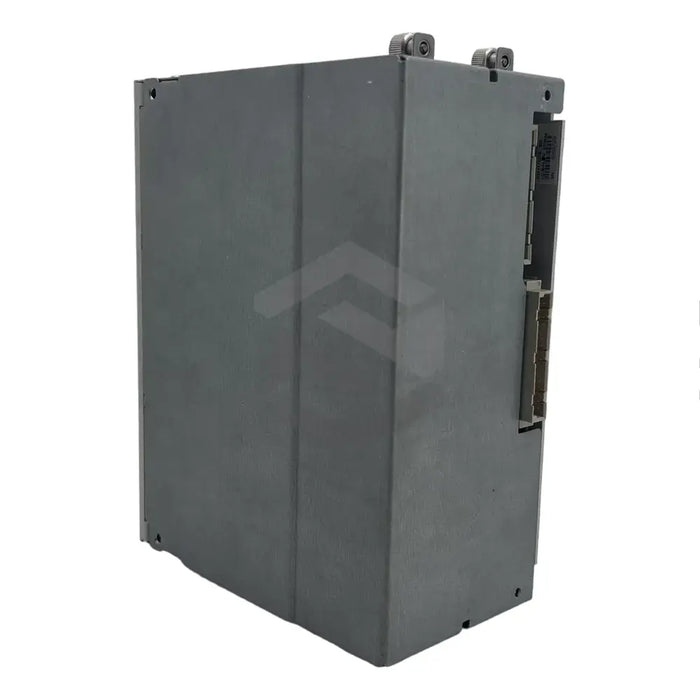

The Bosch Rexroth Indramat's CNC Module, R911289013 (PPC-R02.2N-N-N1-N2-P2-FW), belongs to the MTC200 series. For effective thermal management and proper functioning of components, it should be vertically integrated within the switch cabinet inclusive of the RMB02.2 sub-rack. The module occupies two slots on the rack and does not support a PC-card compatible 4MB PSM flash memory. It requires a lithium battery which is not included in the initial purchase. The S1 button, a significant feature, is used to switch displays or conduct operations.
The CNC module is geared with an H1 diagnostic display for troubleshooting faults and monitoring operational states. Its housing is designed as an 'R' type and the firmware includes numerous components such as boot loader/monitor, APR firmware, and CPU firmware. For safety and efficiency, no structural modifications should be made to the device and it should not be operated in a damaged state. Components and accessories must be original from the manufacturer. The CNC module, vastly used in machine tools, can be shipped globally through reliable courier partners. Its dimensions are 83.7 x 192 x 150mm and it weighs 1.3kg. It utilizes a COM interface for diagnosis and has a 24VDC power supply. It should be noted that the X11 PROG serial interface and X15 BT bus connection lack functionality.
