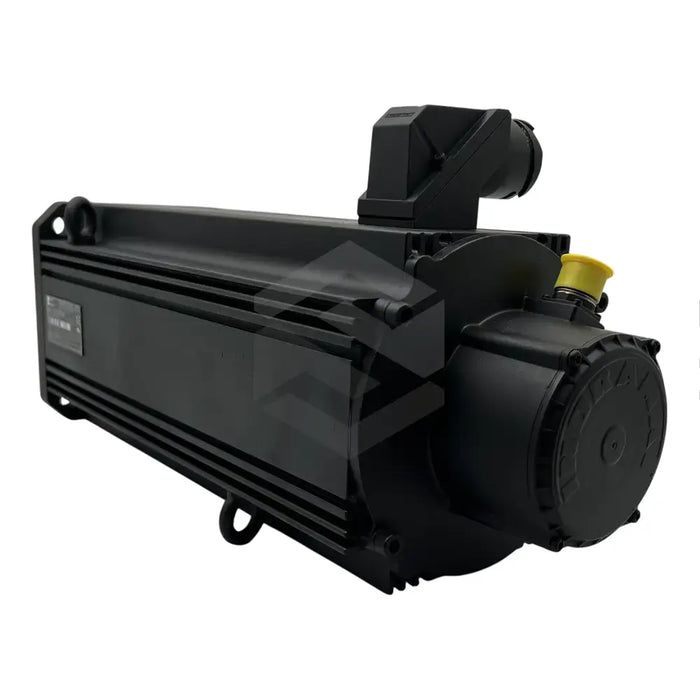

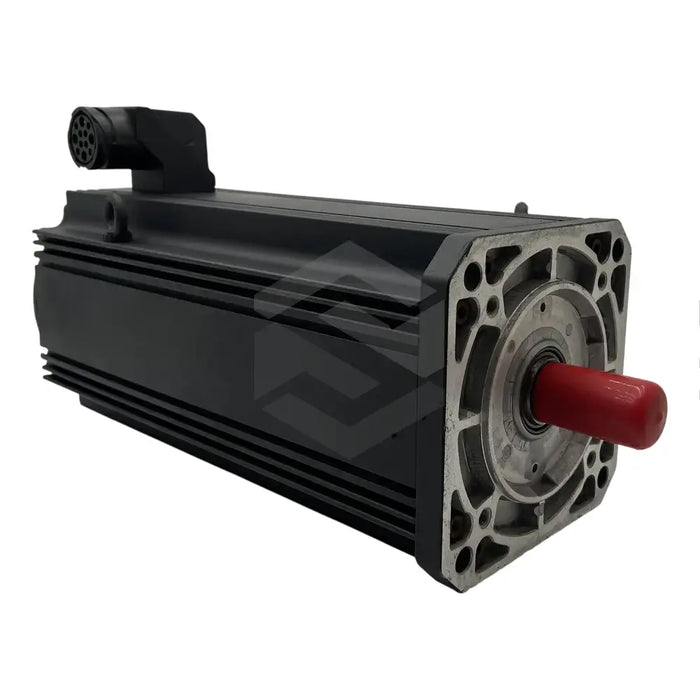

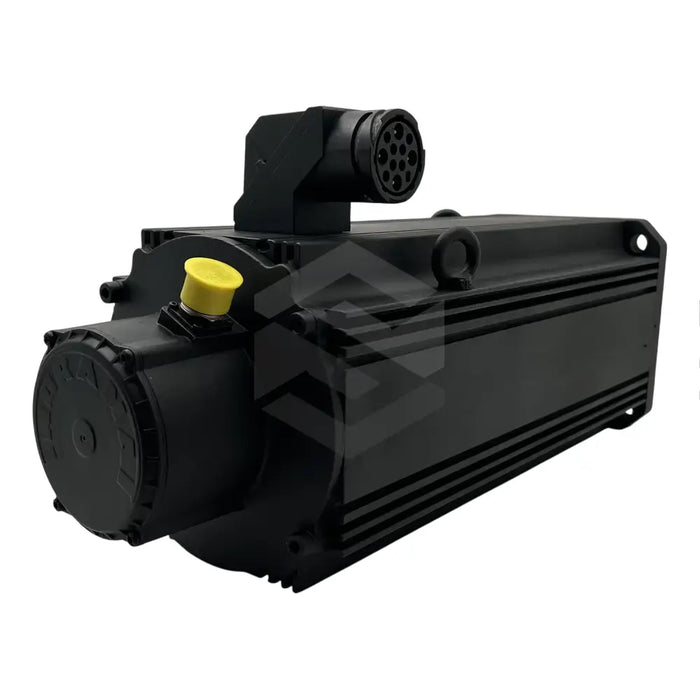

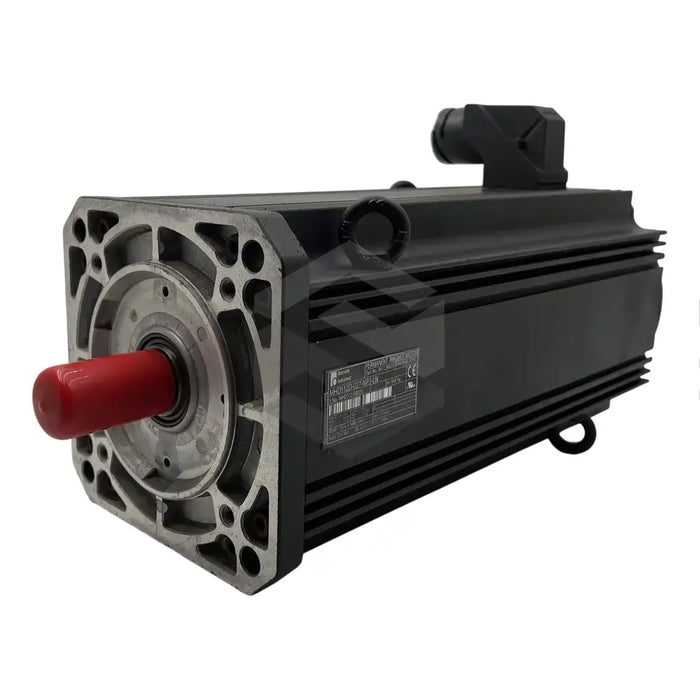

series image of a R911289059

R911289059

by Bosch Rexroth Indramat
$7,998.00 - $7,998.00
$7,998.00
$7,998.00 - $7,998.00
$7,998.00
Available, Shipping Varies
The R911289059 (MHD112D-027-NP3-LN), a product crafted by Bosch Rexroth Indramat, is a versatile piece of industrial machinery. It's part of a broad product line including synchronous motors, servo motors, spindle motors, drive controllers, control sections, inverter modules, and brake choppers. This innovative model features a dual-function housing design that supports both natural and surface cooling for effective heat dispersion. With an IP68 rated protective housing, painted black to resist weathering and corrosion, R911289059 (MHD112D-027-NP3-LN) guarantees durability. Capped at 100K temperature, it delivers a rated torque of 41.5 Nm, consuming a current of 20.7 A at a voltage of 331 V. The MHD112D synchronous motor comprises a key output shaft with a sealing ring to retain lubricant, thereby ensuring the machine runs smoothly. It features a left-side power connection in the housing, offering a winding resistance of 0.35 ohms and torque constant of 1.7 Nm/A at 20°C. R911289059 (MHD112D-027-NP3-LN) also integrates a 3.8 kilograms heavy holding brake that delivers a torque of 70 Nm at a rated current and voltage of 1.29 A and 24 V respectively. The motor can be operated at temperatures ranging from 0°C to +40°C, making it highly adaptable in different work environments.
30 Day Warranty
Technical Specifications
  • Power Connection: Left side
  • Moment of Inertia (Brake): 30 x 10-4 kgm2
  • Output Shaft: Keys with sealing ring
  • Housing Color: Black
  • Natural Cooling Voltage: 331 V
