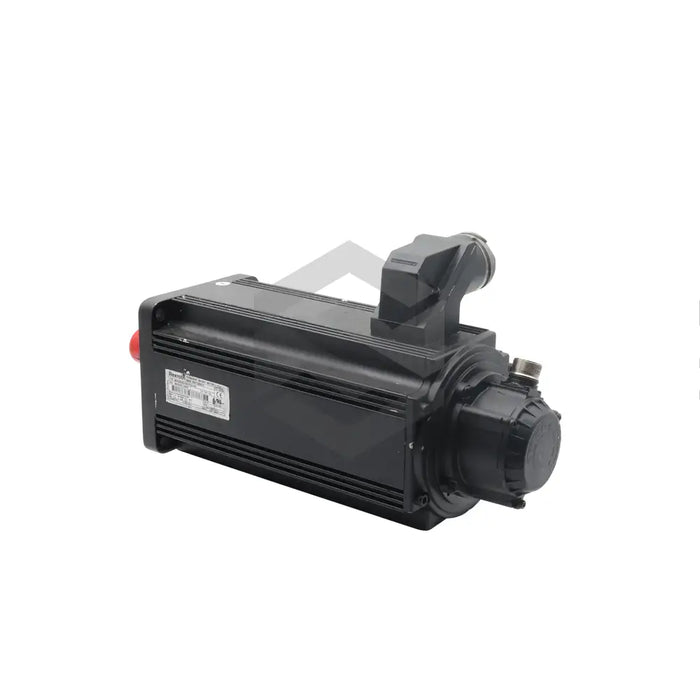

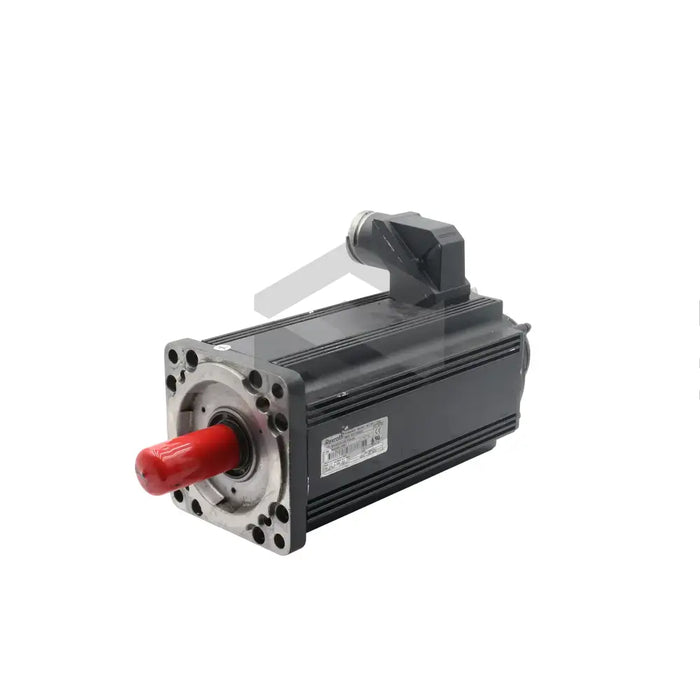

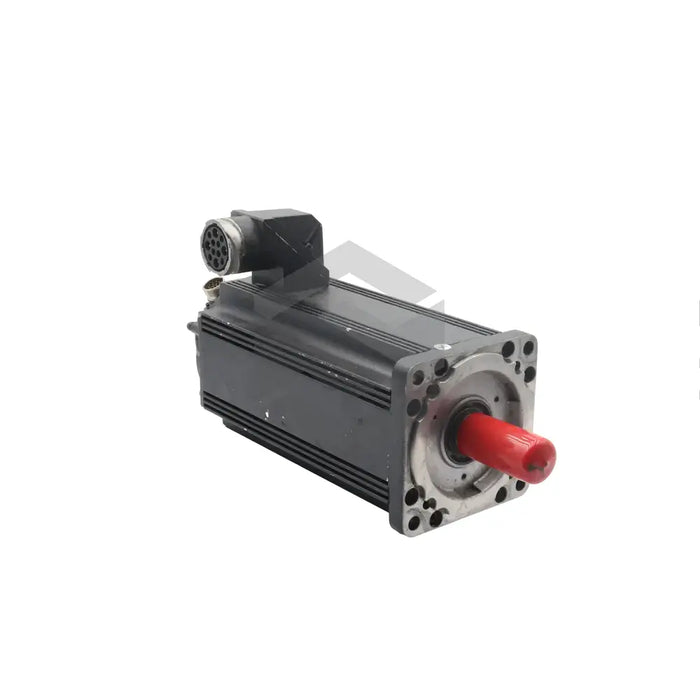

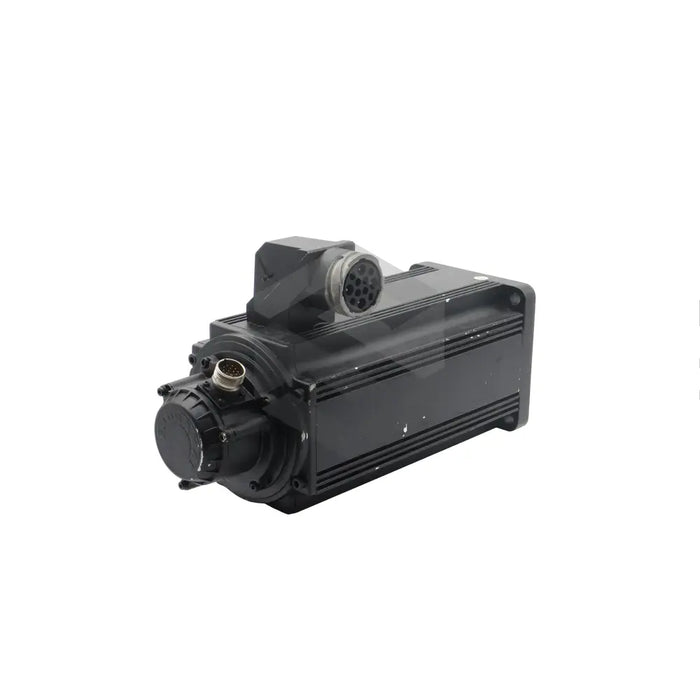

Bosch Rexroth Indramat's product, R911289311 (MHD093B-035-NP1-RN), is a high-performing motor that incorporates electronic commutation and distinctive magnets, leading to substantial reductions in maintenance expenses. Primarily suited for industries like publishing, textiles, and packing & processing, this highly economical engine employs a temperature control sensor to enable productive and efficient operations. It is widely recognized for its unique combination of high output and cost effectiveness, making it a sought-after choice among consumers.
Importantly, the R911289311 (MHD093B-035-NP1-RN) motor includes an integrated HSF encoder. This encoder communicates with the corresponding control drive, thereby facilitating efficient operation at the desired speed and position. The motor is equipped with a smooth shaft, a sealing ring, and a liquid-coolable housing type. It includes a holding brake with a 22 Nm torque. The motor is designed to withstand a maximum air temperature of 40°C and storage temperatures between -20°C and +80°C. The motor’s measurements, featuring a centring diameter of 130mm and 140mm/150mm flange size, are specified with the frame size designation of "093". Furthermore, the unit's length is indicated as B, denoting a continuous standstill torque of 17.5 Nm. Assembling the equipment to any machinery adhering to the DIN 42948 standards is straightforward, offering the flexibility of multiple possible mounting locations.
