R911290148

Original price $24,897.60 - Original price $24,897.60
Original price
$24,897.60
$24,897.60 - $24,897.60
Current price $24,897.60
In Stock, Ships 1 - 2 Days
Request a quote

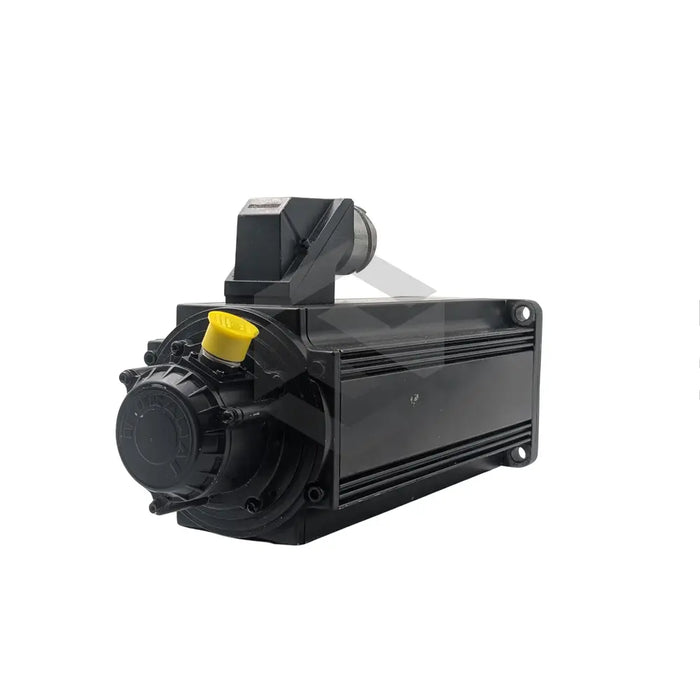

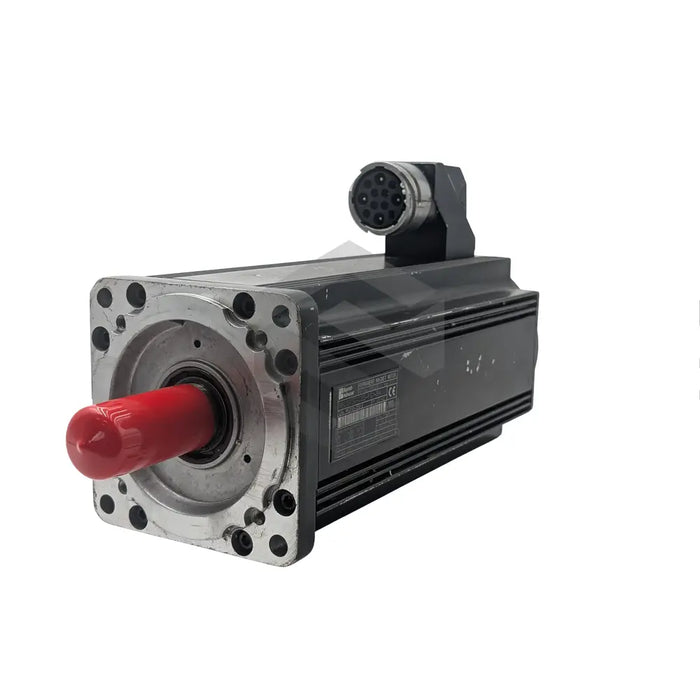

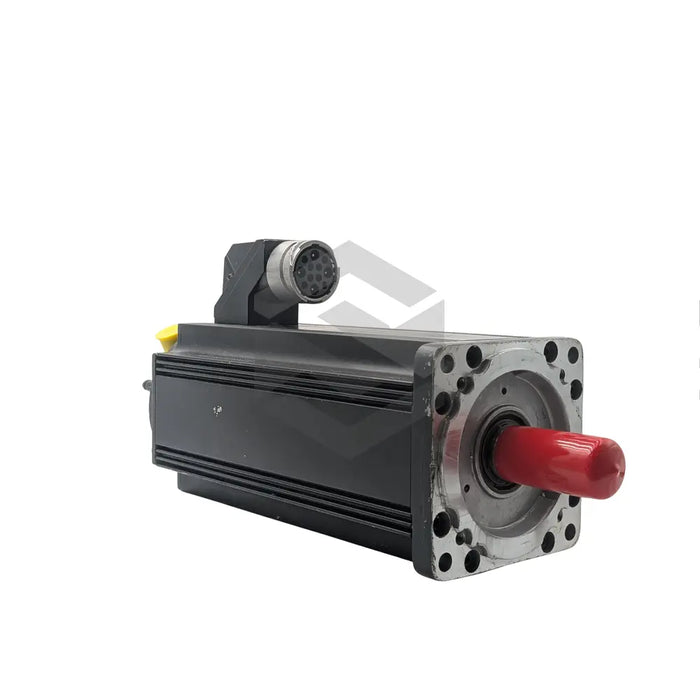

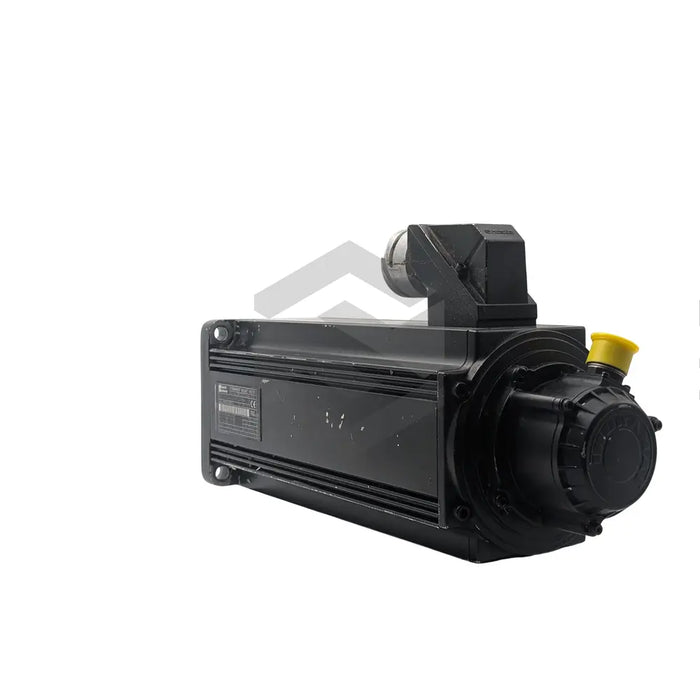

The R911290148 (MHD093C-058-NG1-BA), a synchronous servo motor manufactured by Bosch Rexroth Indramat, is part of the MHD product range. Equipped with integrated digital servo feedback, the motor is capable of communicating operational data to the drive controller to ensure motor parameters align with programmed functions. The servo motor also comes with a 22 Nm holding brake that prohibits shaft movement until it receives a release signal of 24 Volts DC. The housing design enables either natural convection or surface cooling. Environmental conditions, such as a temperature of 60 K, under natural convection offer a standstill rated torque and current of 23 Nm and 28.3 Amps, respectively. Moreover, it offers a rated torque of 7.9 Nm, current of 6.9 Amps, and speed of 2000 RPM. On the other hand, for a 100 K temperature condition with natural convection, the standstill rating reaches 28 Nm torque, 34.5 Amps current, with a rated torque of 9.1 Nm, current of 7.9 Amps, and speed of 3500 RPM. The completely enclosed motor housing and shaft seal ensure an IP65 protection rating, with the capability to operate at altitudes up to 1000 meters and temperatures between 0 to 40 degrees Celsius. The permissible temperature for motor storage rests between -20 to 80 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Housing Design: Natural convection or surface cooling
  • Heat Capacity 60k - rated current at standstill: 28.3 Amps
  • Feedback type: Integrated Digital Servo

  • Motor Power Connection:
    Side B of Motor Housing
  • Recommended Operating Temperature: 0 to 40 degrees Celsius
