R911290382

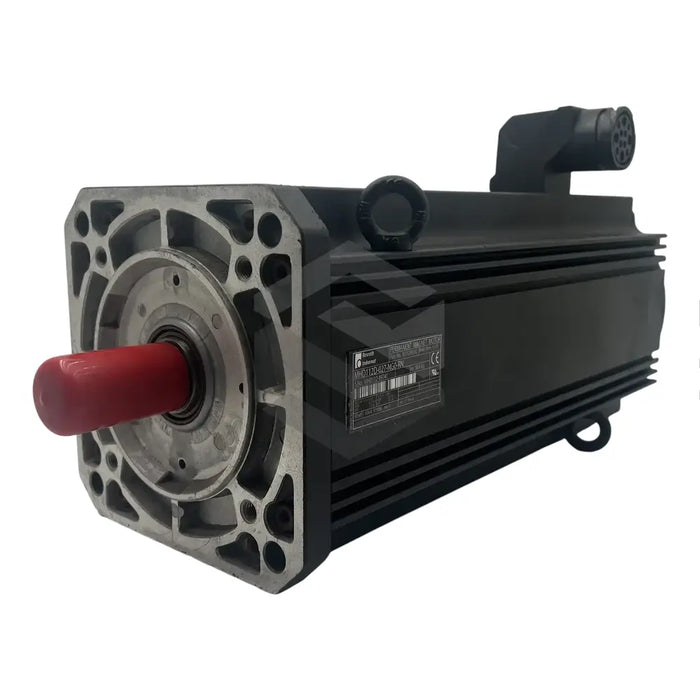

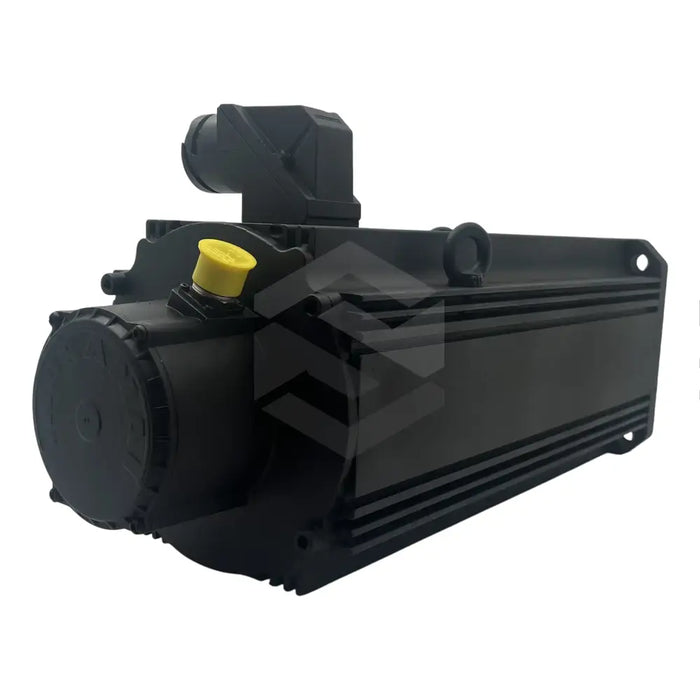

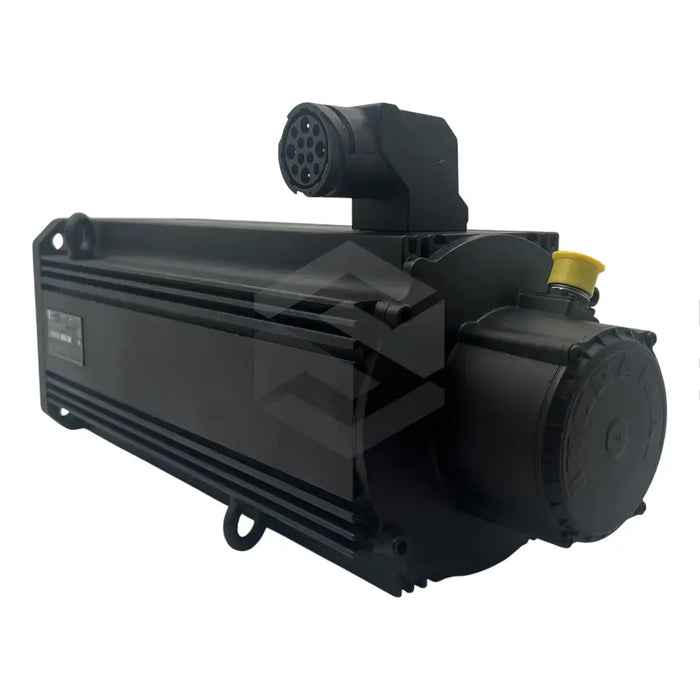

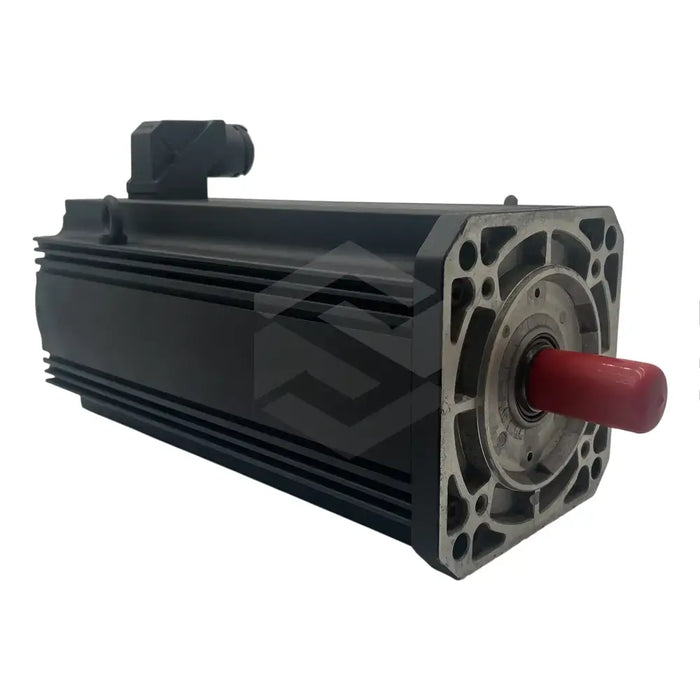

The Bosch Rexroth R911290382 (MHD112D-027-NG0-RN), a state-of-the-art industrial servo motor, is a product in the widely used MHD line. These motors, known for their high reliability and hassle-free operation, are capable of providing up to 250 Nm constant stall torque. They are compatible with numerous commercial and industrial applications such as handling automation, packaging, and printing machines. The MHD motors, including R911290382 (MHD112D-027-NG0-RN), boast notable features. These include easy cabling, simple machine attachment, robust overload protection, and operational capability under harsh conditions. The motors also have a built-in data memory in the encoder for quick startup.
The design of the R911290382 (MHD112D-027-NG0-RN) incorporates a housing conducive to both natural convection and surface cooling. For natural convection, the continuous stall torque is 48 Nm at 60K overtemperature and 57 Nm at 100K overtemperature. Meanwhile, it is 72 Nm at 60/100K overtemperature with surface cooling. Furthermore, it has a right-side power connector while the main shaft is plain with a sealing ring. The drive controller supplies power to the motor and depending on the cooling method and temperature, it requires a power cable with a cross section of either 2.5 mm2, 4 mm2 or 6 mm2. The R911290382 (MHD112D-027-NG0-RN) weighs 56 kilograms.
