C image of R911290837 | Main (Front Left)

R911290837

by Bosch Rexroth Indramat
$9,307.70 - $15,728.20
$9,307.70
$9,307.70 - $15,728.20
$9,307.70

In Stock, Ships 1 - 3 Days

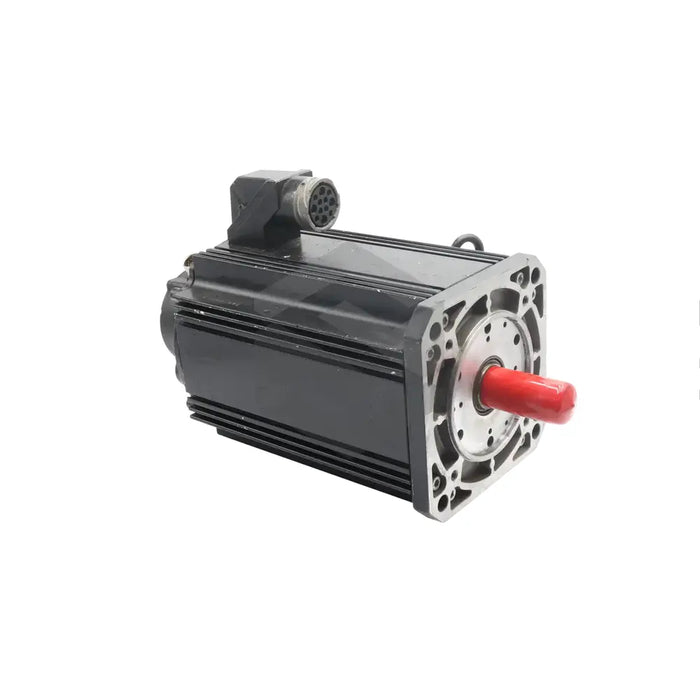

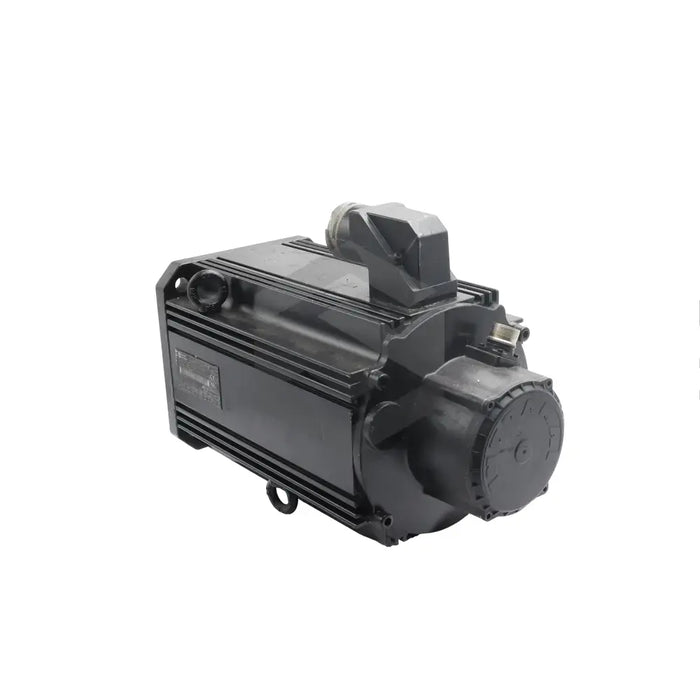

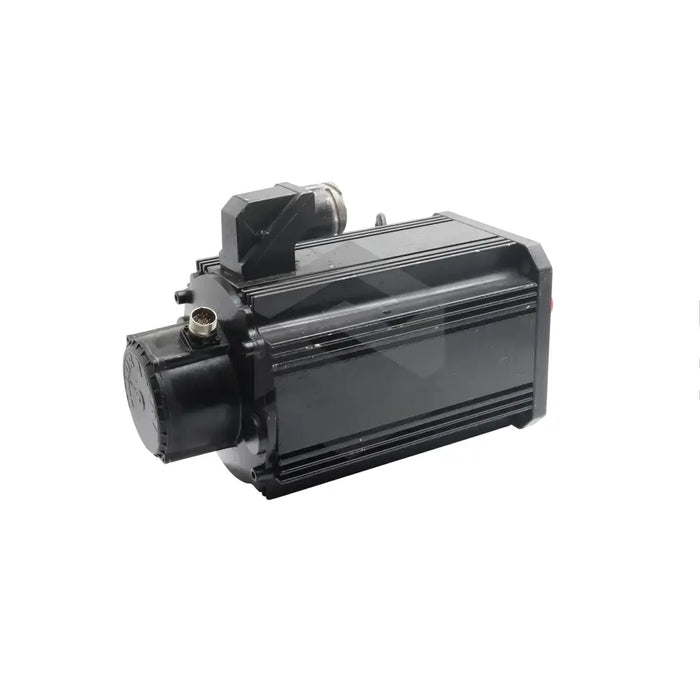

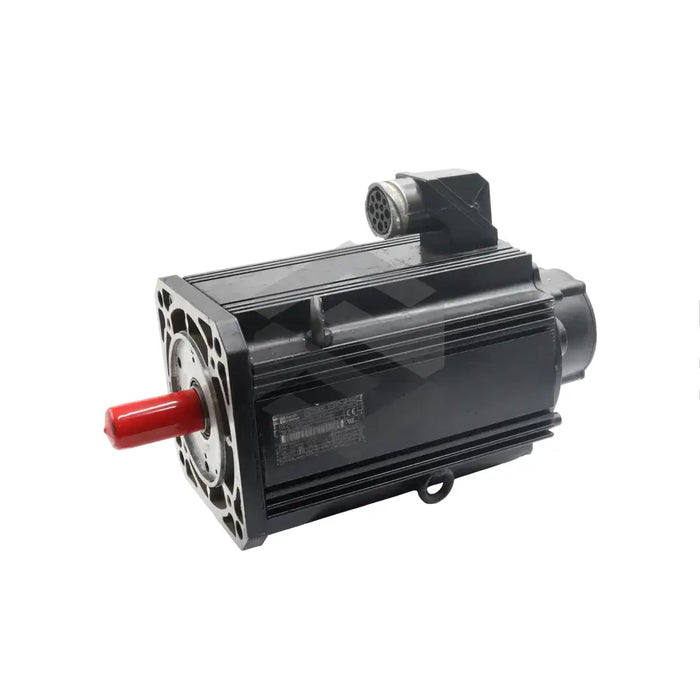

The R911290837 (MHD112B-048-NP1-AN) is a MHD series servo motor produced by industry leader Bosch Rexroth Indramat, specifically designed for various industrial applications. This motor has an integrated 22 Nm holding brake, digital servo feedback, a shaft with key and sealing ring, and a specially designed housing appropriate for both surface cooling and natural convection. Connection to a drive controller powers the motor, utilizing a power cable with recommended cross-sections of 4 mm2 (for natural convection) and 6 mm2 (for surface cooling). The servo motor offers a rated speed of 2800 RPM, an impressive maximum speed of 4500 RPM, a peak current output of 160 Amps, and a remarkable maximum torque output of 102 Nm. The holding brake of the R911290837 (MHD112B-048-NP1-AN) operates effectively at 24 Volts DC, consuming a meager 0.71 Amps. The brake connects in 25 milliseconds and disconnects in 50 milliseconds. The total weight of the servo motor is 34 kilograms, with the holding brake having a weight of 1.1 kilograms. The motor presents dimensions including a 192mm flange size, 130mm centering diameter, 32mm shaft diameter, and 375mm motor length. Its protected housing (IP65 category) and matte black surface makes it perfect for installation near operational machinery. However, handling of the R911290837 (MHD112B-048-NP1-AN) motor and related equipment should be performed by trained personnel only.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Minimal Power Cable Cross-Section for surface cooling

6 mm2

Holding Brake

22 Nm

Protection Category

IP65

Motor Mounting

Four 14-millimeter holes on Motor Flange

Minimal Power Cable Cross-Section for natural convection

4 mm2
