R911290859

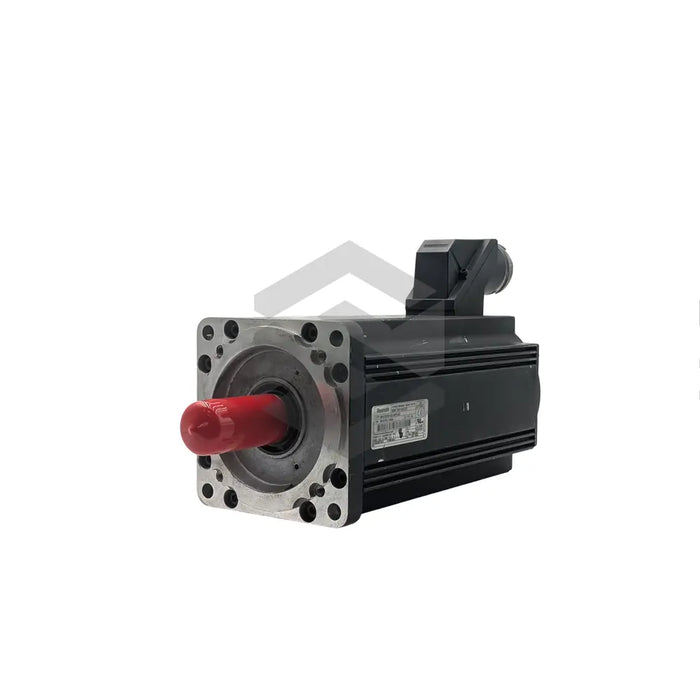

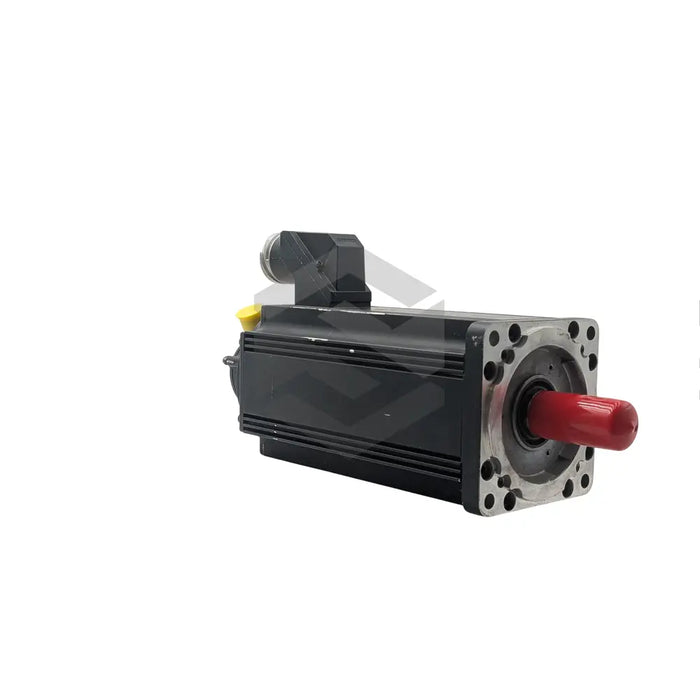

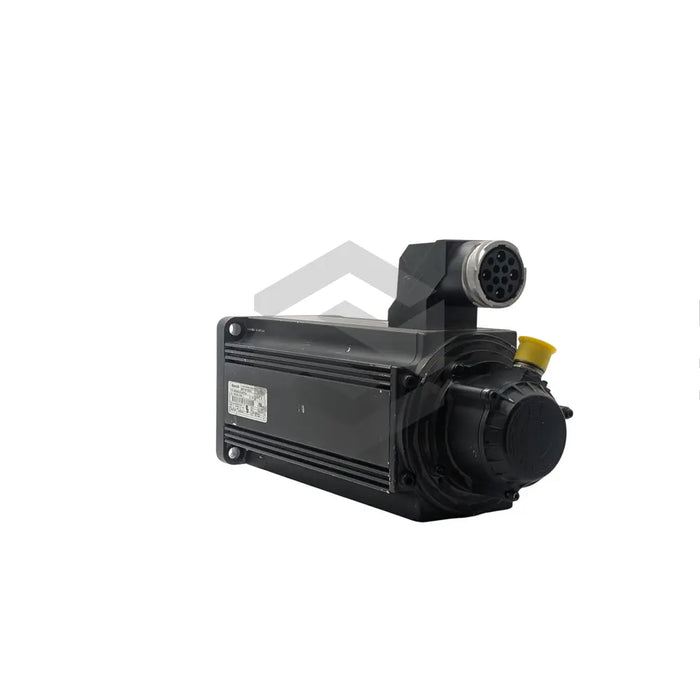

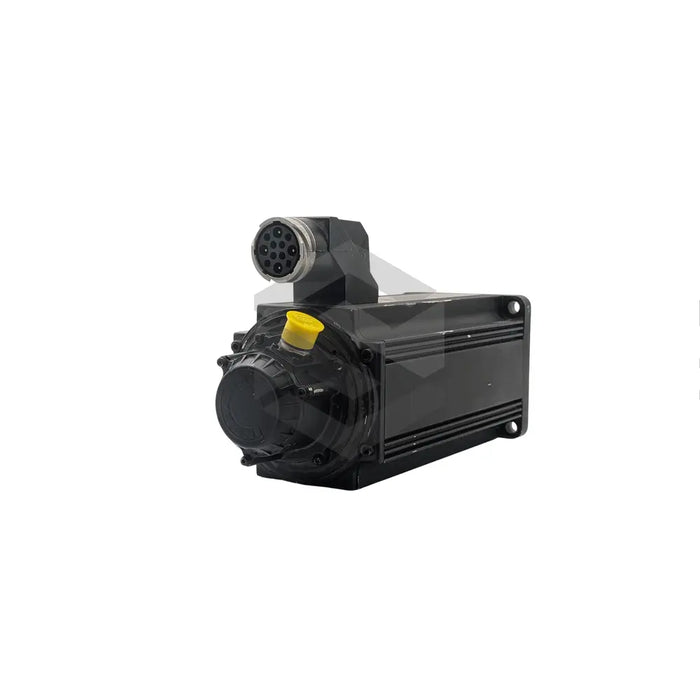

Product R911290859 (MHD093B-058-NP1-BA), manufactured by Bosch Rexroth Indramat, offers a range of benefits for those in need of a strong, reliable motion control system. Known for its high-torque capabilities, the MHD093 synchronous motor is utilized globally to establish rapid-response motion manipulation capabilities. The MHD093's notable features include a smooth torque transmission and near-constant start-stop functionality, provided by a 24VDC clamping brake. Despite intense loading conditions, the motor demonstrates resilience, thanks to its brushless configuration and IP65 protection ranking.
Known for its wide-ranging application potential, the MHD093 synchronous motor can be used in machine tools, printing machines, food processing equipment, and textile devices. It produces a continuous torque of 5.4 – 15 Nm and consumes 4.9 – 13.6 A for continuous current. With a thermal time constant of 30 – 60 minutes and standard insulation class F, it has the ability to perform at 1.7 – 4.1 kW under natural convection and at 7.6 kW under natural cooling. Its 4-pole pairs motor has a voltage constant of 79 V/1000 rpm and a torque constant of 0.87 Nm/A. Despite its high performance, the motor is manageable, with an overall weight of 19 kg, excluding the holding brake and accessories.
