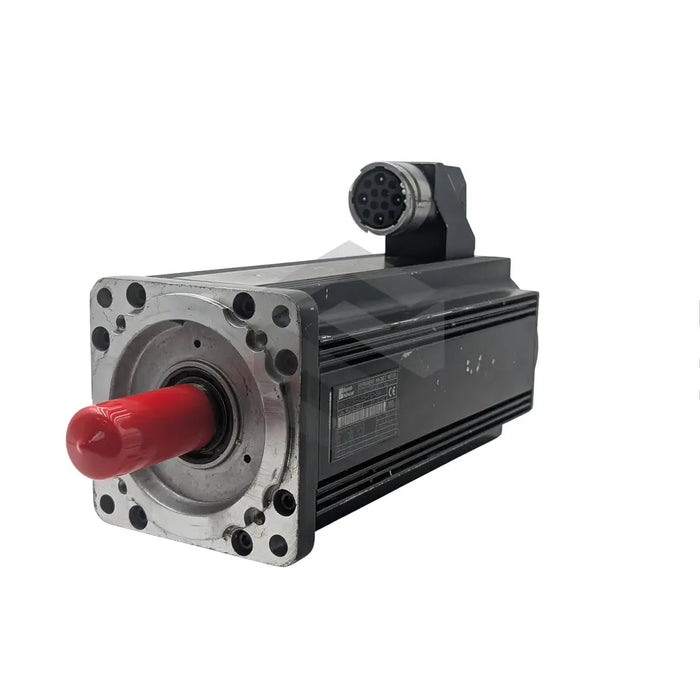

C image of R911290882 | Main (Front Left)

R911290882

by Bosch Rexroth Indramat
$11,782.10 - $23,777.60
$11,782.10
$11,782.10 - $23,777.60
$11,782.10

In Stock, Ships 1 - 3 Days

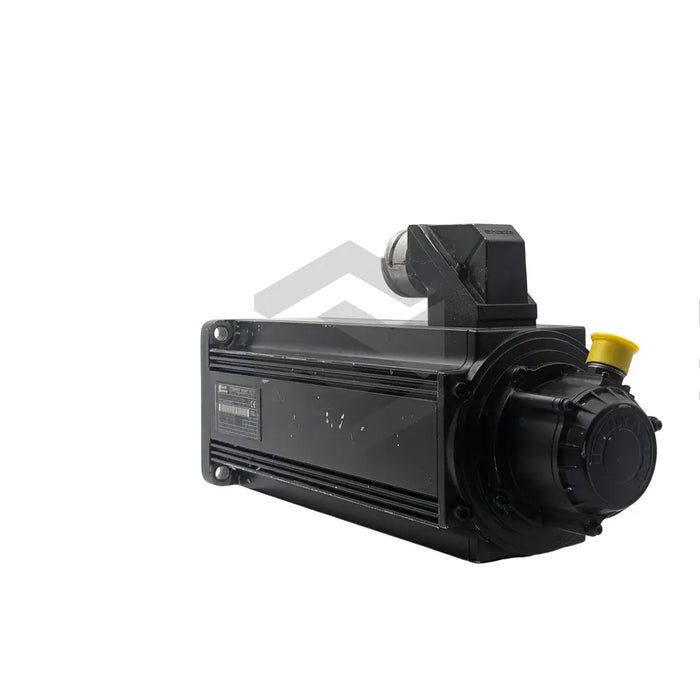

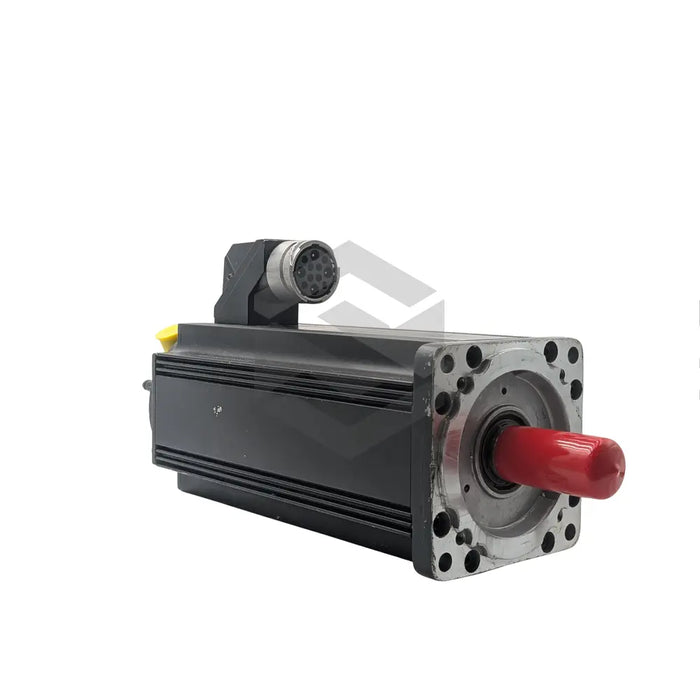

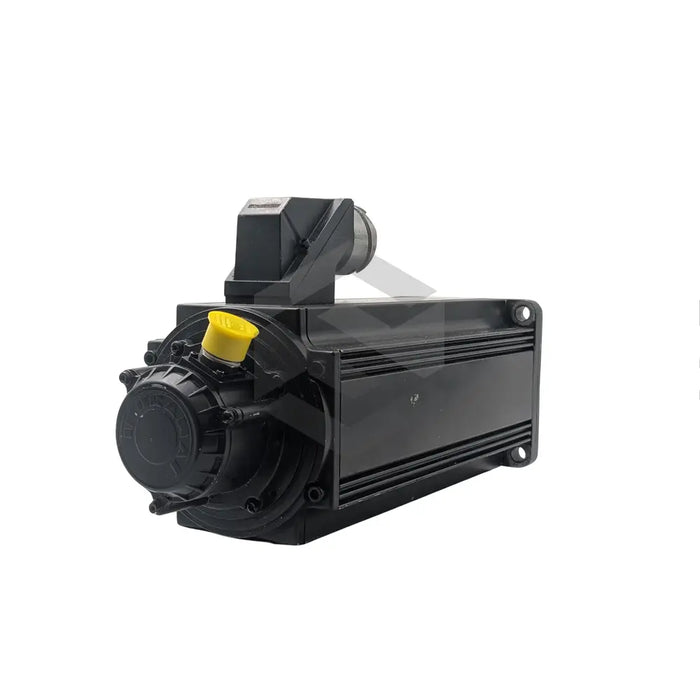

The R911290882 (MHD093C-058-PP1-LA) is an AC motor product engineered by Bosch Rexroth Indramat, part of the reputable MHD motor series. It is renowned for exceptional performance in industries such as machine tools, packaging, textile machinery, transfer systems, and handling equipment. The motor's design highlights include high power performance, dynamic operational efficiency, maintenance-free functioning, and overload safeguarding features. Attributing to its simple setup and operational effectiveness, the R911290882 (MHD093C-058-PP1-LA) stands out as an ideal pick for frequent stop-start applications. The R911290882 (MHD093C-058-PP1-LA) encompasses an additional holding brake feature for effective axis control when unpowered, and a unique surface cooling option adds versatility in addition to the standard natural convection cooling system. The digital feedback system, optical measurement system, and incorporated multiturn absolute encoder enhance its precision and reliability. It delivers position resolution of 512 x 213 per revolution, over 4096 revolution absolute position detection, and an angular accuracy of ±0.5 angular minutes. This model operates at a rated speed of 4000 RPM with motor phase current of 20 Amps. Its thermal time constants are dependent on the cooling method - approximately 75 minutes with natural convection and 35 minutes for surface-cooled units. The average weight of the R911290882 (MHD093C-058-PP1-LA) is 23.5 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product ID

MHD093C-058-PP1-LA

Measuring Principle

Optical

Product Type

Digital AC Motor

Rated Speed

4000 revs per minute

Thermal Time Constant (Surface Cooling)

35 minutes
