R911291444
Original price
$20,901.81
-
Original price
$20,901.81
Original price
$20,901.81
$20,901.81
-
$20,901.81
Current price
$20,901.81

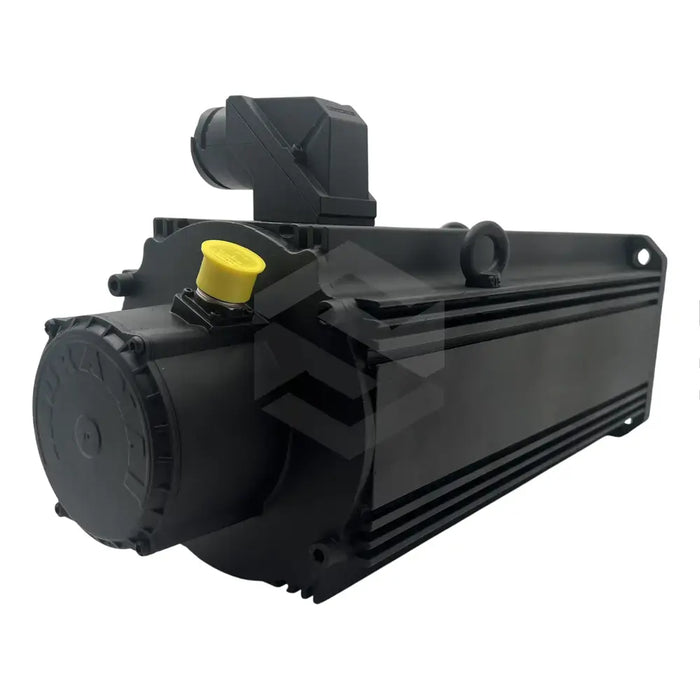

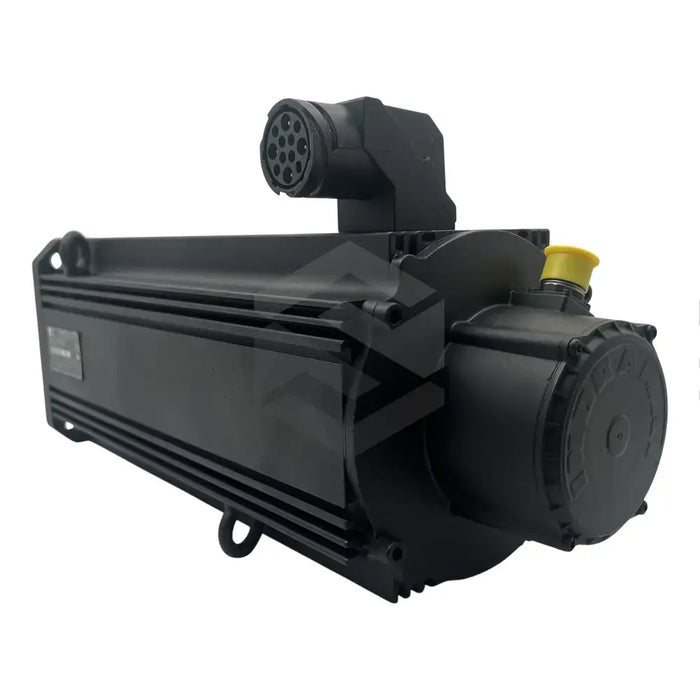

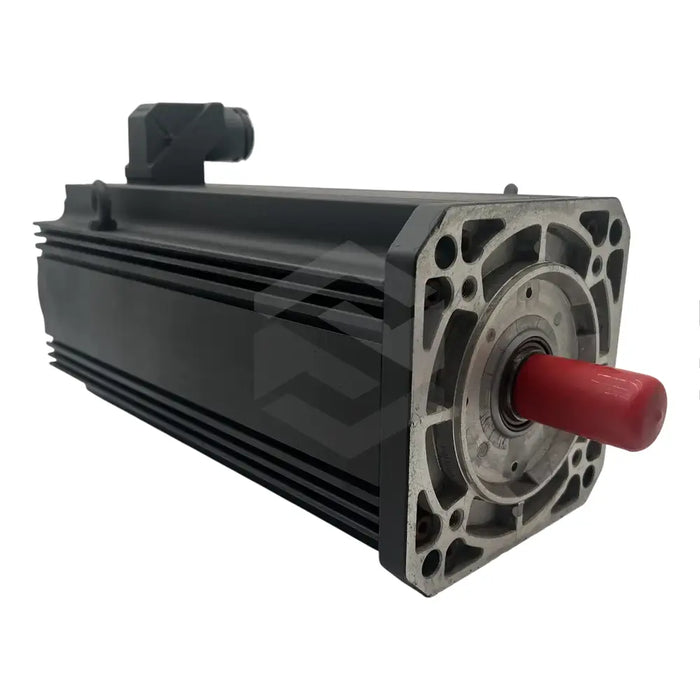

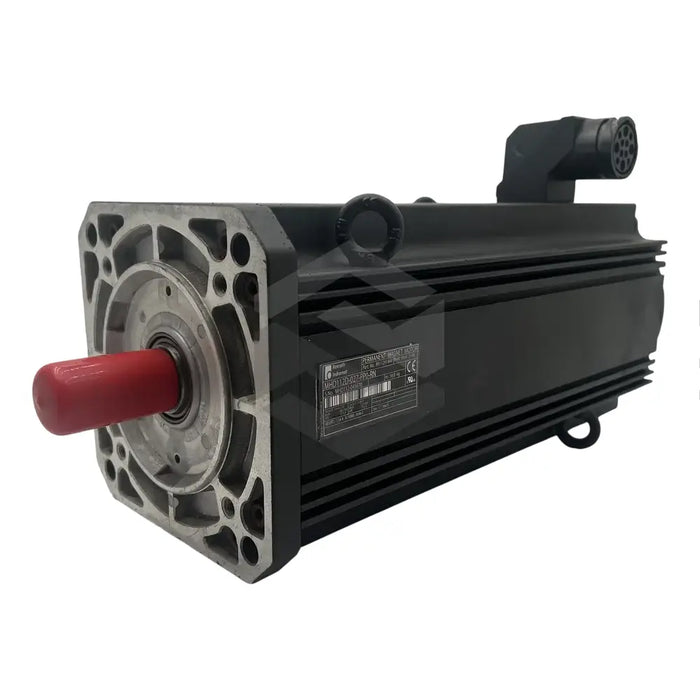

The R911291444 (MHD112D-027-PP0-RN), crafted by the esteemed Bosch Rexroth Indramat, is a component of exceptional importance in automated machines and motion control systems. Its design is marked by an output shaft secured with a sealing ring. This ring prevents the seeping in of fluid when the motor is aligned according to the IM V3 design. Renowned for its F class insulation and IP68 protection certification, the MHD112D synchronous motor ensures maximum defense against dust and powerful jets of water. It operates at an impressive power of 15.2 during surface cooling, with a rated frequency of 133 Hz and rated current of 27.6 A. Other crucial specifications include winding inductivity of 5.65 mH, resistivity of 0.35 ohms, and moment of inertia of 350 x 10-4 kgm2. When at rest, the motor produces a consistent torque of 57 Nm.
The motor, weighing in at 56 kilograms, boasts a power connection positioned on the motor housing's right side, catering to both natural and surface cooling. The duration of its thermal time constant is 40 minutes for surface cooling, and 90 minutes for natural cooling. It is equipped with digital servo feedback and incorporates a multiturn absolute encoder. To maintain peak functionality, the R911291444 (MHD112D-027-PP0-RN) must operate within specified environmental conditions.
30 Day Warranty
