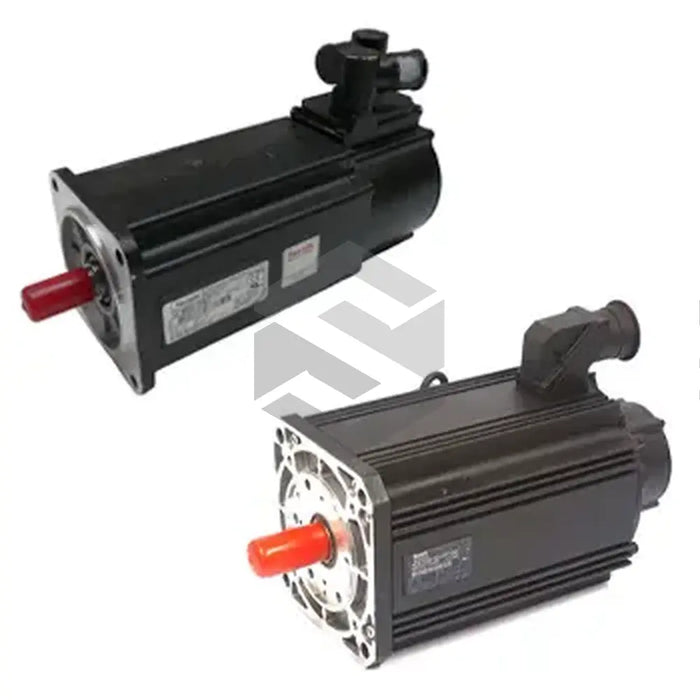

The R911291796 (MHD112C-035-PP0-BN), a product by Bosch Rexroth Indramat, is a maintenance-free synchronous servo motor from the MHD series. These motors are expertly designed with permanent magnets and exhibit low inertia, offering high operational reliability. The MHD series are ideal for various industries, including machine tools, printing, paper, handling and automation systems, and packaging and food processing.
The servo motor model R911291796 (MHD112C-035-PP0-BN) boasts a flange size of 192mm and a centering diameter of 130mm. Its electronic commutation allows for continuous start-stop operations with high repeat frequencies. The motor's high overload capability is due to efficient dissipation of heat from its stator windings to the housing walls, protected by thermal sensors from damage due to excessive heat. Its seamless design ensures the motor is impervious to dust, solid materials, or water jets and is rated IP 65 as per EN 60529, certifying safe usage in harsh environments. The servo motor is equipped with digital servo feedback and an integrated multiturn absolute encoder that preserves the absolute axis position, irrespective of voltage switch off. Operating at a nominal speed of 2,500 revolutions per minute, it can reach a maximum speed of 4,000 revolutions per minute, and requires a peak current of 139.5A.
30 Day Warranty
Technical Specifications
