R911292011

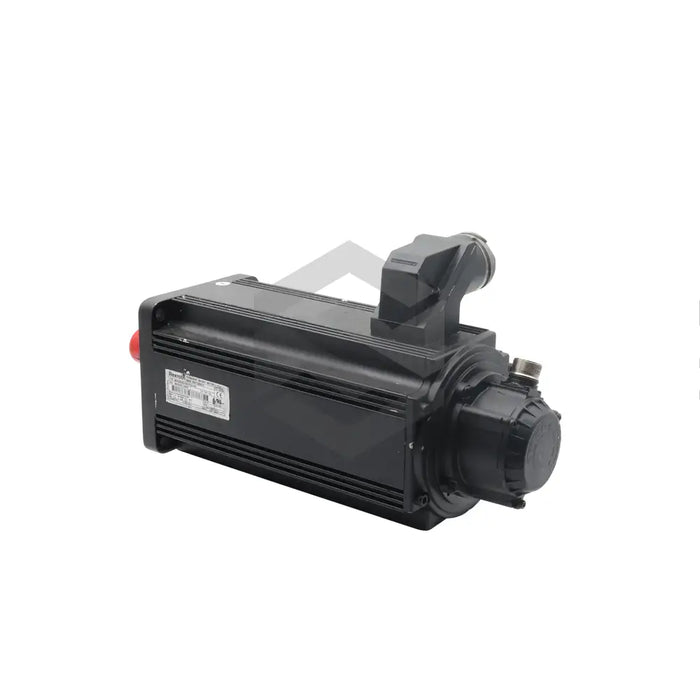

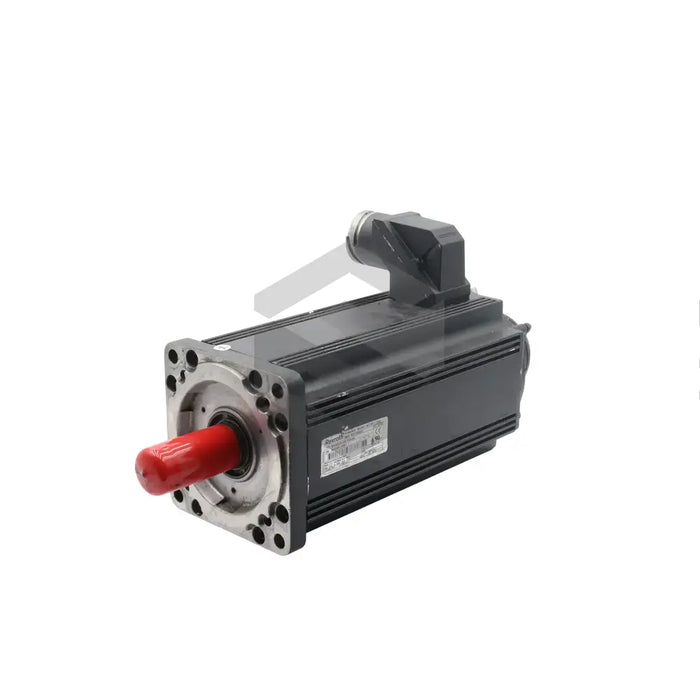

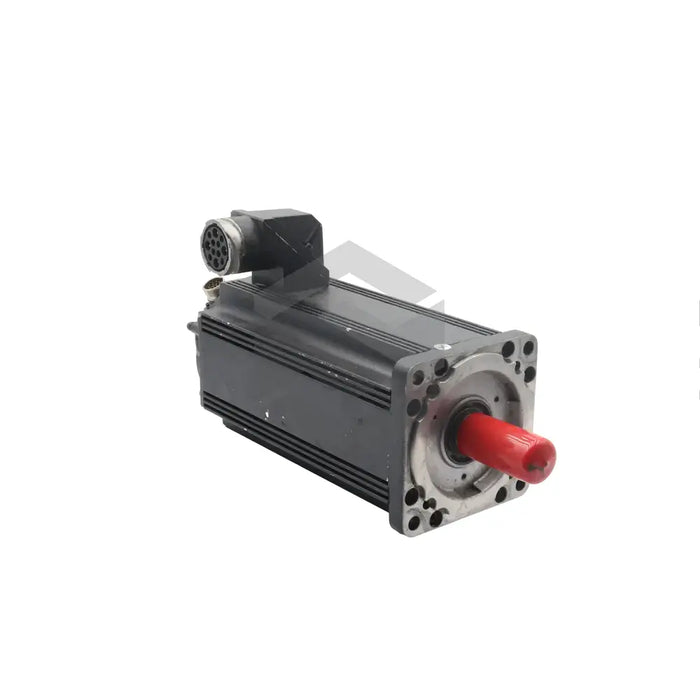

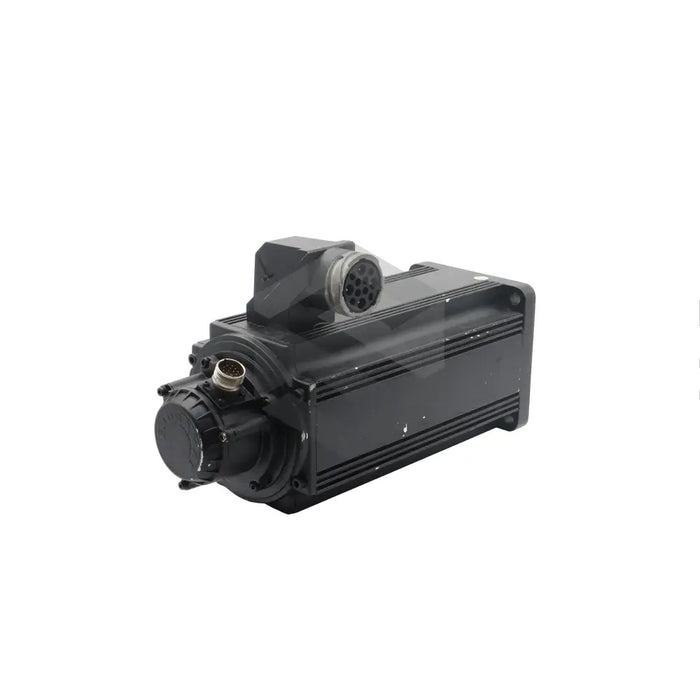

The R911292011 (MHD093B-035-NG1-RA), crafted by Bosch Rexroth Indramat, represents a cutting-edge synchronous industrial motor designed to achieve high-torque output over a wide speed range, even in challenging environments. This resilient, cost-effective engine is renowned for its long operating life under suitable conditions, aided by ball bearings at the motor's output shaft with an estimated service life of about 30,000 hours. To further enhance safety and ease of operation, the motor housing is etched with distinctive markings indicating specific parts that require special oversight.
This sophisticated motor, at 20 degrees Celsius, delivers a torque constant of 1.29-newton meters per ampere and a voltage constant of 112 volts per 1000 revolutions. It can generate a torque output of 60-newton meters at a peak speed of 4500 RPM, drawing a maximum input current of 45.9 amperes. Despite its powerful performance, it sustains a noise level below 75 decibels, making it well-suited for industrial use. The R911292011 (MHD093B-035-NG1-RA) is compact and lightweight, measuring 356mm in length, 140mm in thickness and weighing only 14.5 kilograms. Furthermore, the motor maintains an optimal internal temperature through natural convection, augmented by an optional external fan for surface cooling.
