R911292022
Original price
$4,725.00
-
Original price
$4,725.00
Original price
$4,725.00
$4,725.00
-
$4,725.00
Current price
$4,725.00

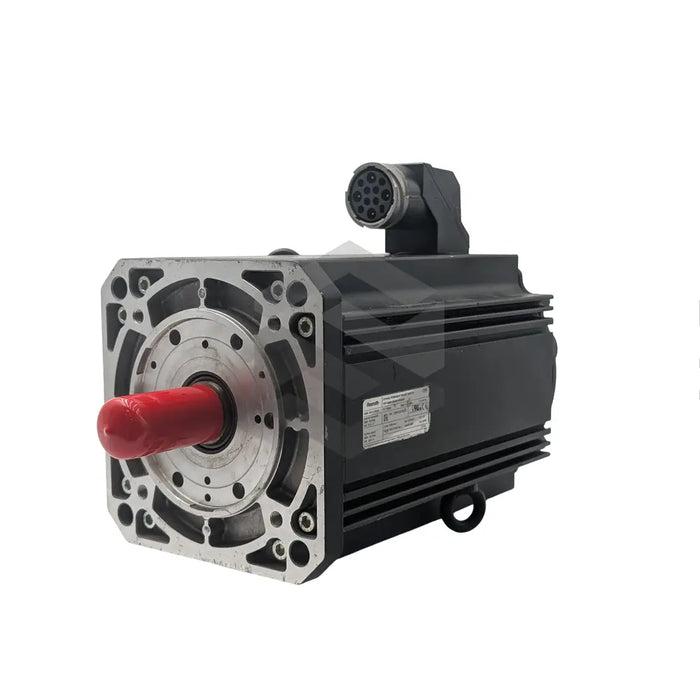

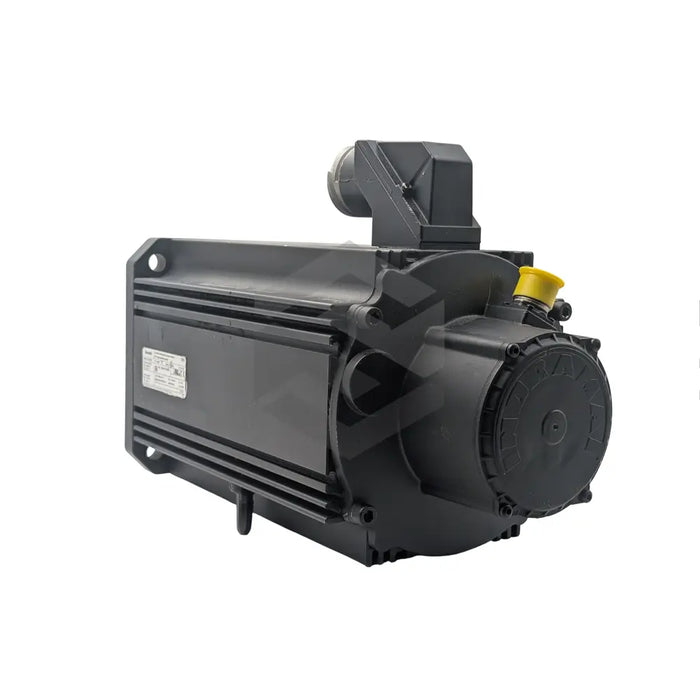

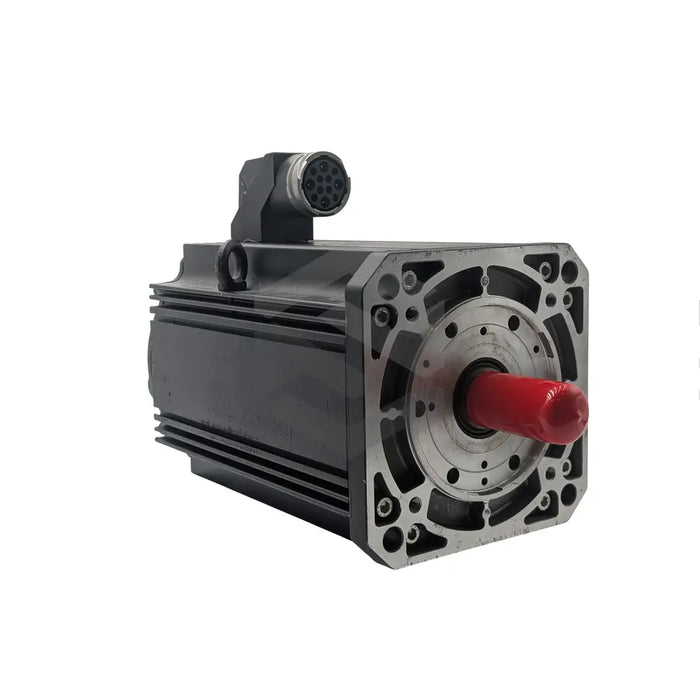

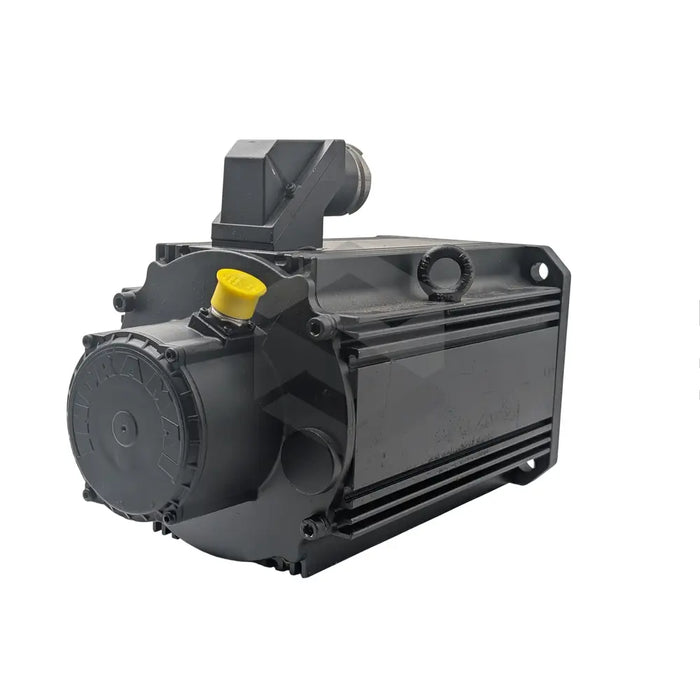

The R911292022 (MHD112B-048-NG0-LN), a product by globally-renowned electrical automation equipment producer Bosch Rexroth Indramat, is a powerful synchronous motor. Designed with IP65 protection, the motor is fortified against dust and liquids, maintaining functionality in a broad range of conditions. It is ideal for installation in environments free of vibration and up to 1000 meters above sea level. The motor operates optimally within a -20 to +80 degree Celsius range. Equipped with a left-side power connector, the motor is designed without a holding brake. It's advisable to use only the company-recommended power cables and controllers for compatibility and safety reasons.
The motor harnesses 227 – 236 V AC power, providing 7.7 – 18.1 Nm constant torque in natural cooling mode. While operating in the surface cooling mode, it utilizes 251 V to deliver a rated power of 30.6 Nm. This mode incorporates an attachable blower unit, configured either axially or radially, to control the motor's ambient temperature. Notably, this motor model exhibits a winding inductance of 3.1 mH and generates a resistance of 0.22 Ohms at 20 degree Celsius. The power output and torque efficiency are controlled through digital servo feedback for optimal performance. For customers seeking a reliable supplier for the R911292022 (MHD112B-048-NG0-LN) MHD synchronous motor, Servo Supplier is an excellent choice.
30 Day Warranty
Technical Specifications
