R911292229

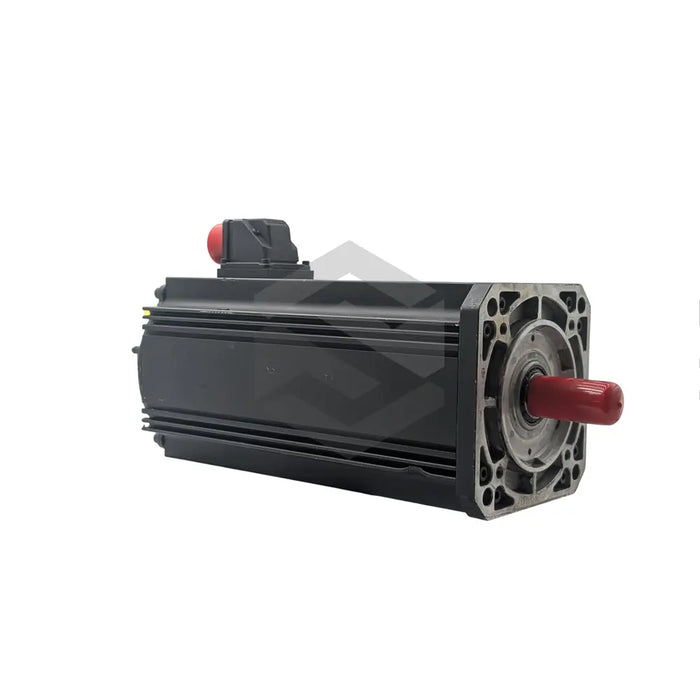

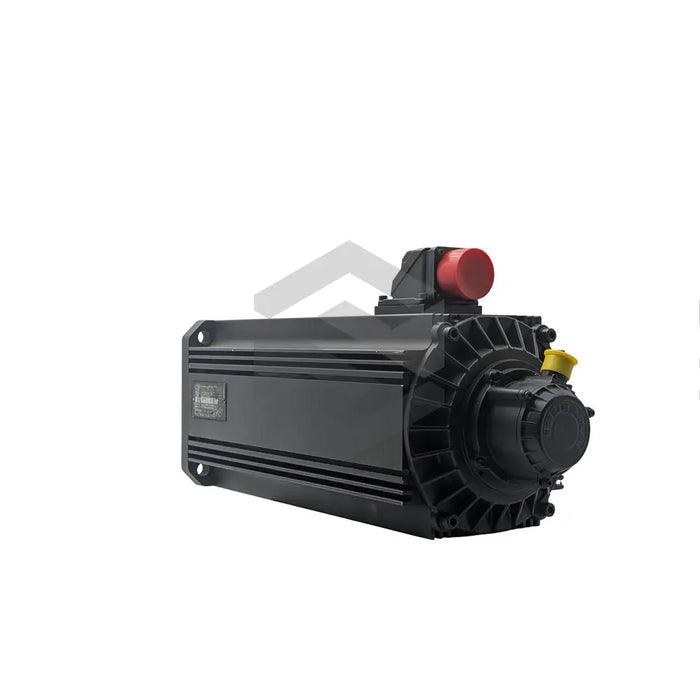

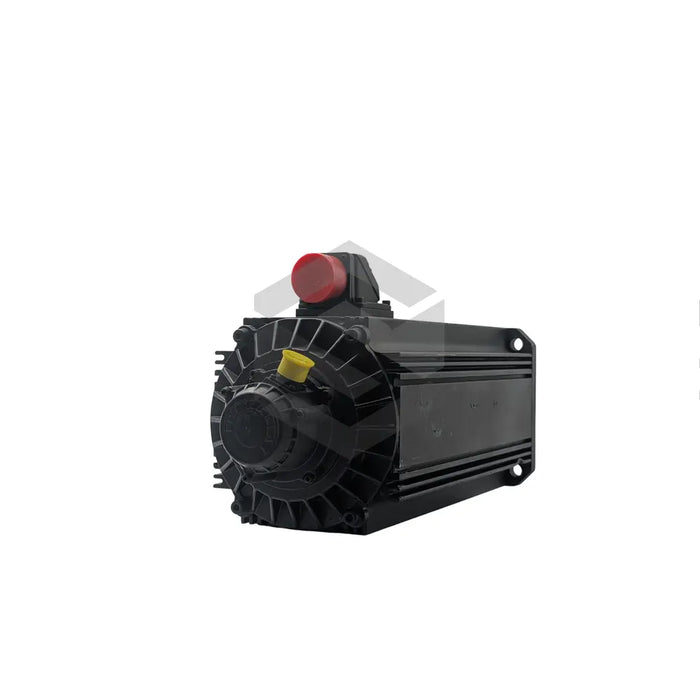

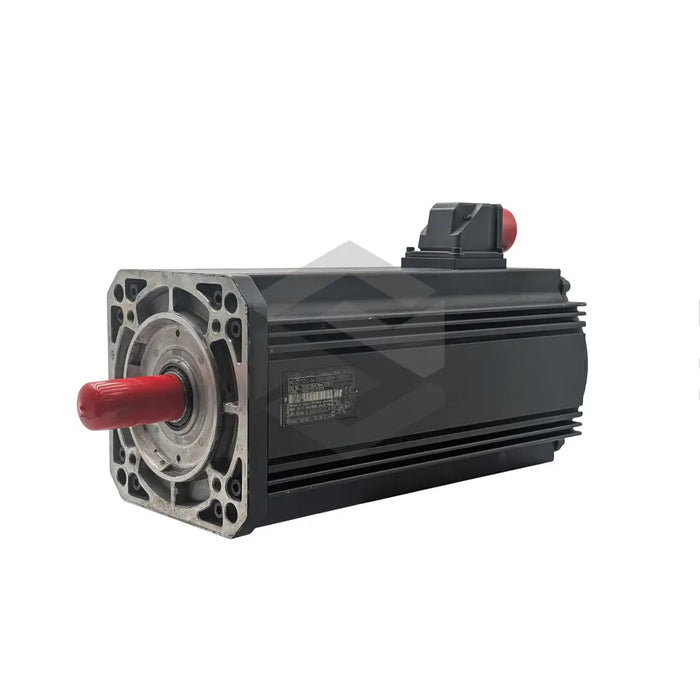

The R911292229 (MHD112C-035-PG0-BN) is a Bosch Rexroth Indramat-manufactured MHD series motor. Specifically, it's a frame size 112, length C motor with a winding code of 035. While it does not come with an integrated holding brake, a 70 Nm torque brake can be obtained separately if necessary. The motor comes with individual plug connections for the encoder and power, the latter found on side B of the motor. The cable and plug necessities are not included in the shipment but are purchasable separately. An integrated temperature sensor connection is also accessible through the power connector. The motor type, delivery information, and customer details are neatly provided on a bar code label attached to the motor.
When storing an unused R911292229 (MHD112C-035-PG0-BN), the environment should be free from dust and vibration and should have a temperature between -20 and 80 degrees Celsius. The motor must be stored in a horizontal position with the protective sleeve left intact to prevent moisture and mechanical damage. Upon receiving the motor, inspect for any transportation-related damages. This motor uses digital servo feedback and has an integrated multiturn absolute encoder for this purpose. With surface cooling design, ensure there is ample free space around the installed motor for efficient airflow.
