R911292558
Original price
$28,383.60
-
Original price
$28,383.60
Original price
$28,383.60
$28,383.60
-
$28,383.60
Current price
$28,383.60

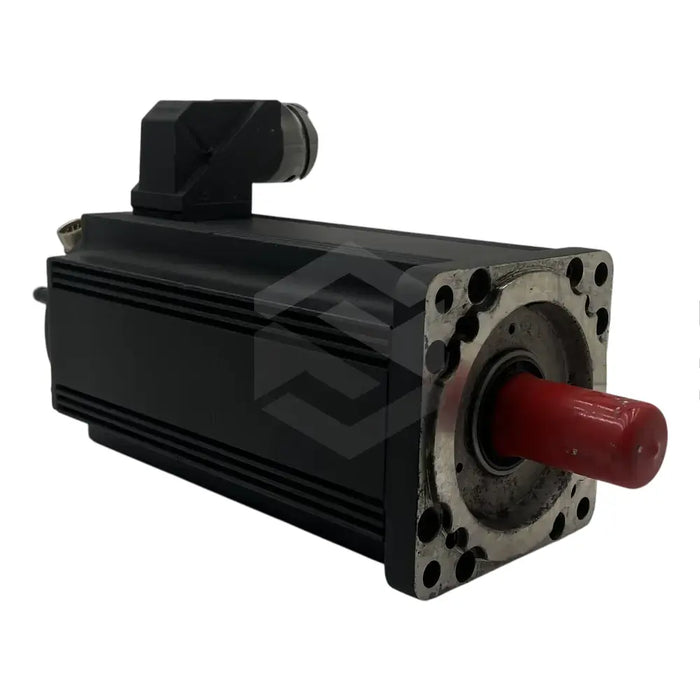

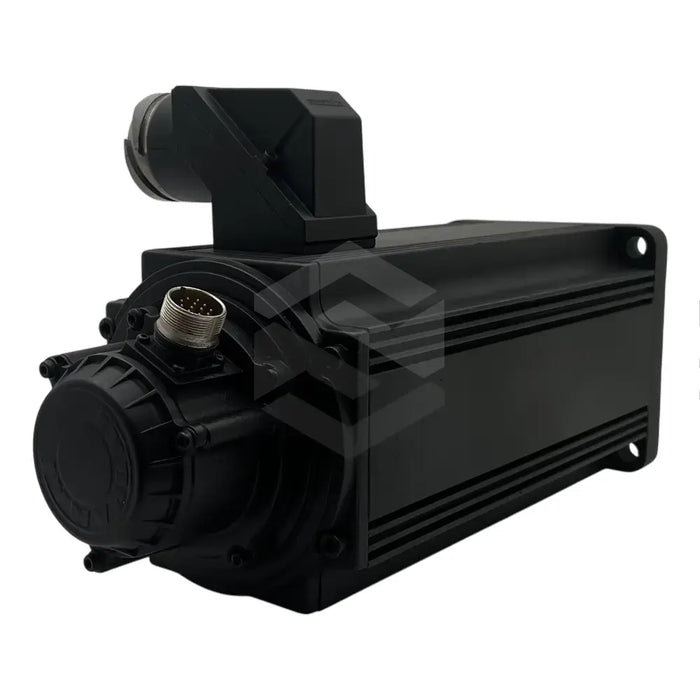

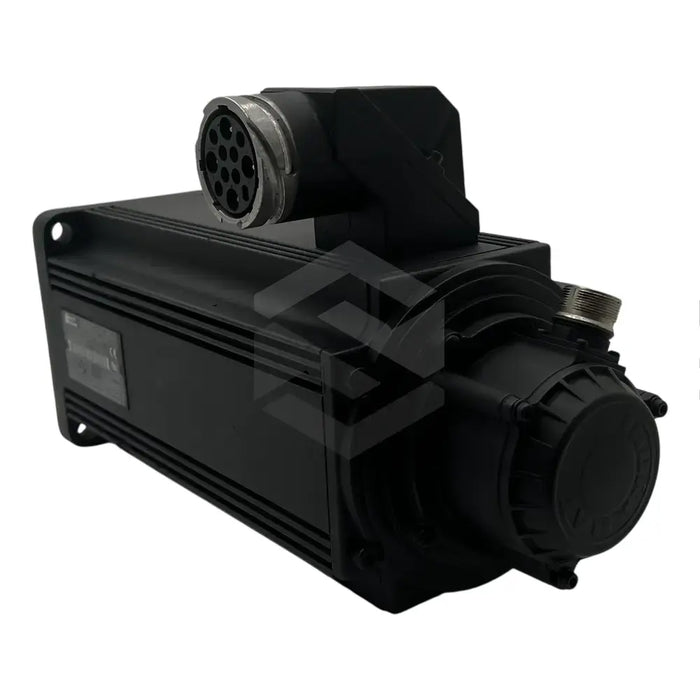

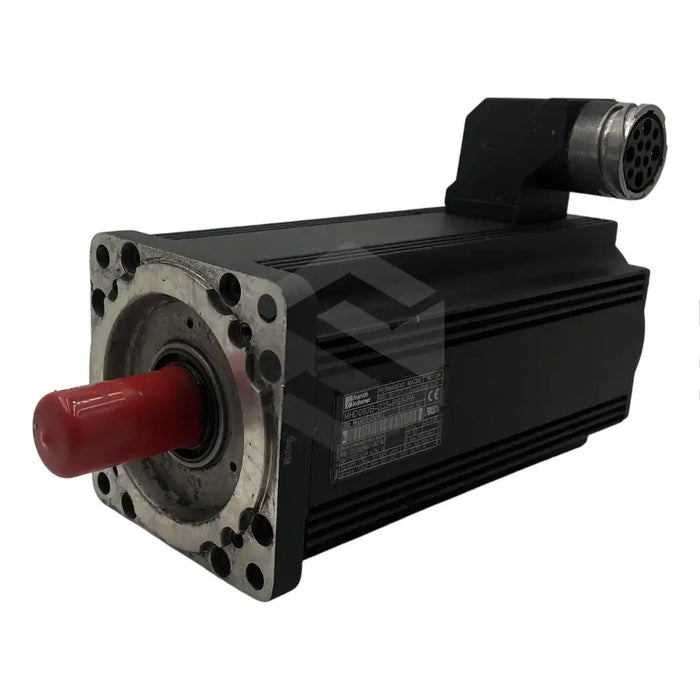

The Bosch Rexroth R911292558 (MHD093B-035-PG1-RA) MHD series synchronous motor, designed for a diverse range of industrial applications such as machine tooling, automation, food processing and packaging, is a high-performance unit that utilizes digital servo feedback and an integrated multiturn absolute encoder. This motor is equipped with a 22 Nm holding brake, a plain shaft with sealing ring, and efficient convection cooling, eliminating the need for additional active cooling devices, thus reducing installation and operation costs. It is essential, however, to maintain an ambient temperature between 0 to 40 degrees Celsius for optimal performance.
Constructed with IP65 class housing, the motor displays a high degree of protection from dust and water, making it suitable for installation near critical operating machinery. This high IP rating is attributed to the quality shaft seal, however, it must be regularly inspected as it deteriorates over time. The holding brake is a safety feature that immobilizes the shaft until a 24 Volts DC signal is applied. Located on the right side of the housing is a power connector, while the motor operates at a maximum speed of 4500 RPM. An insulation class of F (according to DIN VDE 0530 Part 1) is standard for the R911292558 (MHD093B-035-PG1-RA) motor. It weighs 19 kilograms for shipping purposes.
30 Day Warranty
Technical Specifications
