product Main (Front Left) image of R911292828

R911292828

by Bosch Rexroth Indramat
$5,920.49 - $5,920.49
$5,920.49
$5,920.49 - $5,920.49
$5,920.49
In Stock, Ships 1 - 3 Days

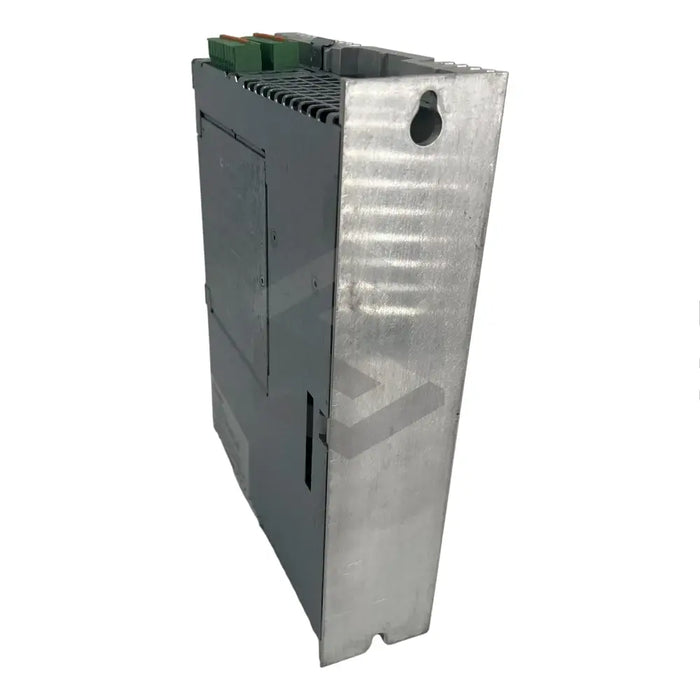

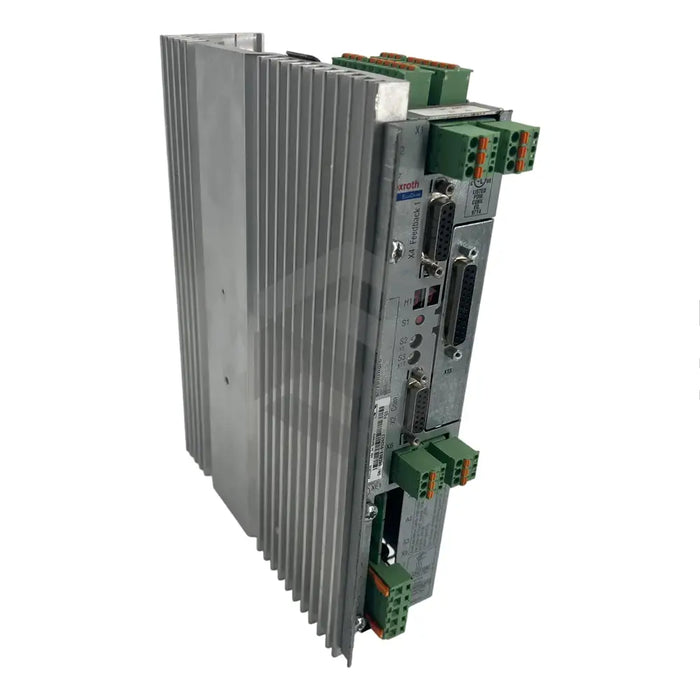

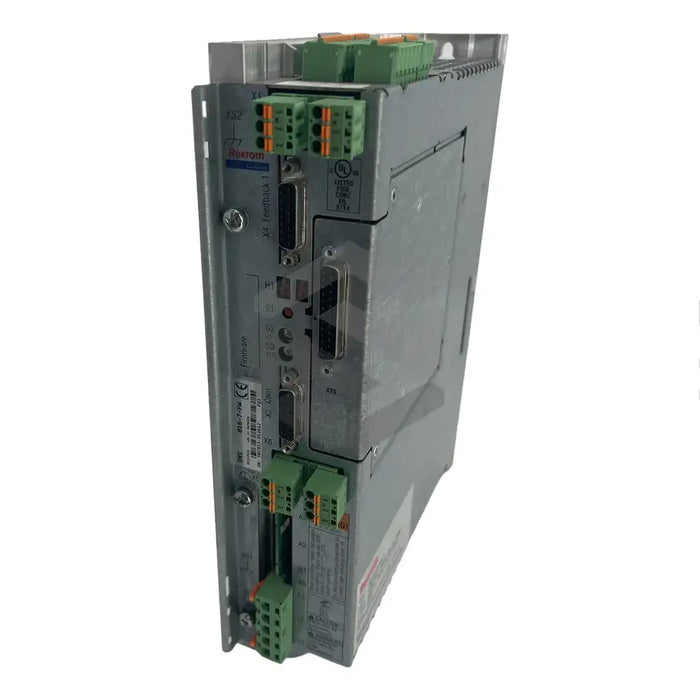

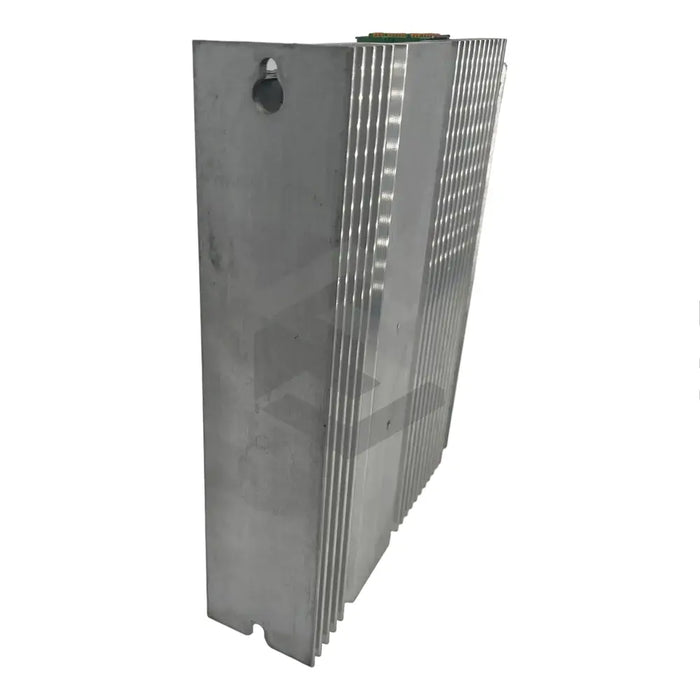

The R911292828 (DKC01.3-016-7-FW) is a drive controller manufactured by Bosch Rexroth Indramat, part of the ECODRIVE series and DKC01.3 product family. Designed for use in a variety of machinery such as industrial robots, machine tools, and printing devices. This 4.4 kg device is intended for installation inside a control cabinet with a maximum height of 1000 meters above sea level. It operates under ambient conditions of up to 95% relative humidity, 25g/m3 absolute humidity, and a temperature range of 0 to 45 degrees Celsius. The device is IP 20 protected and can withstand storage and transport temperatures between -30 and 85 degrees Celsius. The R911292828 (DKC01.3-016-7-FW) operates on a 700 V rated intermediate circuit voltage and has a 16 A current type. Its firmware, ordered separately, determines its functional features. The device enhances operating safety, offers software travel limit switch, automatic parameter matching, and an adjustable error reaction. Simplified startup makes it user-friendly whether you're an experienced engineer or a beginner. It functions both as a servo drive with an analog speed interface, actual position detection, and as a servo drive with an electronic gearbox. When used for position control, it can store up to 32 autonomous positioning blocks and includes a jog function for convenient setup and adjustment. For use with stepper interface, it provides step variation of 16 to 65536 per rotor rotation and drive-internal referencing.
30 Day Warranty
Technical Specifications
  • Rotor Rotation: 16 to 65536 steps per rotation.
  • Positioning Blocks: Up to 32
  • Product Family: DKC01.3
  • Relative Humidity: 95%
  • Series: ECODRIVE
