R911294381

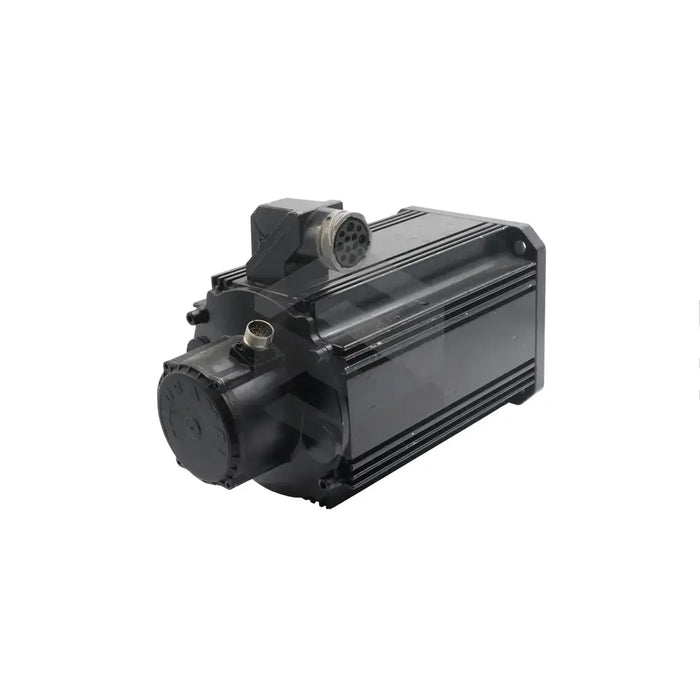

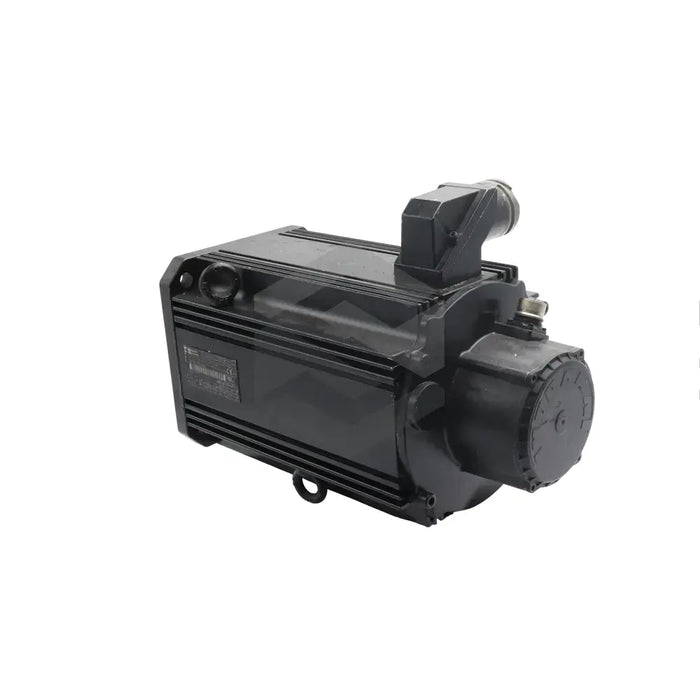

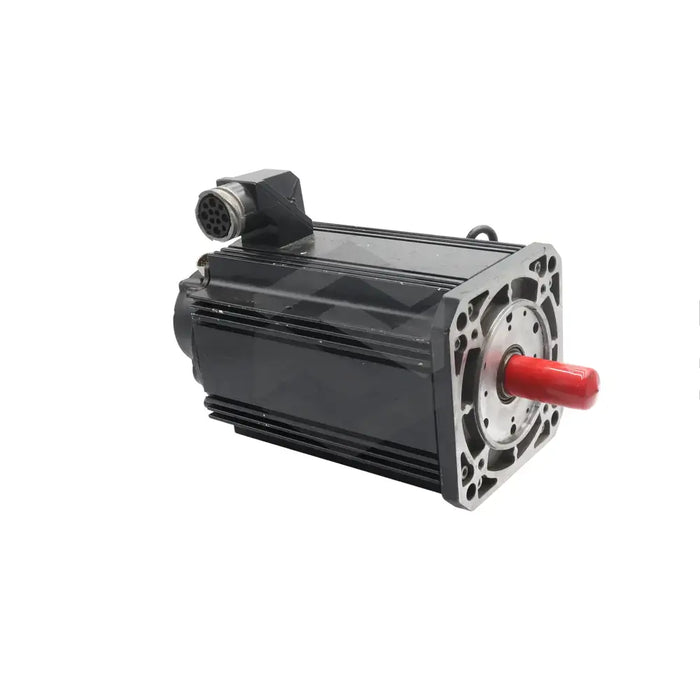

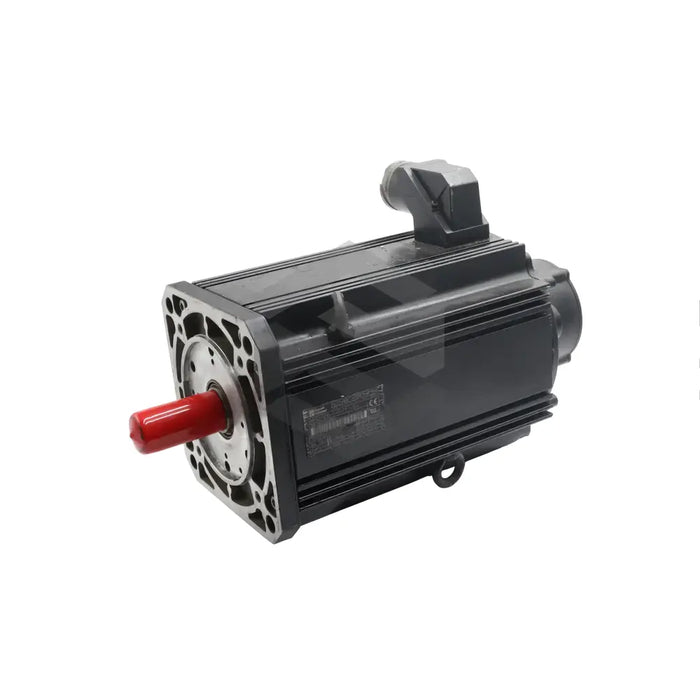

Produced by Bosch Rexroth Indramat, the R911294381 (MHD112B-024-NP0-RN) is an industrial synchronous motor that provides robust and dependable kinetic energy for industrial production and processing systems. Housing a hard-wearing protective unit, the motor thrives in a range of harsh settings, such as mining sites and potentially explosive areas. An additional protective coating shields the motor from corrosive substances like diluted acids, alkalis, and hydraulic oils. However, operators must apply the correct configuration parameters, as incorrect configuration can result in hazardous motor movements.
The R911294381 (MHD112B-024-NP0-RN) requires a rated current of approximately 32.9 amperes for optimal performance. At this current, the motor produces a continuous torque of 42-newton meters at a speed of about 2000 revolutions per minute (RPM). The motor can attain a maximum speed of 3500 RPM with a maximum input current of 98.5 amperes. The motor includes a digital servo feedback system with an inbuilt multiturn absolute encoder, enabling accurate real-time motor operation control. Natural convection cools the operating temperature of the motor, although an air blower can be fitted if additional cooling is required.
