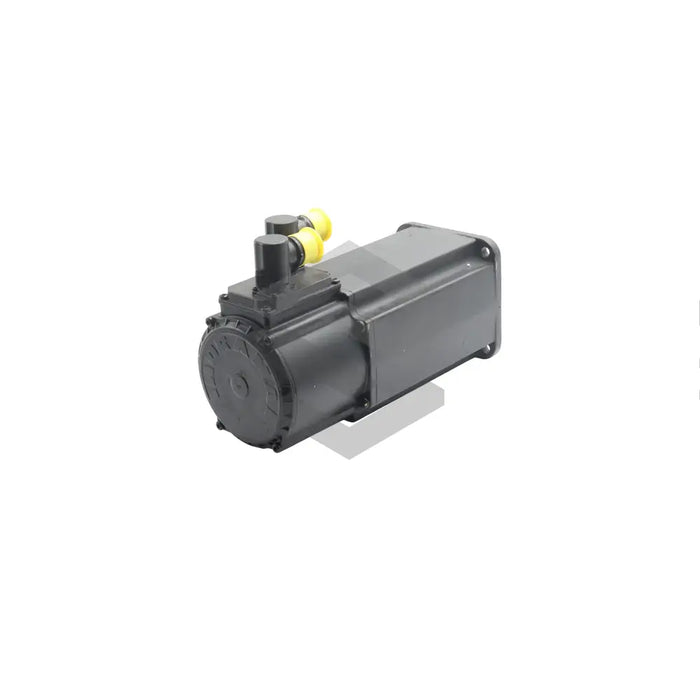

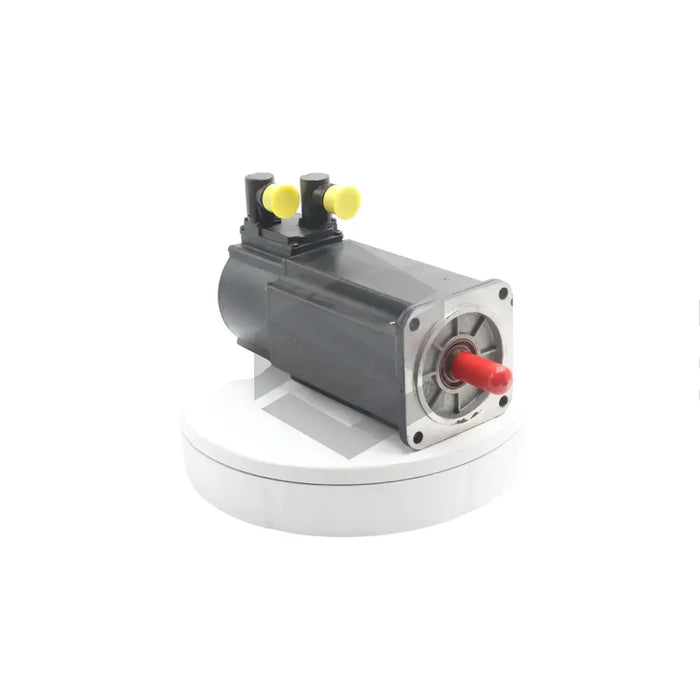

R911295341
The R911295341 (MHD071B-061-PP2-UN) is a top-tier product from Bosch Rexroth Indramat, a leading provider of reliable and cost-effective automation equipment such as servo motors and machine control units. The company is well-regarded globally for its cutting-edge industrial power tools.
The R911295341 (MHD071B-061-PP2-UN) belongs to the AC Servo Motor series and is noted for its brushless design. This MHD071 brushless servo motor offers longevity thanks to its lifetime grease-lubricated bearing. With a digital servo feedback mechanism and an in-built multiturn absolute encoder, the drive controller accurately positions and controls the motor shaft. The servo motor, which weighs 8.8 kg, delivers a torque of 0.77 Nm per Ampere at a connection voltage of 70.0 per minute and winding resistance of 1.45 ohm (at 20-degree Celsius). Further, the MHD071 offers 8.0 Nm of continuous torque at 6,000 rpm with an 11.2 A current consumption and can handle a peak current of 50.5 Amperes. The product, equipped with 270-degree rotatable power connectors, is versatile enough for use in various industries such as machine tools, textiles, printing, and packaging. Its shaft is securely held with a key in the keyway for safe operation.
30 Day Warranty
Technical Specifications
