R911295558
Original price
$2,711.10
-
Original price
$2,711.10
Original price
$2,711.10
$2,711.10
-
$2,711.10
Current price
$2,711.10

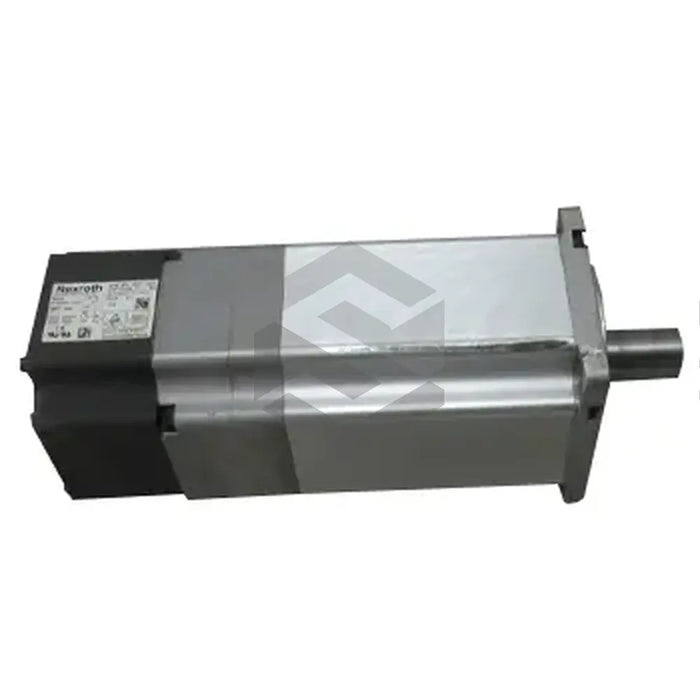

The R911295558 (MSM030C-0300-NN-M0-CG0) is a 400W synchronous motor constructed by Bosch Rexroth Indramat, forming part of their MSM servomotor series. This robust device benefits from natural convection cooling and supports a rated speed of 3,000min-1 and maximum speed of 5,000min-1. Offering an IP65-rated housing and an IP40-rated output shaft, the motor guarantees ample protection. Coupled with a winding inductance of 17 +/- 10% mH, the motor ensures safe and reliable operation for your industrial needs. Shipping of this cUL-recognized and CE-certified motor can be arranged conveniently to your preferred address.
When in operation, axial and radial forces are experienced by the motor bearings and shaft. Its two-part type plate, fixed on the encoder housing, details important motor information. The R911295558 (MSM030C-0300-NN-M0-CG0) is environmentally friendly and must be stored in temperatures ranging from -20°C to +60°C, supporting an absolute humidity of 1g/m3 to 29g/m3. This plain shaft motor lacks a holding brake, features a cable tail connection style and registers a steady current of 2.3A and torque of 1.2Nm in a static position. The rotor's inertia is 0.17 x 10-4 kgm2 and the motor weighs 1.5kg. With Class B insulation as per DIN VDE0530 part 1 specifications, this motor upholds Bosch Rexroth Group's reputation as a global leader in electrical product and drive solutions.
30 Day Warranty
Technical Specifications
