R911295563

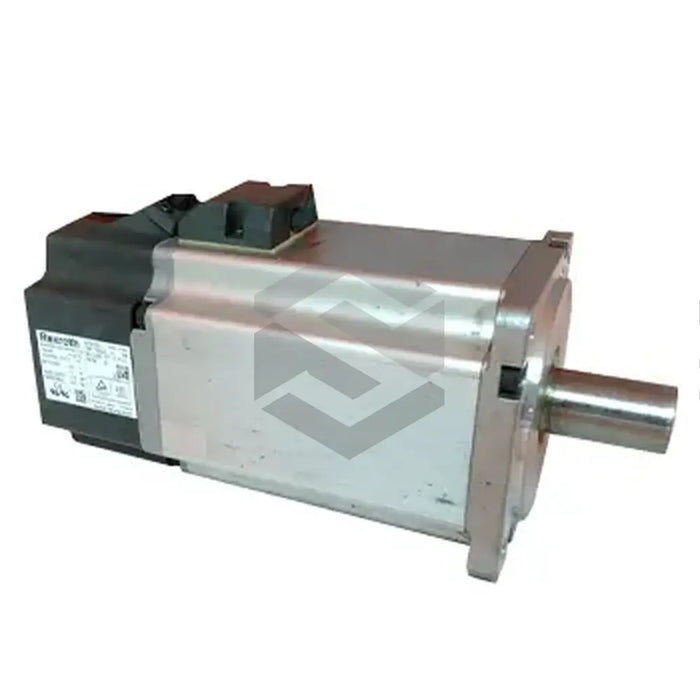

The R911295563 (MSM040B-0300-NN-M0-CG1), created by Bosch Rexroth Indramat, is an MSM series servo motor. Manufactured for exact speed and position control, its precise feedback system is supported by flexible, pre-made cables for easy connection. The motor features natural convection cooling and a battery-powered back up to protect encoder data amid power failures. The durability and versatility of this module are ensured by an IP54 protection rating, making it suitable for multiple process environments. The housing of R911295563 (MSM040B-0300-NN-M0-CG1) motor is IP65 certified, while its output shaft has an IP40 protection rating. This product also meets UL/CSA industry standards.
The MSM series servo motor R911295563 (MSM040B-0300-NN-M0-CG1) flaunts a rated speed of 3000 rpm, with a maximum capacity of 4500 rpm. The motor features a plain output shaft and incremental encoder, as well as a permanent magnet for electronic communication. At an approximate weight of 3.1 kilograms, this module also functions with 4 pole pairs. The rated specifications deliver a torque of 2.4 Nm, current of 4.3 amps, power of 754 Watts, and voltage of 132 Volts, all operating at a frequency of 200 Hertz. The resistance of the winding stands at 1.5 ohms at 20 degrees Celsius and it can reach a peak current of 12.9 amps. The R911295563 (MSM040B-0300-NN-M0-CG1) synchronous motor is regarded as a part of a compact generation of economically efficient automation motors.
