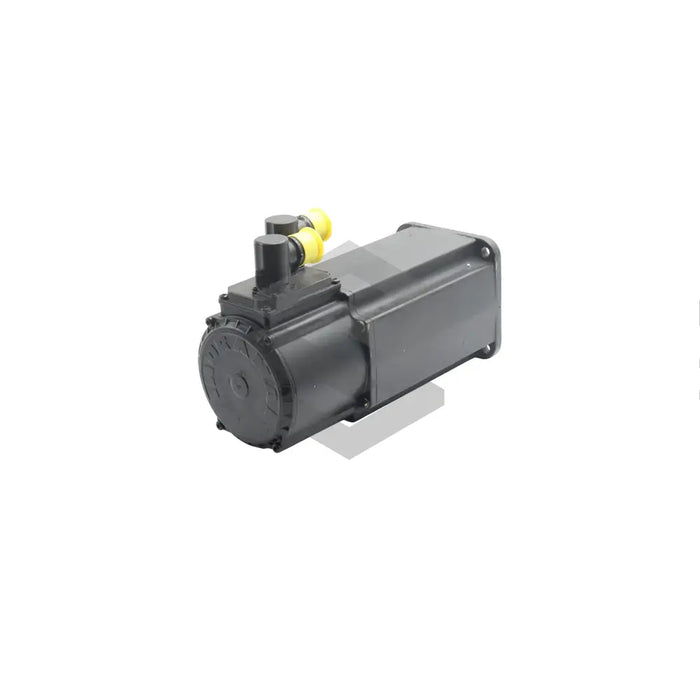

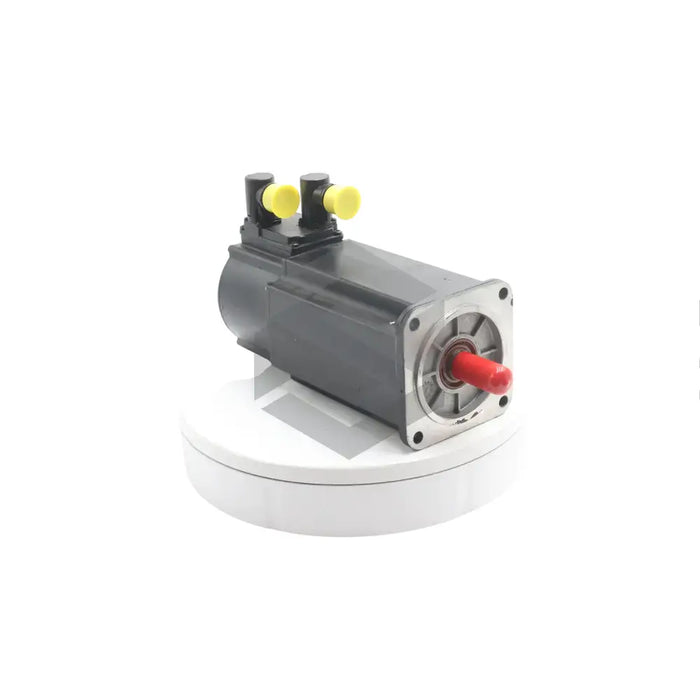

R911296032
The R911296032 (MHD071B-035-NG2-UN) is a high-performance synchronous motor engineered by Bosch Rexroth Indramat, renowned for their top-tier industrial motors and drive controllers. This motor is specially designed to provide superior service in industrial motion control and automation tasks. Renowned for its durability, the R911296032 (MHD071B-035-NG2-UN) boasts high operational reliability in varying external conditions. The inclusion of high-quality, energy-dense permanent magnets ensures precise position and speed control, facilitating rapid acceleration.
The motor reaches a characteristic speed of 4500 rpm, and can even escalate to 6000 rpm if needed. A peak current of 23.4 A and torque constant of 0.76 Nm/A contribute to its efficiency. The motor is characterized by 4-pole pairs and offers a rated speed of 5000 rpm and a rated torque of 1.6 Nm when motor overtemperature is 60K. Despite these features, the device weighs merely 6 kg, promoting ease of handling.
Storage under temperatures ranging from -20 °C to 80 °C is permissible, with a maximum operational height of 1000 meters. Boasting F class insulation materials, the motor can withstand high internal temperatures, and the stator windings ensure efficient heat dissipation. The motor’s design ensures convenient mounting in any position, and can withstand high overload.
