R911297059

Original price $6,520.50 - Original price $6,520.50
Original price
$6,520.50
$6,520.50 - $6,520.50
Current price $6,520.50
Available, Shipping Varies

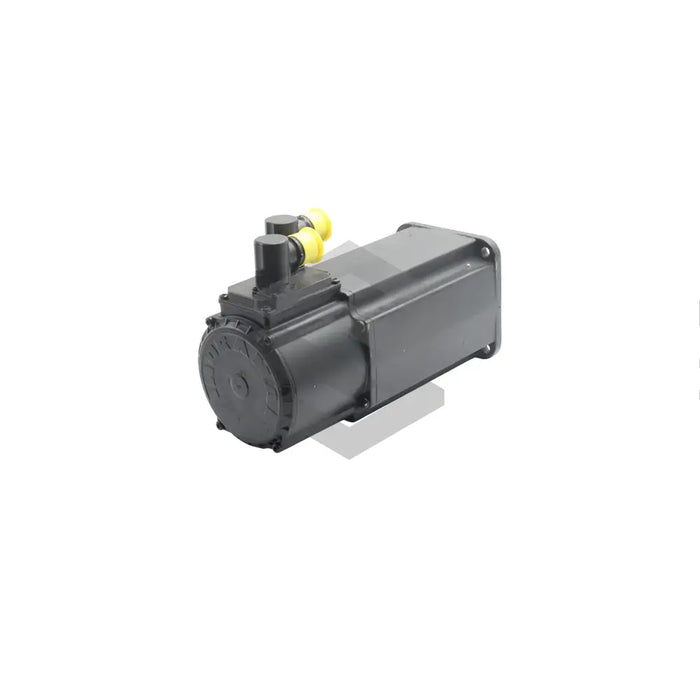

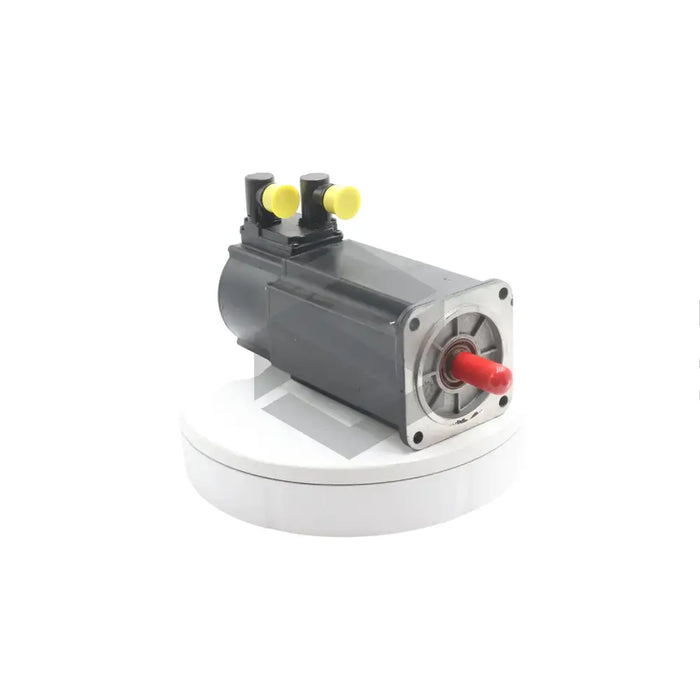

The R911297059 (MHD071B-035-NP2-UN) synchronous motor, produced by industry leader Bosch Rexroth Indramat, has carved out its niche in spaces with limited installation room but demanding high torque output. Its advanced construction uses superior quality permanent magnets, resulting in an elevated energy density. This motor is versatile, powering machines in sectors like automation, woodworking, food processing, and paper production and printing. One of its standout features is its precision speed regulation, anchored by high-end electronic encoders. These accurate speed control mechanisms compare actual to programmed speeds, issuing correction commands as needed. The R911297059 (MHD071B-035-NP2-UN) is built for high performance, boasting a characteristic motor speed of 4500 A and can max out at 6000 rpm. The motor is insulated using high-quality class F materials, safeguarding its internals against excess heat. Weighing approximately 8.8 kg, it operates optimally within a temperature range of 0°C to 40°C and altitudes no greater than 1000 meters. Its specifications include a winding inductivity of 7.2 mH, four-pole pair constitution, a rated frequency of 267 Hz, and a rated voltage of 283 V. Remarkably, at an overtemperature of 60 K, it hits a rated torque of 1.7 Nm.
30 Day Warranty
Technical Specifications
  • Weight: 8.8 kg
  • Rated Torque: 1.7 Nm
  • Model Number: MHD071B-035-NP2-UN
  • Manufacturer: Bosch Rexroth Indramat
  • Temperature Range for Peak Performance: 0 °C to 40 °C
