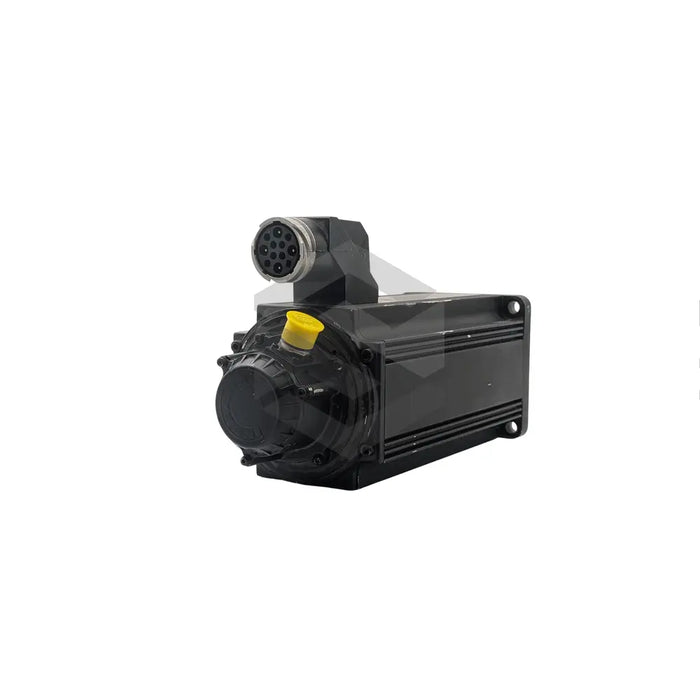

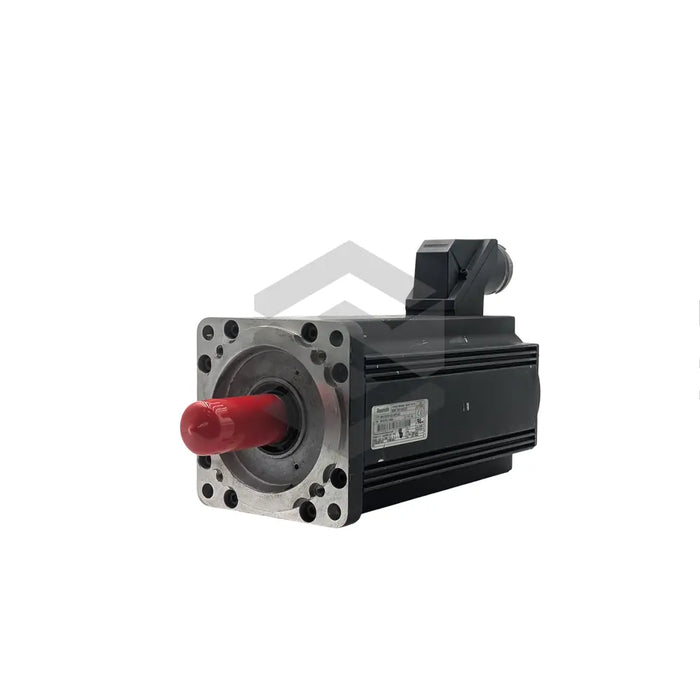

The R911297091 (MHD093B-035-PP0-AA) is a convection-cooled servo motor by Bosch Rexroth Indramat. It comes equipped with a digital servo feedback and an integrated multiturn absolute encoder. This encoder is crucial for tracking motor speed, position, and other parameters, which are communicated to a drive controller via a feedback cable. If the motor parameters deviate from the set parameters, the drive controller adjusts its output signals accordingly to maintain optimum performance. This function represents a closed loop control system that operates continuously during the machine operation.
Commonly used in conjunction with a drive controller, the R911297091 (MHD093B-035-PP0-AA) motor is suitable for various industrial applications, including machine tools, printing machines, and automation and packaging machines. While it doesn't come with a holding brake, brakes rated for 22 Nm and 332 Nm can be ordered separately. The motor features a keyway and a seal on the shaft, with a power connection located on the side A of the motor housing. Cooling occurs naturally through heat dissipation to the surrounding air, though forced-air cooling can be used to enhance the cooling rate. The motor is designed to operate in ambient conditions of 0 to 40 degrees Celsius temperature and up to 1000 meters altitude. Installation and assembly of the device should be conducted by trained personnel.
30 Day Warranty
Technical Specifications
