R911298727

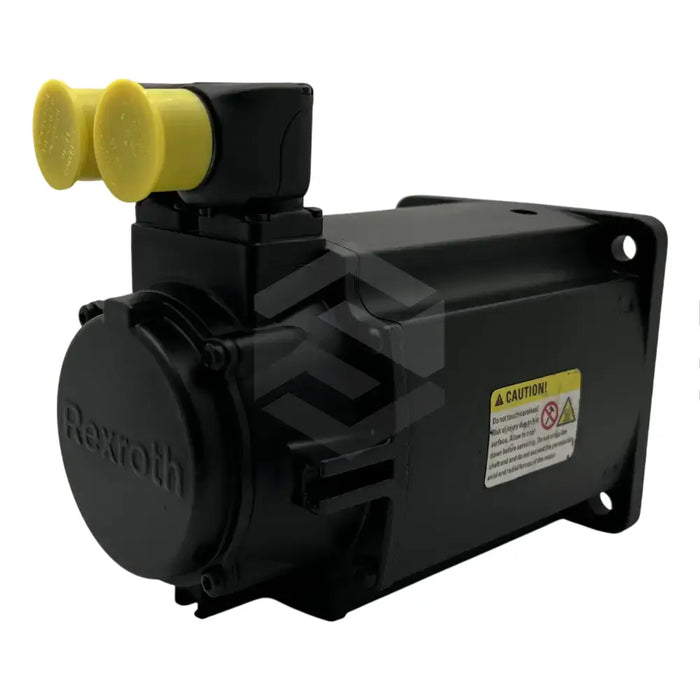

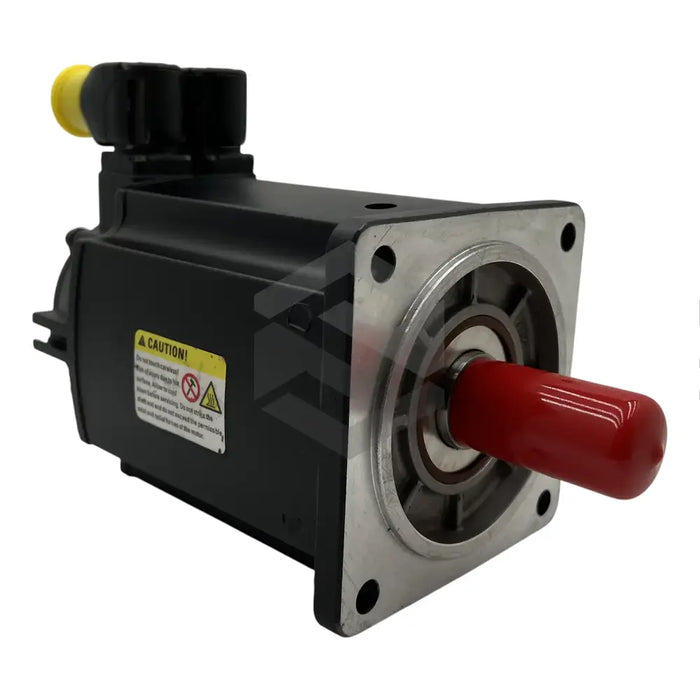

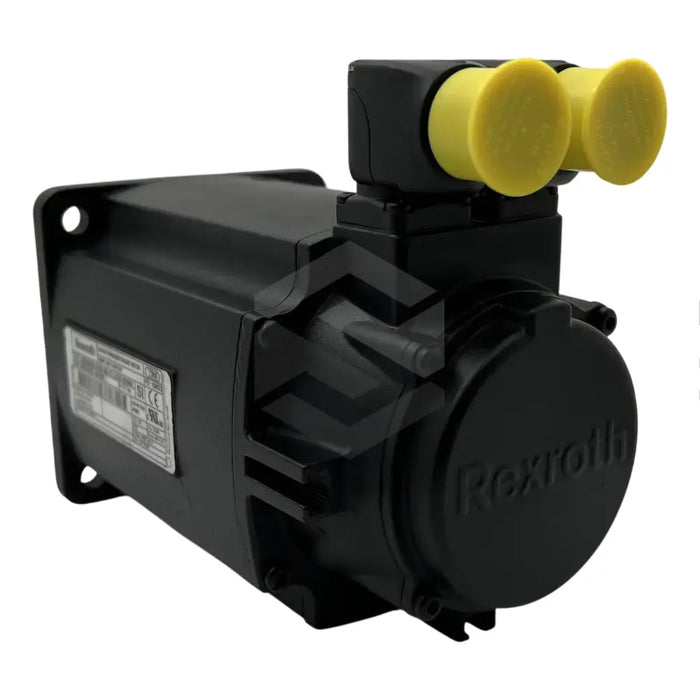

The R911298727 (MSK060B-0600-NN-S1-UG0-NNNN) is a standard-design synchronous servomotor produced by Bosch Rexroth Indramat, acclaimed for its 240° rotatable electrical connector and built-in singleturn Hiperface optical encoder. Sensitivity to high-voltage inspection tests necessitates careful handling. Its optimal storage environment should be dry, dust-free, and void of excessive sunlight or vibrations. The unit should also be protected from damage to its driveshaft and flange during handling, with recommended handling mechanisms like eyebolts, chain suspensions, or lifting sling belts. Moreover, users should ensure they are not exceeding the described axial and radial forces of the device.
This motor is intended to withstand no shaft impact. It comes pre-equipped with protective covers and sleeves, which are only to be removed shortly before installation. Other features include the characterization type plate conveying data such as temperature class, maximum speed, and a degree of protection. The R911298727 (MSK060B-0600-NN-S1-UG0-NNNN) includes a KTY84 temperature sensor incorporated into the stator, and heat dissipation is achieved via natural convection. Its functioning can be monitored using its corresponding drive controller. Overloading axial and radial forces risk reducing its operational lifetime. Notably, any added varnish to the motor's housing surface is discouraged, as it may negatively impact its thermal characteristics. The product is shipped via established freight carriers, like USPS and UPS.
