R911299361
Original price
$4,653.60
-
Original price
$4,653.60
Original price
$4,653.60
$4,653.60
-
$4,653.60
Current price
$4,653.60

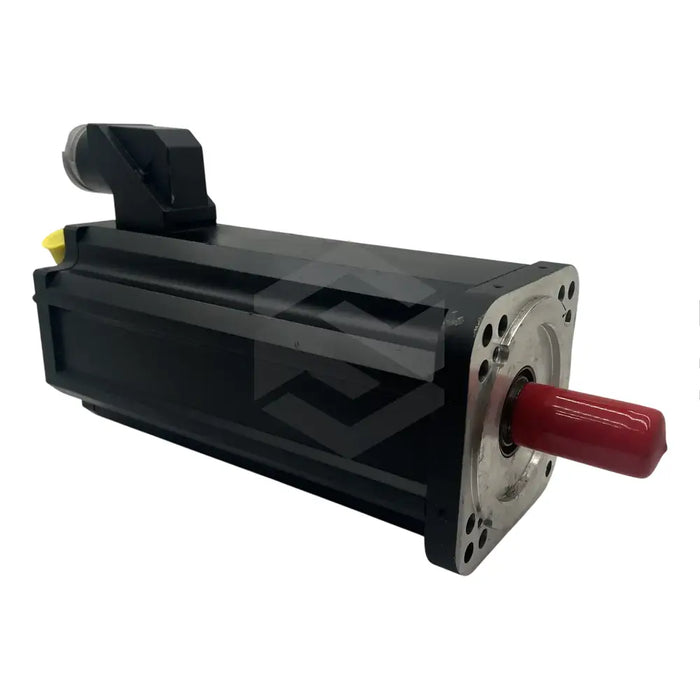

The Bosch Rexroth R911299361 (MHD093C-024-PP0-BA) is part of the highly reliable MHD series of synchronous servo motors. Ideal for a variety of industries, including machinery, packaging, and automation, this product promises unrivaled reliability with its brushless design and grease-lubricated bearings intended to last a lifetime. It boasts easy installation, expedient cabling, and quick startup, as well as the freedom to be mounted in any orientation. For safety, the operating motor must be in compliance with specified environmental conditions and guidelines. Any damaged motors should not be operated and only Bosch-approved accessories must be used.

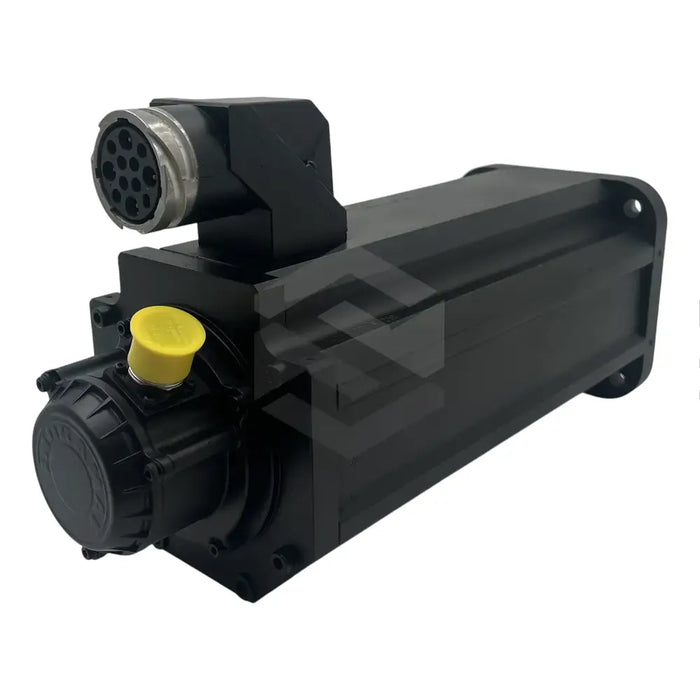

In terms of technical specifics, this particular model comes with a digital servo feedback system and an integrated multi-turn absolute encoder. It has specifications like a frame size of 093, width C, characteristic and rated speed of 2000 RPM and a maximum speed of 6000 RPM. It weighs 14.5 kilograms, with a length of 396 millimeters, diameter of 130 millimeters and shaft diameter of 32 millimeters. Unfortunately, there is no holding brake available and the power connector is located at the B side of the motor housing. The R911299361 (MHD093C-024-PP0-BA) features a prime black coat (RAL 9005) housing appropriate for natural convection or surface cooling and is operable within a temperature range of 0 to 40 degrees Celsius.
30 Day Warranty
Technical Specifications
