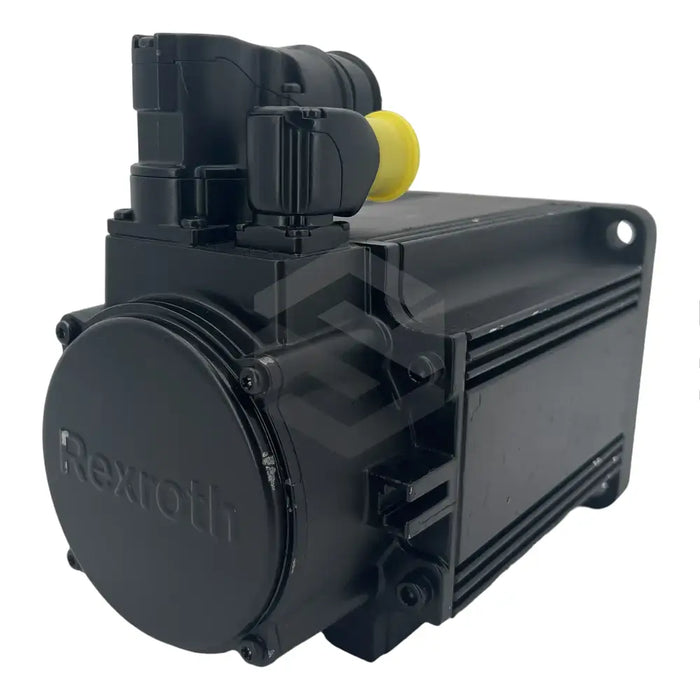

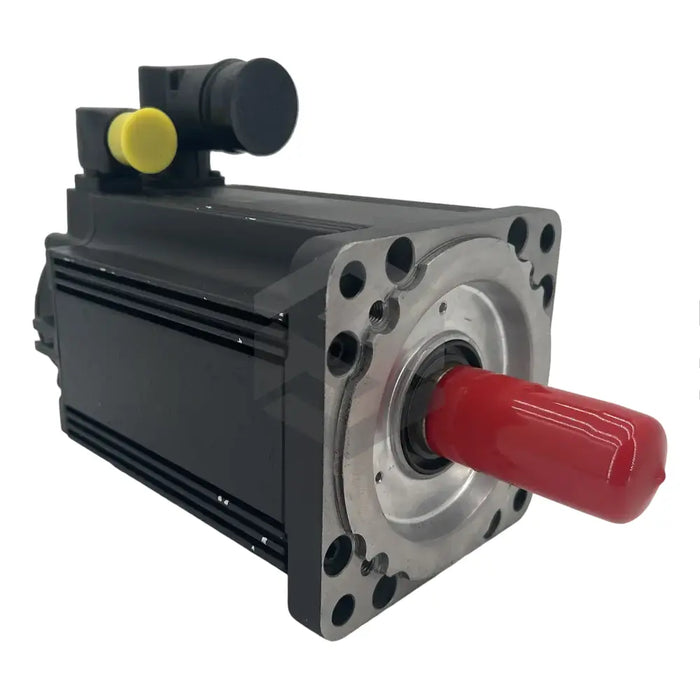

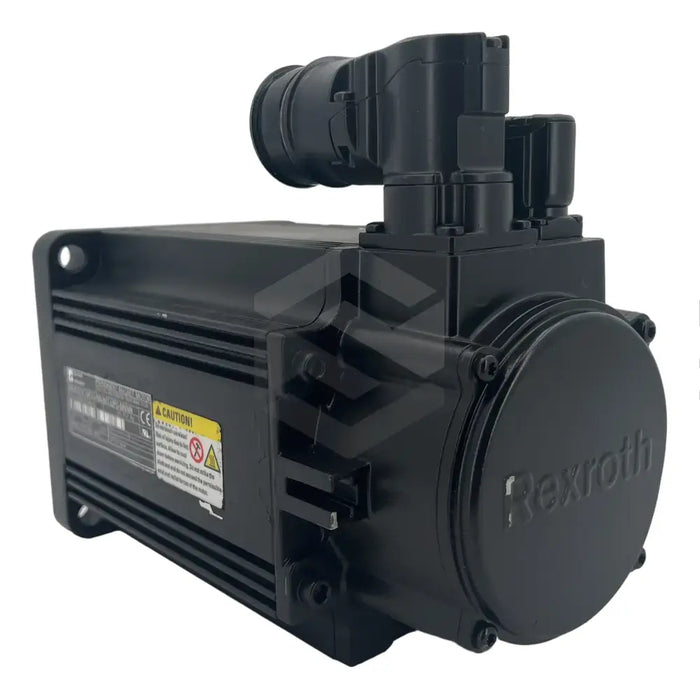

R911299757
The Bosch Rexroth Indramat's product R911299757 (MSK070C-0450-NN-M1-UP1-NNNN) is part of their IndraDyn S series or MSK motors. These motors come with a wide range of power output and sizes. MSK synchronous motors are equipped with encoder systems for better precision and to meet standard requirements. The power of the MSK motors can be incrementally increased using blower units mounted on their radial or axial sides. Two encoder versions, EnDat 2.1 and Hiperface, are available in both multi-turn and single-turn designs. The motors offer various customization features such as improved concentricity, water cooling, keyway, ATEX, and fan usage.
The R911299757 (MSK070C-0450-NN-M1-UP1-NNNN) model is equipped with an integrated encoder system for robust speed control and positioning. The motor should be operated in an environment with temperatures ranging from zero to forty degrees Celsius. Its electrical connection plug can rotate up to 240 degrees for versatile connectivity. It is sized at 070, with a winding code of 0450, and length defined as C. It is cooled naturally or could be improved with a mounted fan. Its holding brake is electrically released. The motor maintains a continuous torque and current at standstill at 60 K and 100 K, with values of 13.0 Nm and 14.5 Nm, and 12.3 A and 13.7 A respectively. The motor possesses a thermal time constant of 31.0 min and six pole pairs.
