R911299911

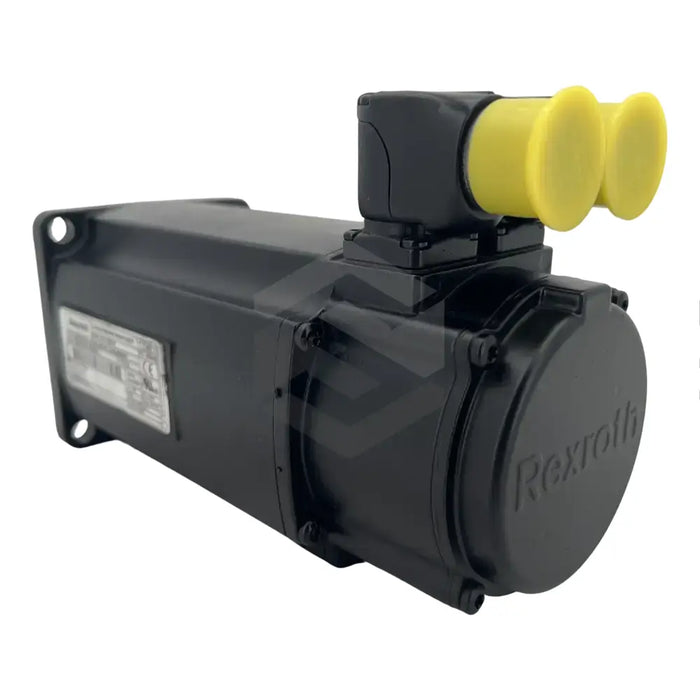

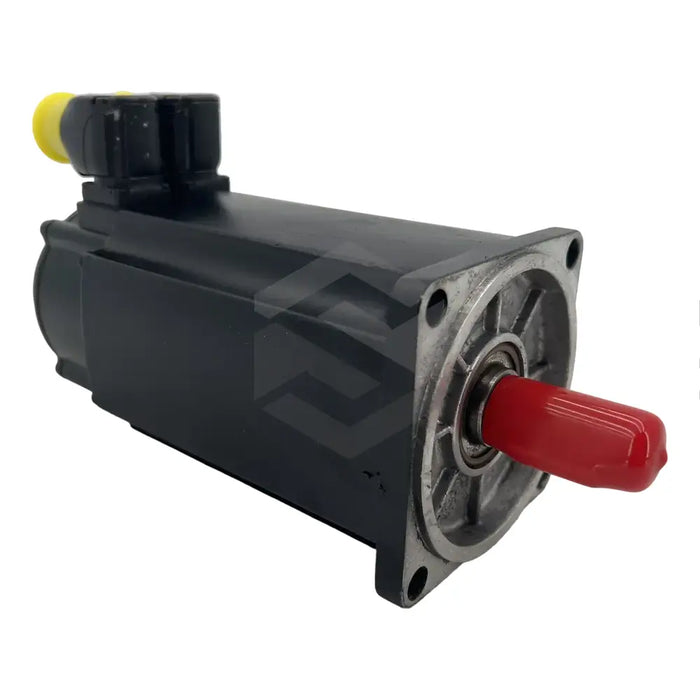

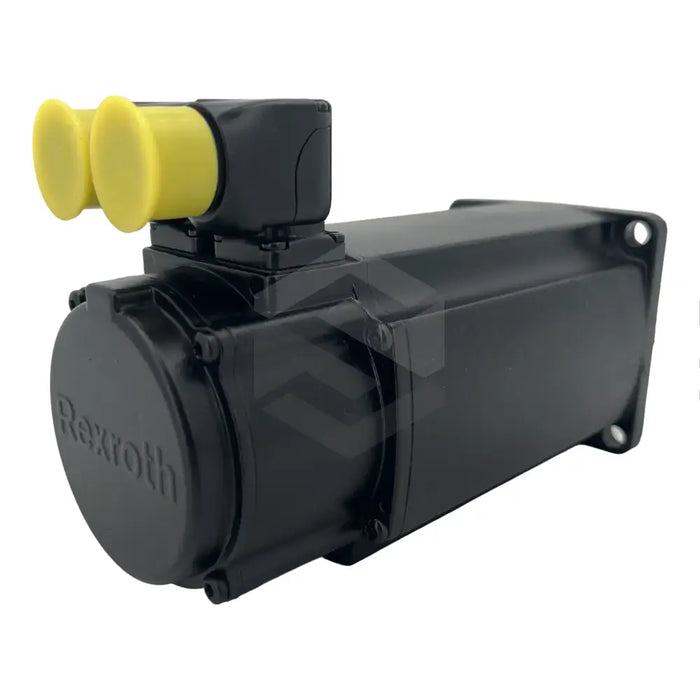

The R911299911 (MSK050C-0600-NN-M2-UP1-RNNN), a servo motor contributed by Bosch Rexroth Indramat, is distinctively designed for industrial applications. Made to function harmoniously with compatible drive controllers, it employs an optical encoder with an EnDat 2.1 interface and 2048 signal periods. The encoder acts as a feedback device, transmitting essential details on motor parameters to the drive controller, enabling optimal control over speed, torque, and other elements. The motor's encoder is a multiturn type, generating feedback for up to 4096 shaft rotations. Alongside these features, the R911299911 (MSK050C-0600-NN-M2-UP1-RNNN) is equipped with an electric holding brake that operates at a 24V DC signal, having a maximum connection and disconnection timing of 20 and 60 milliseconds correspondingly.
The R911299911 (MSK050C-0600-NN-M2-UP1-RNNN) motor boasts enhanced run-out and concentricity with its shaft housing a keyway as per DIN 6885-1 and a sealing ring. Its power and feedback connectors offer 360° rotation, adding flexibility in application. The ventilation requirements are significant as it's a convection-cooled motor with an operative ambient temperature range of 0-40 degrees Celsius. Operative temperatures exceeding 55 degrees Celsius are not advised. At a higher ambient temperature of 55 degrees Celsius, the motor output drops by 20%, and at an altitude of 3000 meters, it by 35%. Thus, the recommended operating altitude is 0-1000 meters.
30 Day Warranty
Technical Specifications
