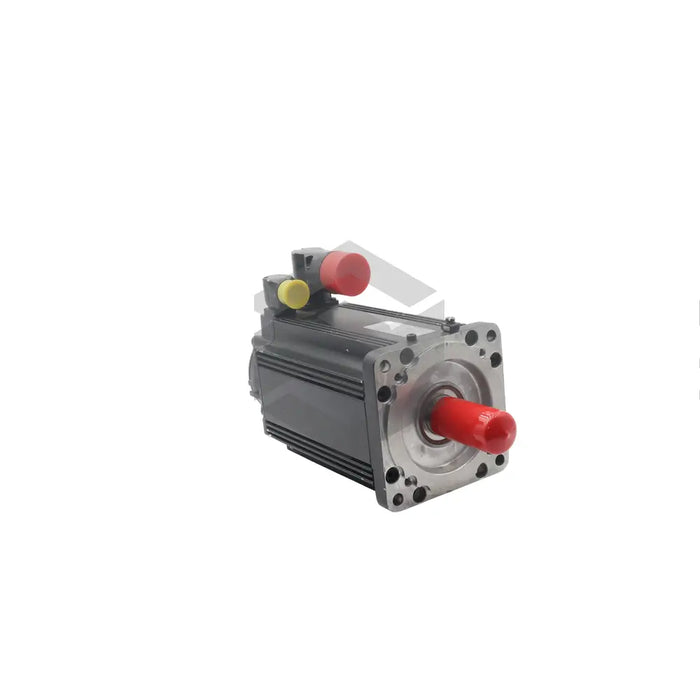

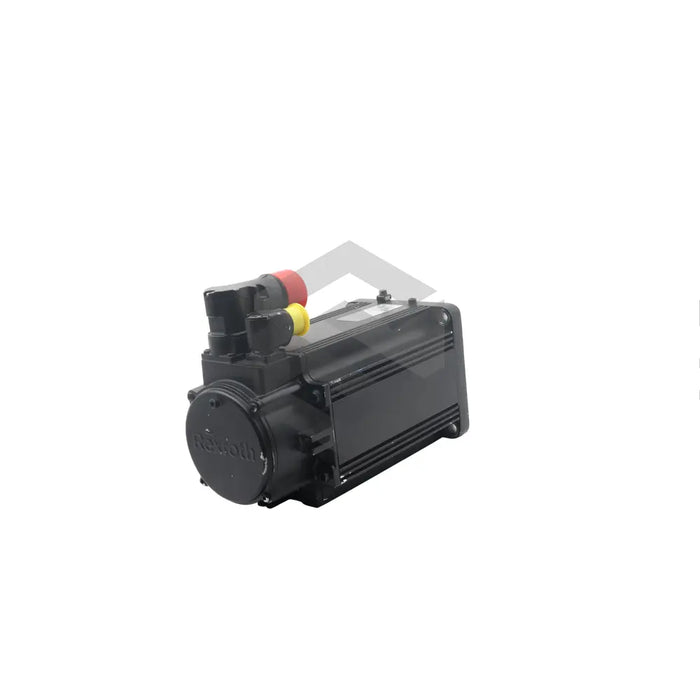

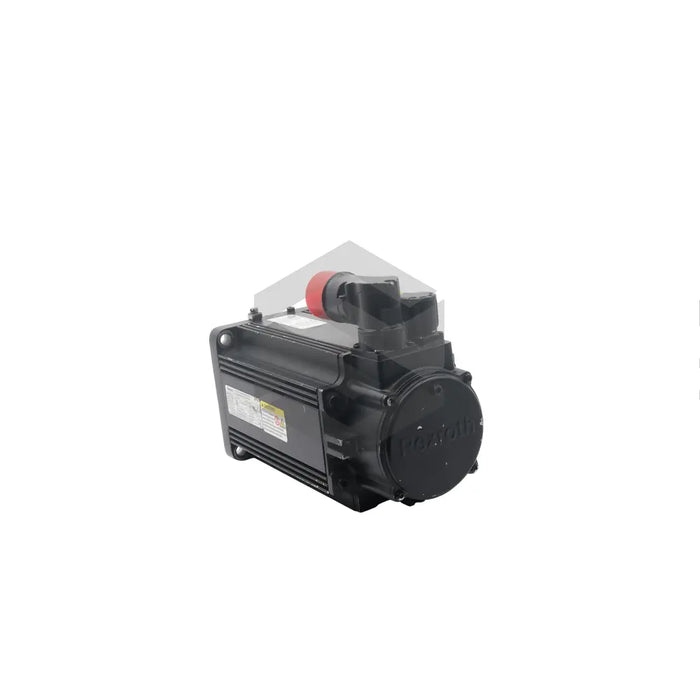

The R911299951 (MSK070D-0450-NN-S2-UP0-RNNN) is a high-performance synchronous motor crafted by Bosch Rexroth Indramat, a leading engineer of efficient, durable, and cost-effective industrial equipment. The motor encompasses a range of specifications that includes a 240-degree pivotable electrical connector and insulation class of 155. It features a basic output shaft with a keyway, a sealing ring for enhanced lubrication resistance, and an integrated temperature sensor to guard against overheating.
With its singleturn EnDat2.1 optical encoder, this MSK070D synchronous motor has been engineered for precise path monitoring and speed control in high torque applications, while also keeping a compact footprint. The motor weighs in at 14.0 kg with a winding inductivity of 3.000 mH, producing a consistent torque of 20.0 Nm at 22 A current intake, and a steady temperature of 100 K. The continuous current at a standstill temperature is 16.6 A. Utilizing natural convection for heat dissipation, it has a thermal time constant of 100 minutes. Its exterior casing is IP65-rated, meaning it offers protection against ingress from water, lubricants, non-corrosive chemicals, and other substances, making it suitable for challenging operating environments.
