R911305535

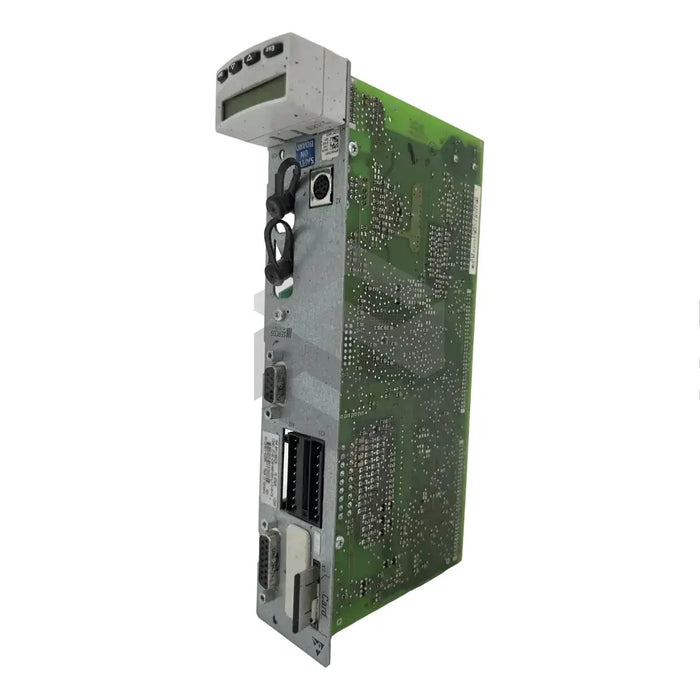

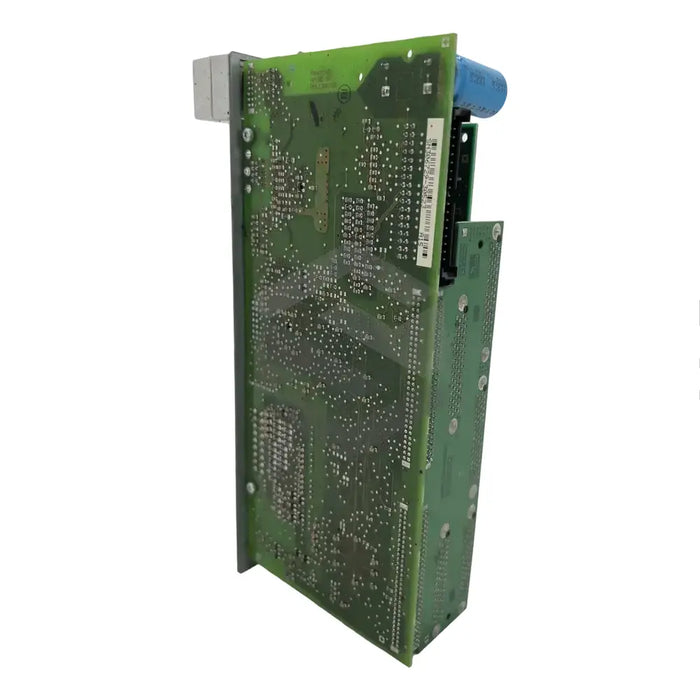

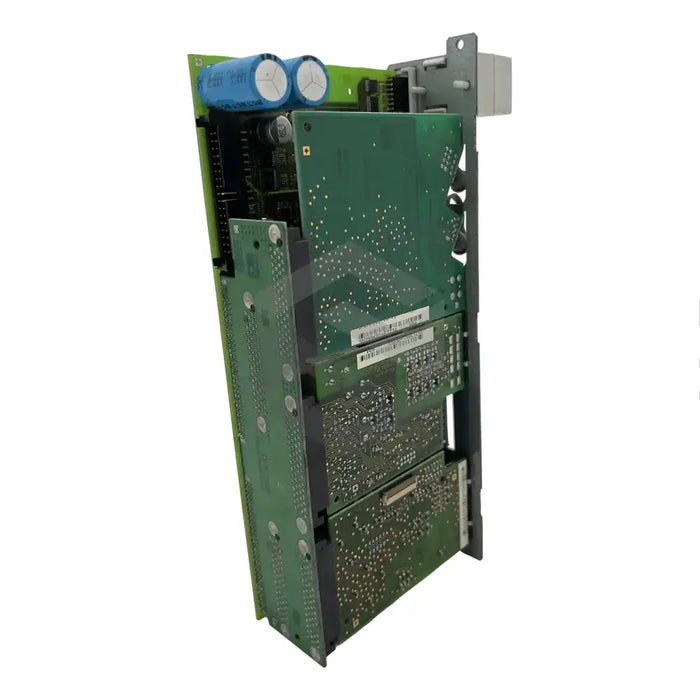

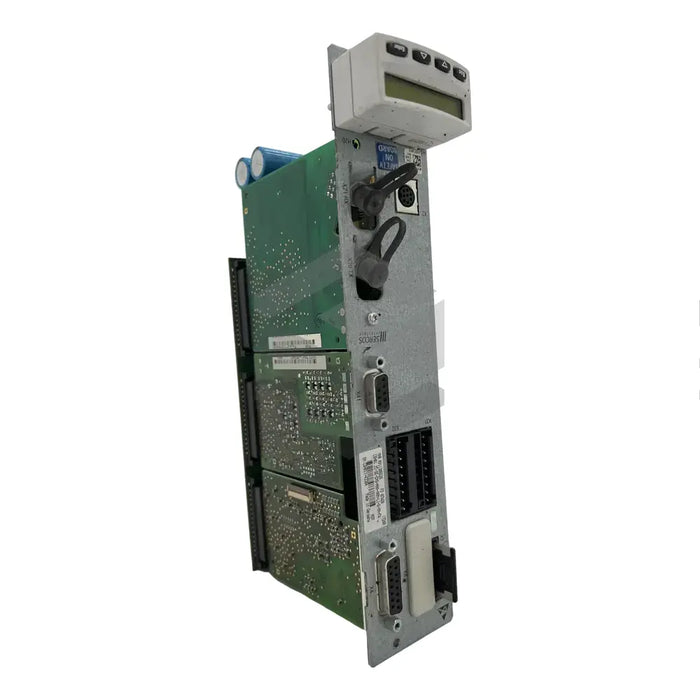

The R911305535 (CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW) is an advanced control module produced by Bosch Rexroth Indramat, integral to drive control systems. It must be installed interior to the power module, otherwise, misuse risks damaging consequences. Built to adhere strictly to manufacturer-specified operating and ambient conditions, the unit involves a fiber-optic cable-connected SERCOS interface, with individual pin assignments for data transmission and reception. The device incorporates a multimedia card to save or access data and also has a Type 2 relay contact at connection points X31.1 and X31.2.
This controller module includes two digital inputs equipped with probe capability and is protected against overload and short circuiting in the digital outputs. The R911305535 (CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW) leverages an adapter from the D-Sub connector to the terminal connector for assured safety and uses ferruled wire ends for screw terminal block connections. Working at variable power consumption rates according to module type, the system can be configured to meet specific requirements. Included with the section is an 8-pole MiniDin female connector for RS 232 serial interface at the X2 connection point. Suitable for non-residential use, this component must be installed upright and is best utilized with circuit breaker-protected mains. Its high leakage current and housing voltage should be noted. The R911305535 (CSH01.1C-SE-ENS-NNN-NNN-L1-S-NN-FW) can be shipped globally.
