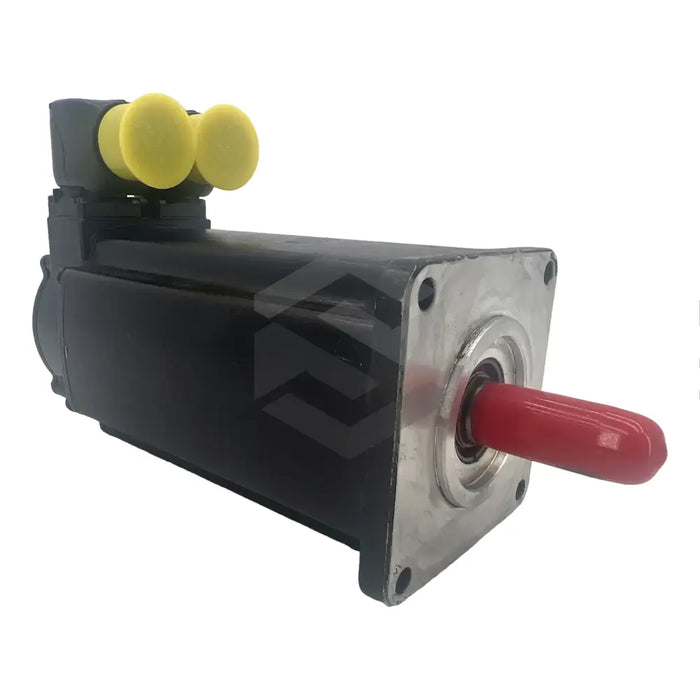

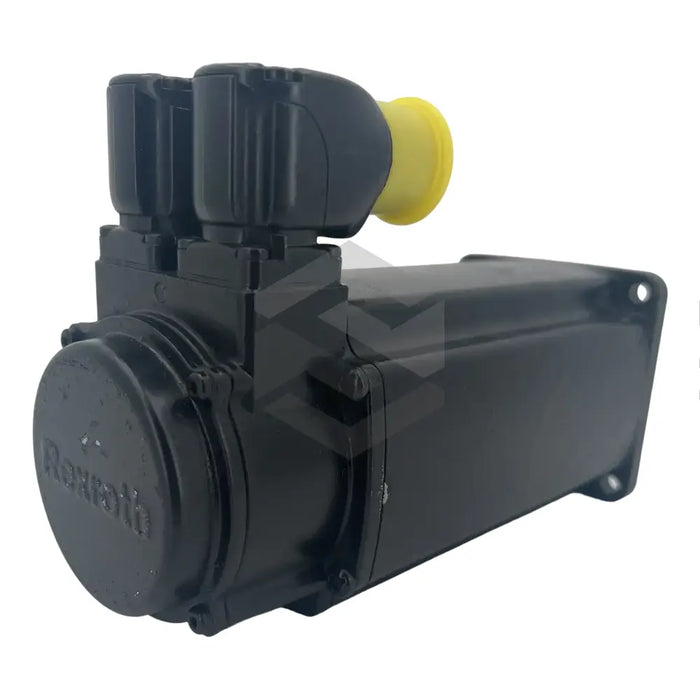

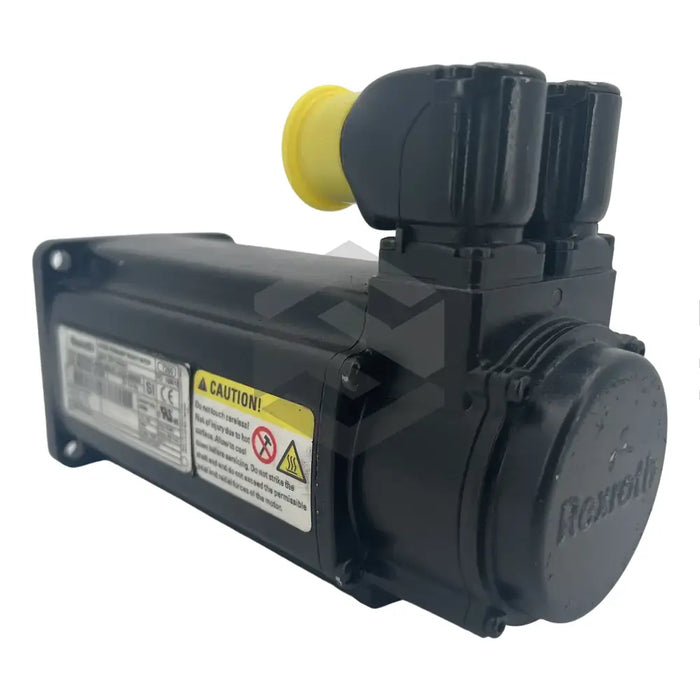

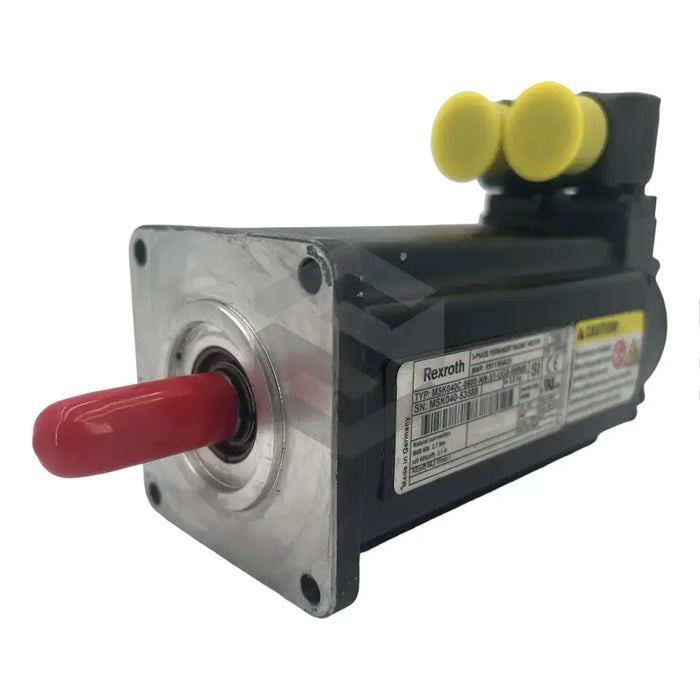

product Main (Front Left) image of R911305623

R911305623

by Bosch Rexroth Indramat
$4,040.03 - $4,040.03
$4,040.03
$4,040.03 - $4,040.03
$4,040.03
In Stock, Ships 1 - 3 Days
The R911305623 (MSK040C-0600-NN-S1-UG0-NNNN) is a high-quality synchronous motor developed by Bosch Rexroth Indramat, who are known for their dynamic, multi-purpose industrial products. This model utilizes a natural cooling system, which enhances efficiency and usability. Adherence to operating, mounting, and installation instructions is essential to prevent motor damage and ensure exceptional longevity and safety. The R911305623 (MSK040C-0600-NN-S1-UG0-NNNN) performs optimally within an ambient temperature scope of 0°C to 40°C. It allows a peak torque of 8.1Nm and a maximum current of 12.4A. At a motor standstill of 60K, it produces a continuous torque of 2.7Nm and maintains a continuous current of approximately 3.1A. When the motor is at a standstill at 100K, the continuous current isn't available, but the continuous torque boosts to 3.1 Nm. At a temperature of 20°C, the winding inductivity is 21.3Nm and the leakage capacitance is 2.0NF. The winding resistance stands at 3.9 Ohms, the constant torque at 0.95Nm/A, and the constant voltage at 58.2 V/min-1. This motor operates at a speed of 7500 min-1 and is classified under insulation class F (EN 60034-1). It has a protection degree of IP65, a thermal time constancy of 16 minutes, and an inertia of 0.00014 kg*m2 sans brake. The Inertia brake can be added if required.
30 Day Warranty
Technical Specifications
  • Winding Inductivity: 21.3 Nm
  • Protection Degree: IP65
  • Peak Torque: 8.1Nm
  • Winding Resistance at 20°C: 3.9 Ohms
  • Moment of Inertia without Brake: 0.00014 kg*m2
