R911305634

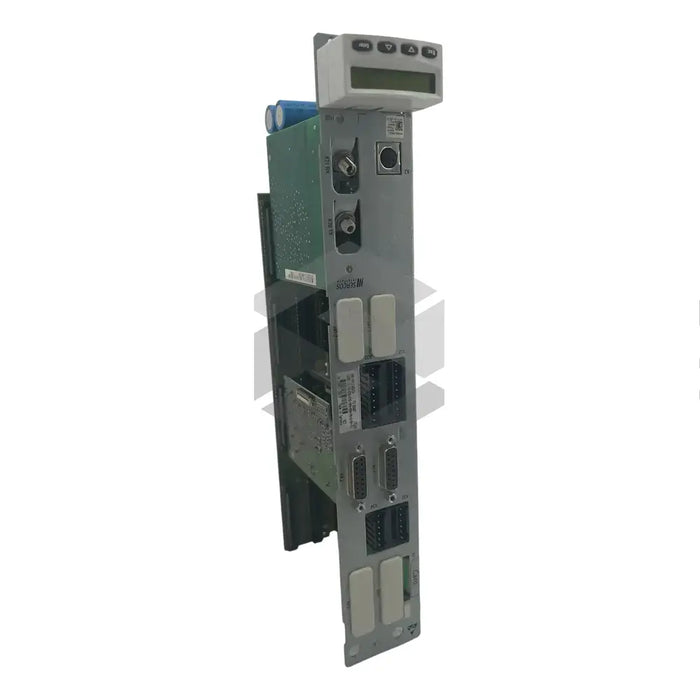

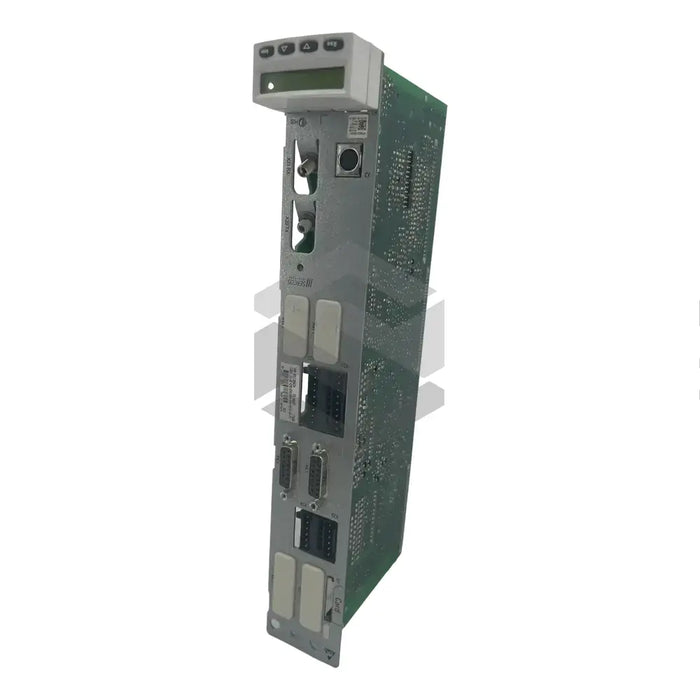

The R911305634 (CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW) is a Bosch Rexroth Indramat-manufactured control section that is integrated within the power section of a drive controller. This unit is environmentally friendly, excluding harmful components such as asbestos, mercury, and chlorinated hydrocarbons. The 24VDC circuit board has a power consumption of 9W and hosts two terminal connectors with 0V and 24V voltage ratings. Outfitted with a standard control panel, the module can be globally dispatched via reliable vendors.
This unit requires careful handling, particularly when managing digital outputs near low-resistance entities. Various functions, including setting analog outputs and drive address, can be regulated through the standard control panel. Nonetheless, interactions with the module during the ON state of the drive controller are discouraged. The Hiperface/1Vpp encoder operates at a typical voltage of 11.6V, a power consumption of 6W, and a maximum output current of 500mA. Other features, such as analog inputs and digital outputs, comply with the IEC 61131 standards. Furthermore, the SERCOS interface possesses a distortion LED and can be positioned on the Option MC slot of the control section. Parallel mounting of the analog and digital inputs is utilised to reduce the analog input resistance. Additionally, the X2 connection point allows for RS232 serial interface connections. However, the control section should be used in a specific position under ambient conditions, mainly within machine tools or mounting and handling systems.
