R911306054

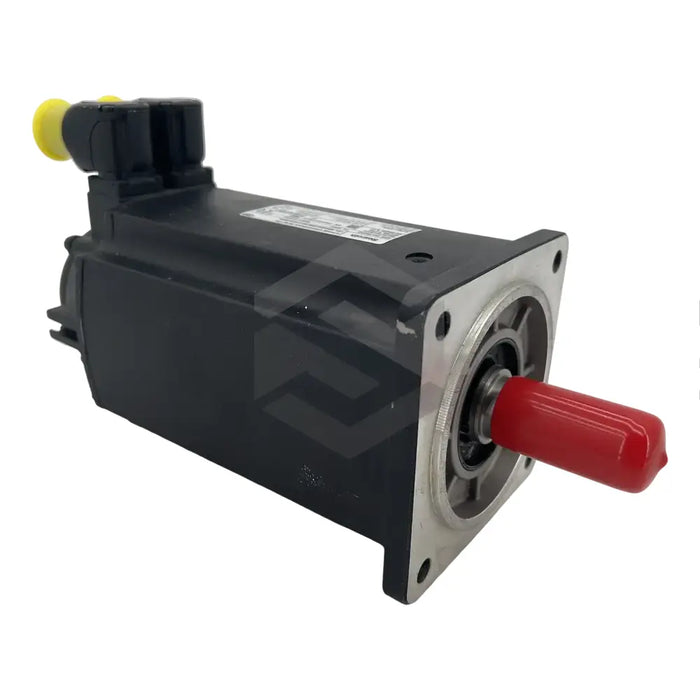

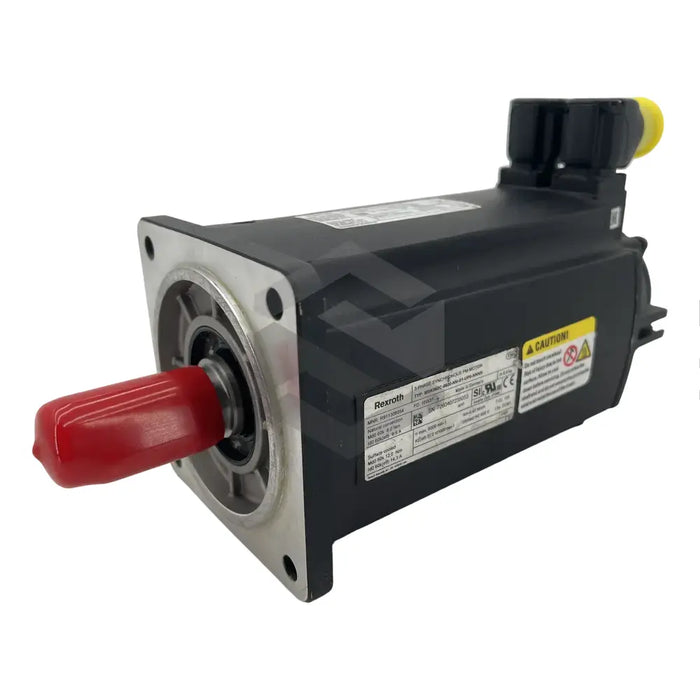

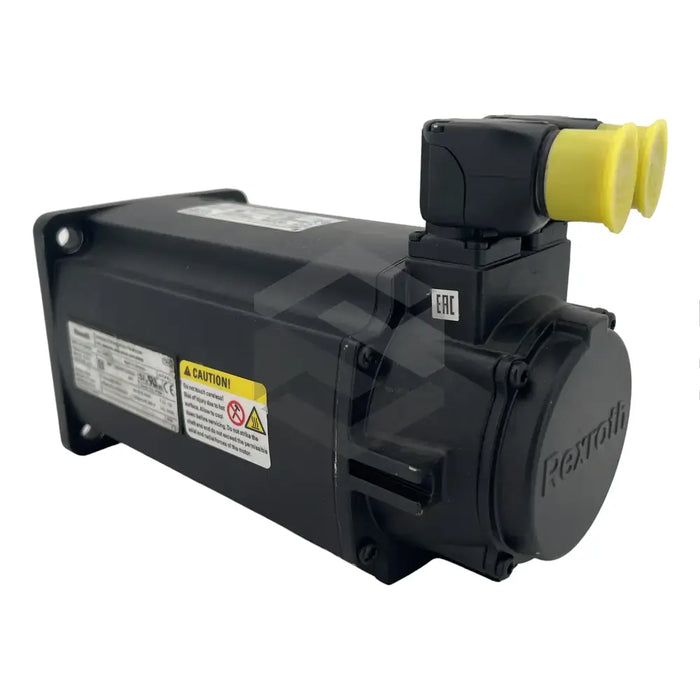

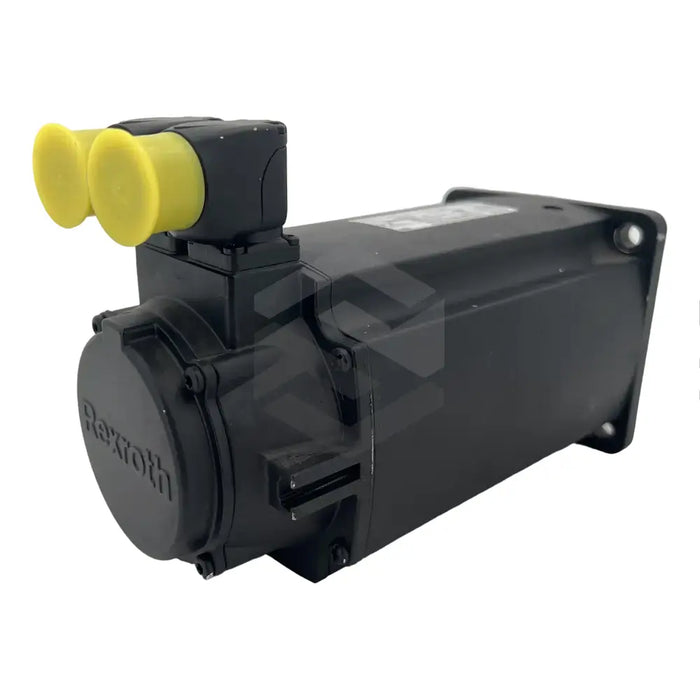

The Bosch Rexroth Indramat R911306054 (MSK060C-0600-NN-S1-UP0-NNNN) synchronous motor is a premier product, popular among machine users, innovators, and designers for its high efficiency, cost-effectiveness, and durability. Adaptable to a variety of appliances, the motor can be customized to cater to specific machine requirements. It requires a cooling mechanism, such as natural or surface cooling, to maintain optimal ambient temperature.
When utilizing natural cooling and at an above-temperature of 60K, the continuous torque at standstill is about 8Nm and the current at standstill is 9.5A. At 100K overtemperature, the continuous current is 10.5A and the torque is 8.8Nm. In surface cooling, only the continuous torque operates, standing at 10.4 Nm. The motor's maximum current is 38 Amps with a peak torque of approximately 24Nm. With a constant voltage of 57V/min-1 at 200C, the torque constant is 0.93Nm/A and the winding resistance is 0.8Ohms. It operates on 4 poles with a winding inductivity of 8.6mH and has a maximum speed of 6000 min-1. The thermal time constant is 14 minutes and the motor works best at temperatures ranging from 0-400C. The device's leakage capacitance is estimated to be at 2.2nF.
