R911306055

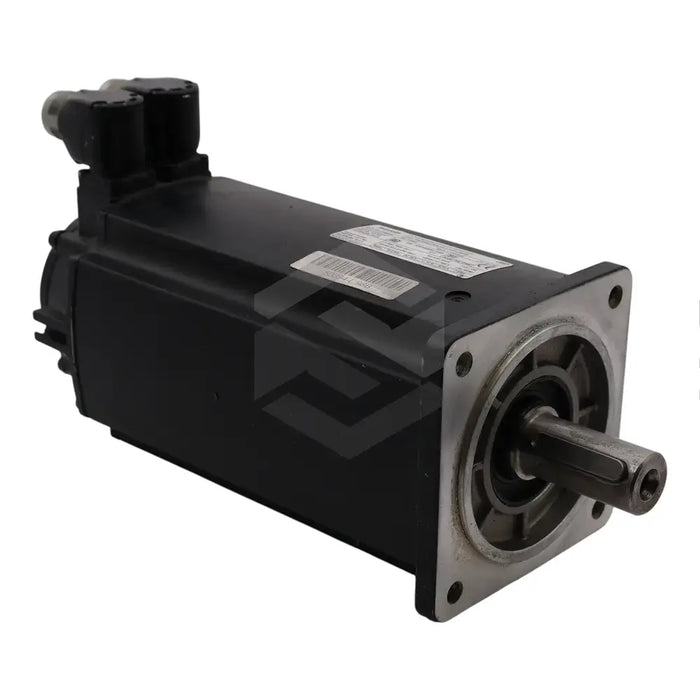

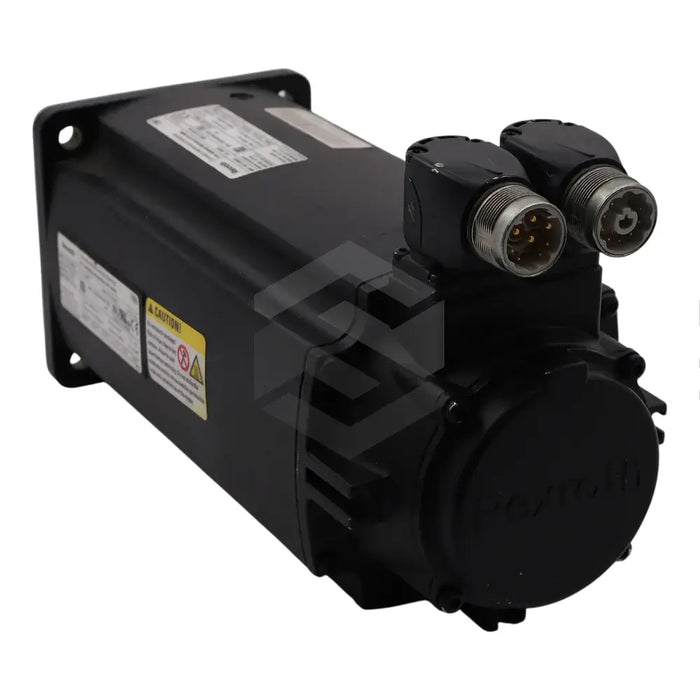

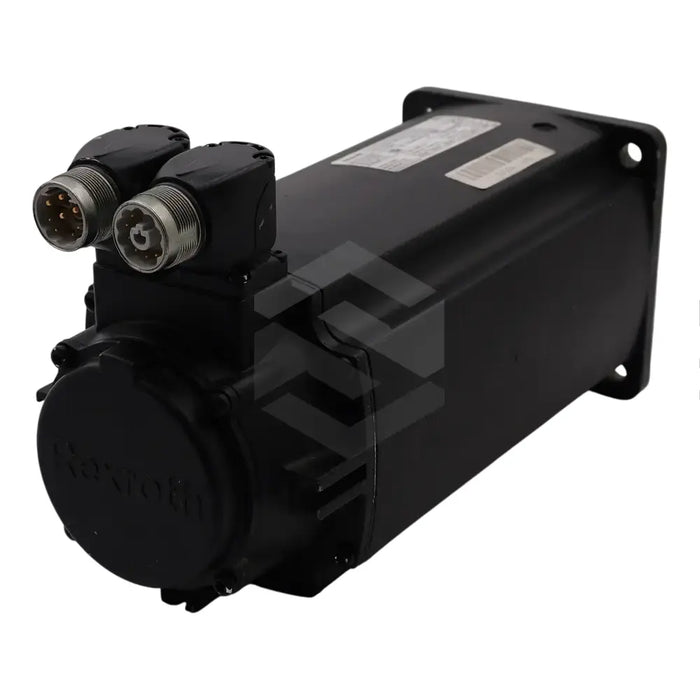

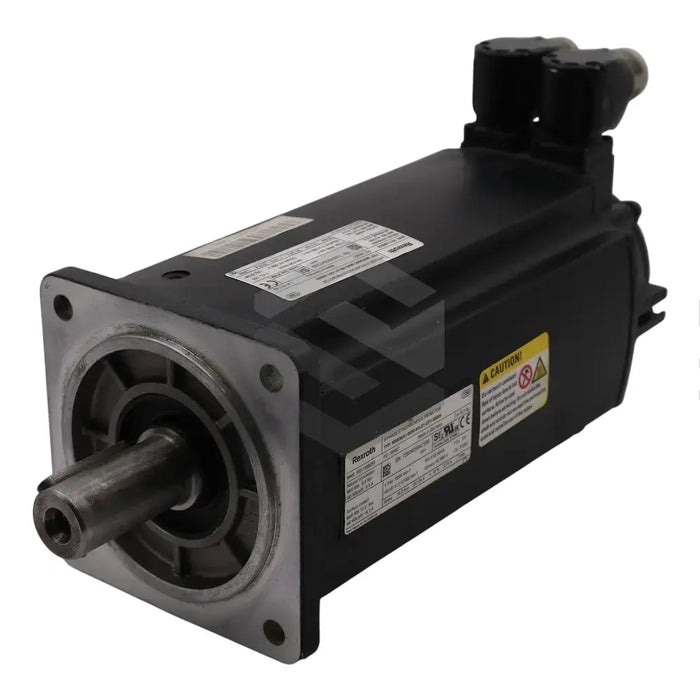

The R911306055 (MSK060C-0600-NN-S1-UP1-NNNN) is a high-performing synchronous servo motor produced by Bosch Rexroth Indramat. It belongs to the IndraDyn S family of MSK series servo motors, which are known for their wide power spectrum and exceptional torque density. These motors are ideal for various high-speed applications such as machine tools, printing and paper-processing machines, robots, and metal-forming machines. They also serve as key components in the Rexroth IndraDrive drive system.
Notably, the R911306055 (MSK060C-0600-NN-S1-UP1-NNNN) model features an integrated single-turn absolute encoder with a Hiperface interface that operates based on an optical measuring system, enhancing the precision control of the motor's speed and position. The system accuracy is ±80 angular seconds, and it records the absolute indirect position of the motor within a mechanical motor rotation. It also carries a data memory that holds crucial information for fast and damage-free adaptation to its drive controller. The model comes with an electrically released holding brake with a torque of 10Nm, a voltage of 24V, and a current of 0.25A. Its main role is to maintain the axis steadiness when the machine is de-energized. The output shaft of the R911306055 (MSK060C-0600-NN-S1-UP1-NNNN) is designed with an optional key per DIN 6885 to assure a form-fitting torque transmission with low shaft hub connection needs.
