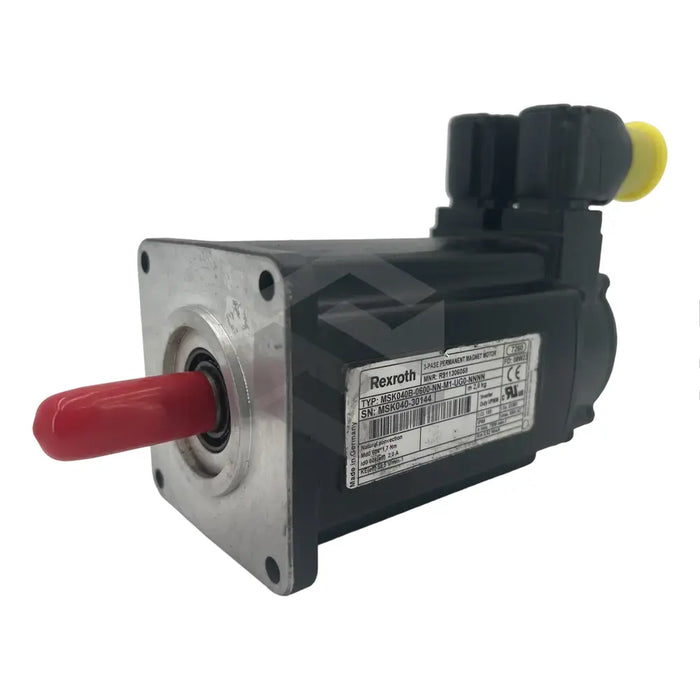

product Main (Front Left) image of R911306058

R911306058

by Bosch Rexroth Indramat
$1,758.14 - $1,758.14
$1,758.14
$1,758.14 - $1,758.14
$1,758.14
In Stock, Ships Today
The R911306058 (MSK040B-0600-NN-M1-UG0-NNNN), manufactured by Bosch Rexroth Indramat, is an MSK synchronous motor with a frame size of 040 and a frame length of B. The motor features a winding code of 0600 and an integrated multiturn optical encoder with 128 signal periods. The 240-degrees rotatable power / feedback connector and a smooth, sealed motor shaft, ensuring proactive protection against harmful contaminants, enhance its functionality. Notably, it lacks a holding brake. Transportation of the motor offers an optimum temperature range of -20 to 80 degrees Celsius and requires pristine conditions devoid of salt mist. For storage, maintain the motor in its original packaging in a dry, dust-free, vibration-proof location obscured from direct light, within a temperature range of -20 to 60 degrees Celsius. Prolonged storage over 60 months necessitates replacement of bearings and the encoder. The R911306058 (MSK040B-0600-NN-M1-UG0-NNNN) can operate at a rated maximum speed of 7500 RPM with an IP65 rated motor housing ensuring protection from dust and low-pressure water jets. Operating noise levels don't exceed 75 dB while the motor provides a maximum torque of 5.1 Nm and a maximum current of 8 Amps. It also possesses a thermal time constant of 13 minutes. Ensure qualified personnel administrate the installation process.
30 Day Warranty
Technical Specifications
  • Power/Feedback Connector: 240-Degrees Rotatable
  • Maximum Motor Current: 8 Amps
  • Sound Pressure Level: Does Not Exceed 75 dB
  • Protection Rating: IP65 (safe from dust and low-pressure water jets)
  • Product Type: MSK Synchronous Motor
