R911306060

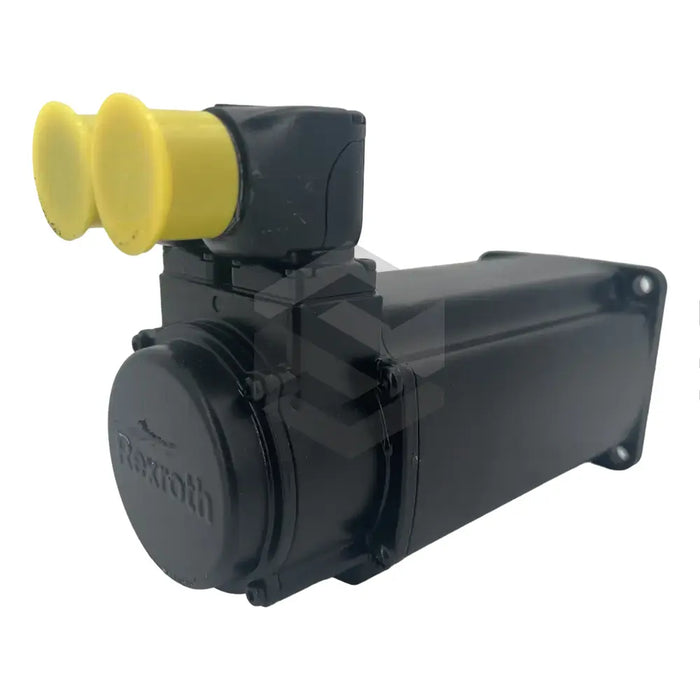

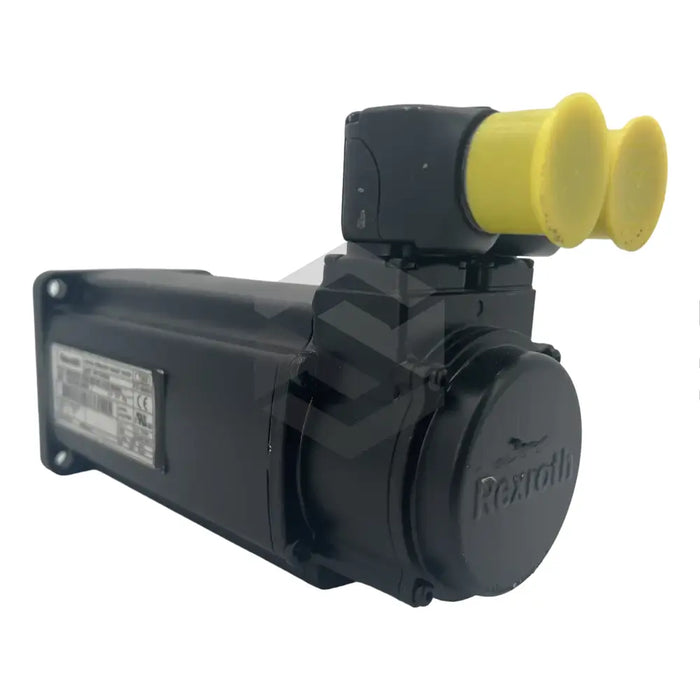

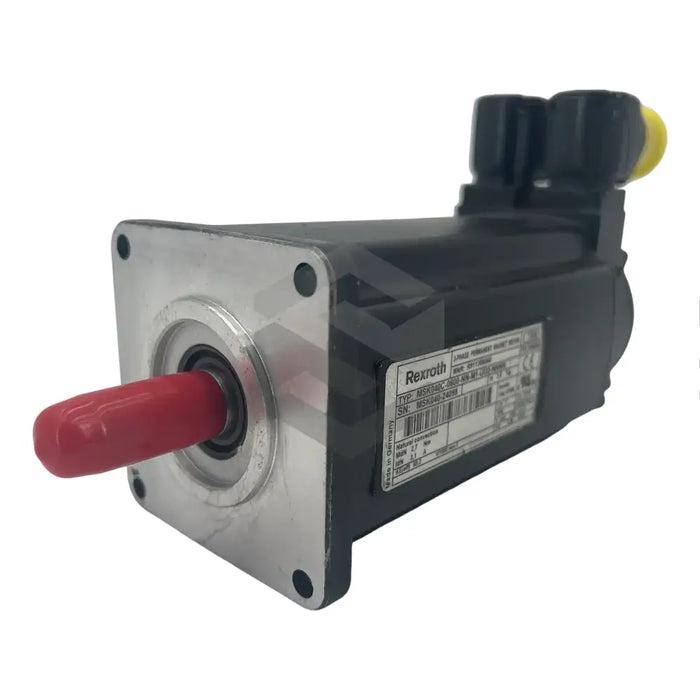

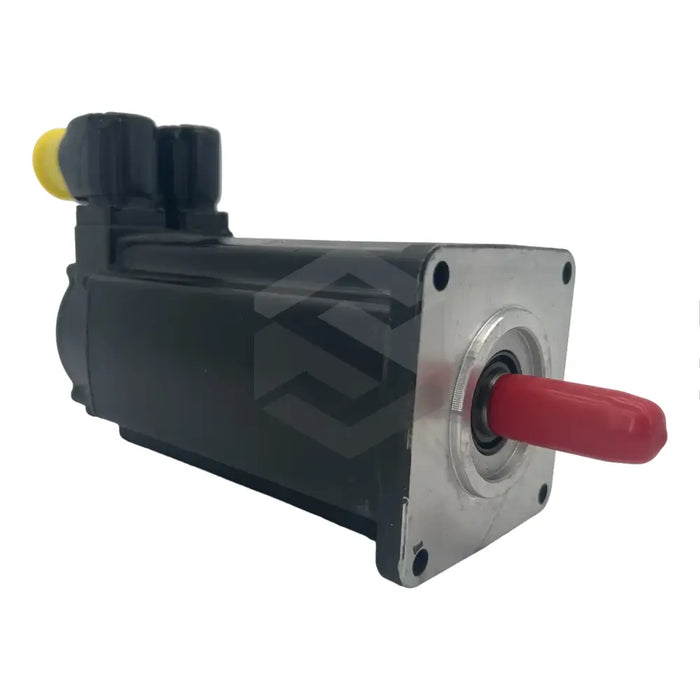

The R911306060 (MSK040C-0600-NN-M1-UG0-NNNN) motor, designed and built by Bosch Rexroth Indramat, reaps the benefits of progressive technology and excellent engineering standards. Known for their superior drive controllers, power cables, and synchronous motors, Bosch Rexroth has become globally recognized. This particular model, the R911306060 (MSK040C-0600-NN-M1-UG0-NNNN), stands out with its detailed technical specifications intended to guide safe transporting, mounting, and storage while adhering to the natural cooling method.
Stationary operation of the motor at 60K will require a continuous torque of 2.7 Nm and a continuous current of 3.1A. Meanwhile, at 100K standstill, the continuous current will not be applicable, but the continuous torque increases to 3.1Nm. The motor will function optimally with a maximum current of 12.4A and a maximum torque of 8.1Nm. Furthermore, the R911306060 (MSK040C-0600-NN-M1-UG0-NNNN) possesses a constant voltage of 58.2 V/min-1, a torque constant of 0.95Nm/A, and a winding resistance of 3.90 Ohms at a temperature of 20°C. Winding inductivity is set at 21.300Mh, and the component is equipped with a leakage capacitance of 2.0Nf and four pole pairs. The rotor houses an inertia of 0.00014 kg*m2 sans break, a thermal constant of 16 minutes, a speed of 7500 min-1, and generates a sound pressure under 75dB[A]. Operational temperature ranges from 0 to 40 °C. In terms of insulation and protection, it holds class F EN 60034-1 and IP65 rating, respectively.
