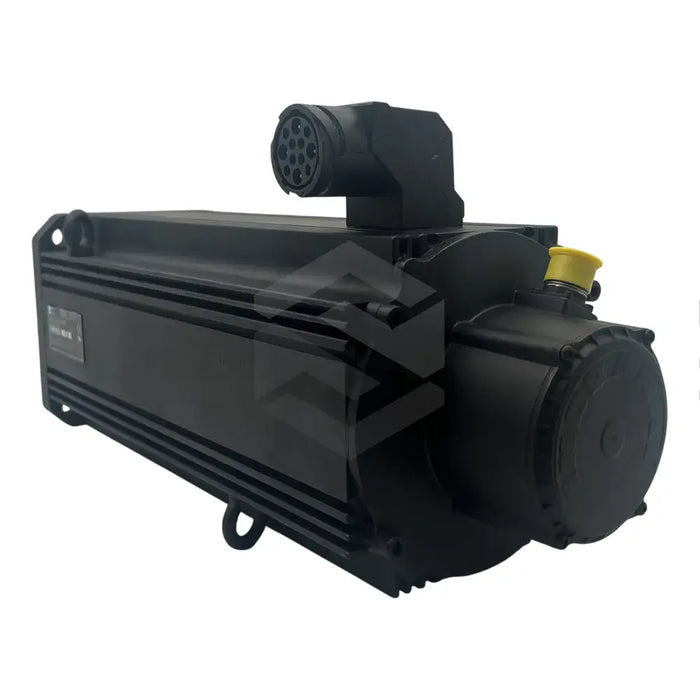

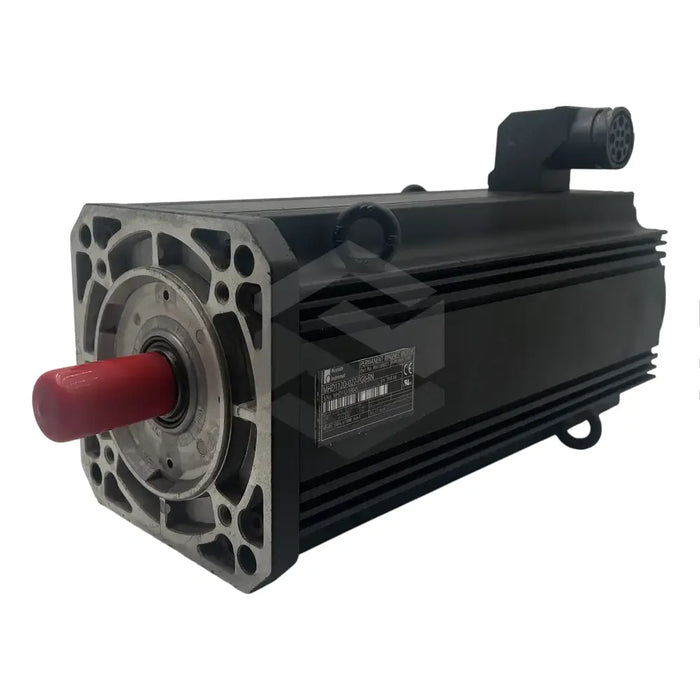

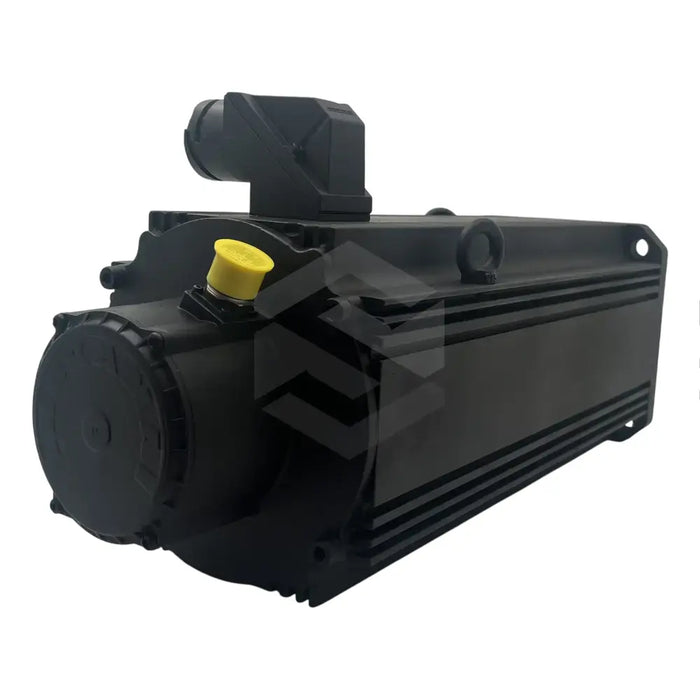

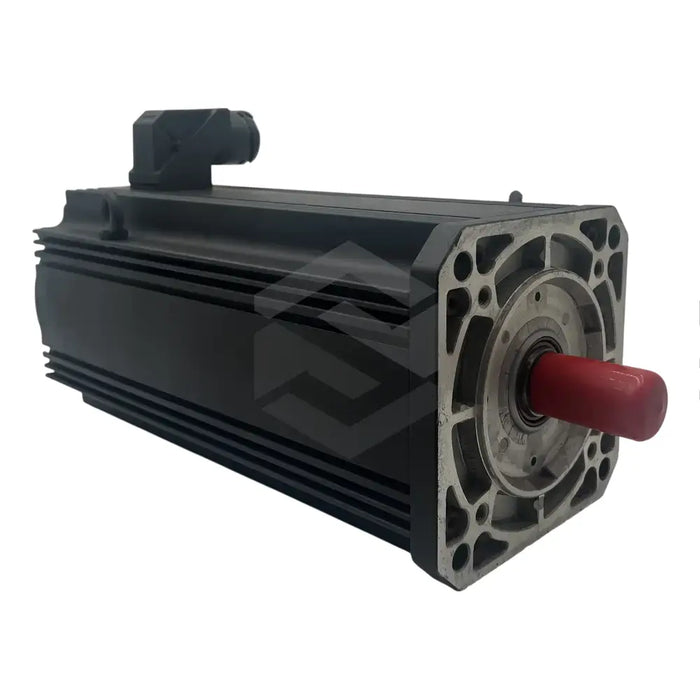

R911306075
The R911306075 (MHD112D-027-PG0-RN) is a quality product crafted by Bosch Rexroth Indramat, a leader in the production of high-performance industrial devices such as synchronous and spindle motors, inverter modules, and drive controllers. This model is a compact MHD112D synchronous motor, despite its 56 kilograms weight. Built to function optimally within a 0 to 40-degree centigrade temperature range, the motor is engineered with a plain output shaft and can reach a top speed of 3000 RPM, taking into account a peak current draw of 142.2 Amperes.
It stands out with a rated torque of 41.5 Nm and a rated performance of 11.3, consuming 20.7 Amperes and 331 Volts under rated conditions. Essential features of the R911306075 (MHD112D-027-PG0-RN) include a torque constant of 1.7 Nm/Amperes and a voltage constant valued at 154.5 Volts/1000min-1. Equipped with a multiturn absolute encoder and a power connection on the motor housing's right side, the model can be installed up to 1000 meters above sea level. It's operational mobility is within a -20 to +80-degree centigrade temperature band. Under natural cooling at 100 K, it produces a continuous torque of 72 Nm, requiring a 47.4 continuous current during standstill operation. The device has marked pole pairs of 4 and a rotor with a moment of inertia of 350 x 10-4 kgm2. Only trained personnel should handle, install, and operate this IP68-rated tool.
