R911306133
Original price
$2,148.41
-
Original price
$2,148.41
Original price
$2,148.41
$2,148.41
-
$2,148.41
Current price
$2,148.41

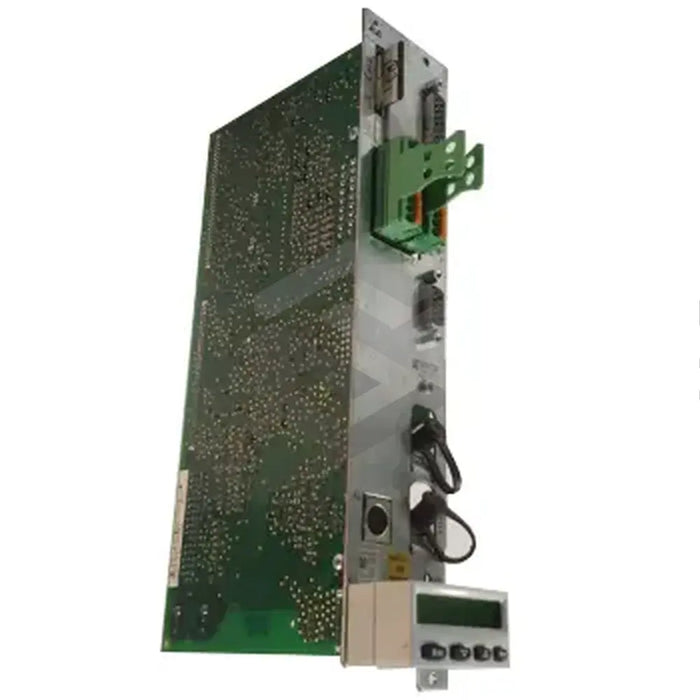

The R911306133 (CSH01.1C-PL-ENS-NNN-NNN-NN-S-NN-FW), manufactured by the esteemed Bosch Rexroth Indramat, is a high-quality device widely used in industries worldwide for automation purposes due to its impeccable performance and efficiency. This particular model is equipped with a parallel interface connection module and a standard control panel that has a low consumption of 1 watt. Furthermore, it boasts a pulse width of 100 ms with an inrush current of 4 A, supported by a power usage of 7.5 W. Kindly note that the CSH01.1 control section firmware is sold separately.
This device has four digital outputs, one analog input, and variable PWM frequency ranging between 2 kHz and 16 kHz in increments of 2 kHz. Key features also include a controlled current ranging between 62.5 and 125 microseconds, a controlled speed of 125 to 250 microseconds, and a controlled position of 250 to 500 microseconds. Appropriate application, installation, and usage are subject to the user’s thorough comprehension of the product literature. Its convenience lies in its adaptability, making it suitable for multiple applications with the necessary manual accessories and attachments. This device, particularly popular in printing and food packaging industries, offers robust and cost-effective motion control solutions with extended firmware facileness. Note that the R911306133 (CSH01.1C-PL-ENS-NNN-NNN-NN-S-NN-FW) model also includes a 6 W-consuming InDradyn/1TTL encoder in the X4 slot and requires configuration before use.
30 Day Warranty
Technical Specifications
