R911306388

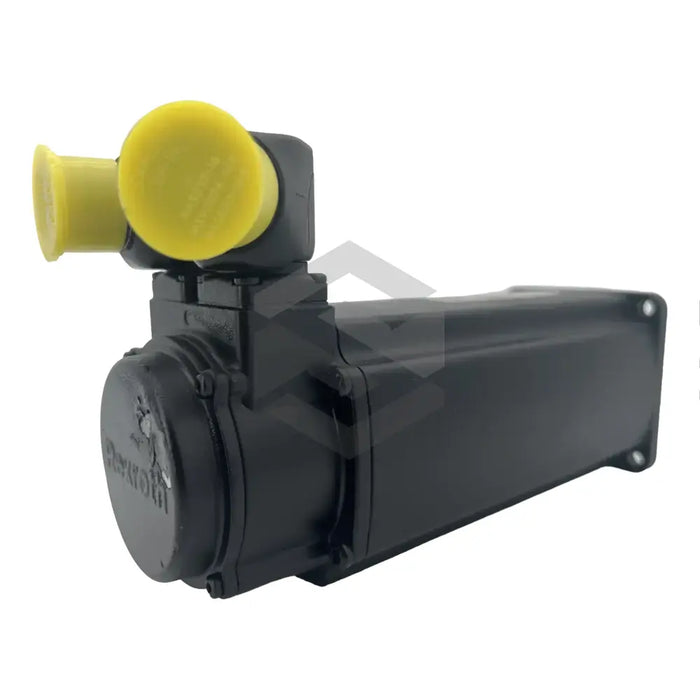

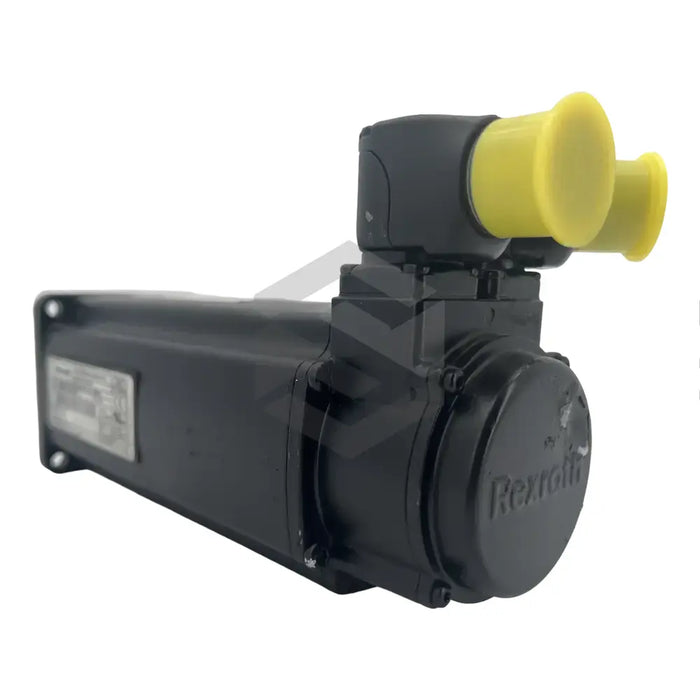

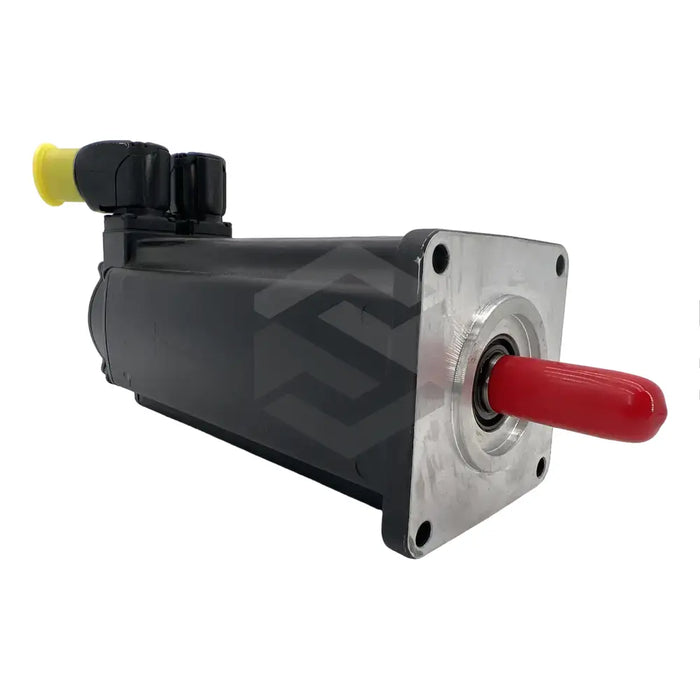

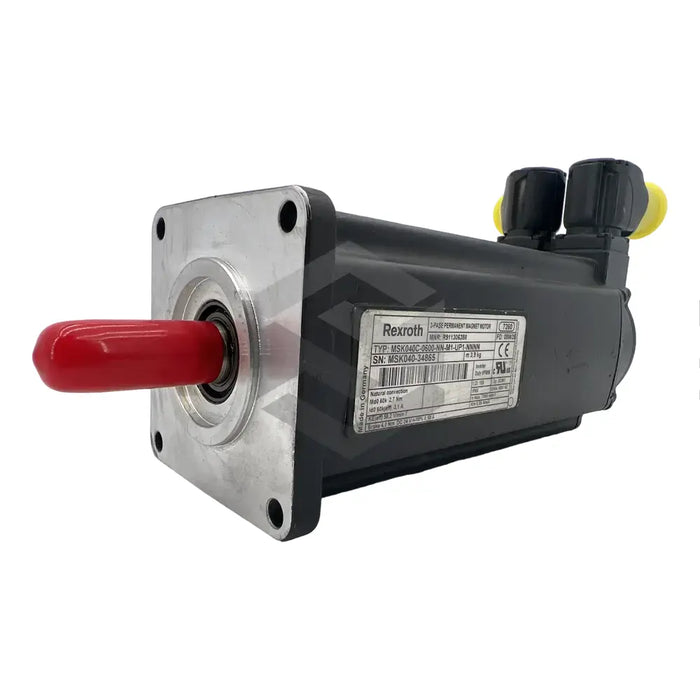

The R911306388 (MSK040C-0600-NN-M1-UP1-NNNN) motor, a high-quality product from Bosch Rexroth Indramat, boasts a robust structure, incredible functionality, and extensive configurability. Bosch Rexroth Indramat is renowned for creating top-tier products that meet and exceed consumer expectations. Aspects of this product, like the HMI's, IndraDrive, and other advanced automation solutions, set the industry standard. The company also offers comprehensive manuals to ensure safe usage and enhance product longevity. The subsequent information provides important details about the optimal performance parameters of the R911306388 (MSK040C-0600-NN-M1-UP1-NNNN) motor.
When utilizing a natural cooling system, the R911306388 (MSK040C-0600-NN-M1-UP1-NNNN) motor operates efficiently under the following parameters: a stable voltage of 58.2 V/min-1 and a consistent torque of 0.95Nm/A at 20°C, with a winding resistance of 3.90 Ohms. The winding inductivity and leakage capacitance stand at 21.30 mH and 2.0Nf, respectively. The motor can withstand a maximum current of 12.4A and maximum torque of 8.1Nm. At a standstill and 60K, the continuous torque and current are 2.70 Nm and 3.1A, respectively. However, without current and at a standstill at 100K, the continuous torque increases to 3.1Nm. On the mechanical front, the insulation class is EN 60034-1 (F), and the degree of protection is IP65, with viable operation temperatures between 0 to 40 °C. The motor’s speed reaches 7500 min-1.
