R911306439
Original price
$2,072.08
-
Original price
$2,072.08
Original price
$2,072.08
$2,072.08
-
$2,072.08
Current price
$2,072.08

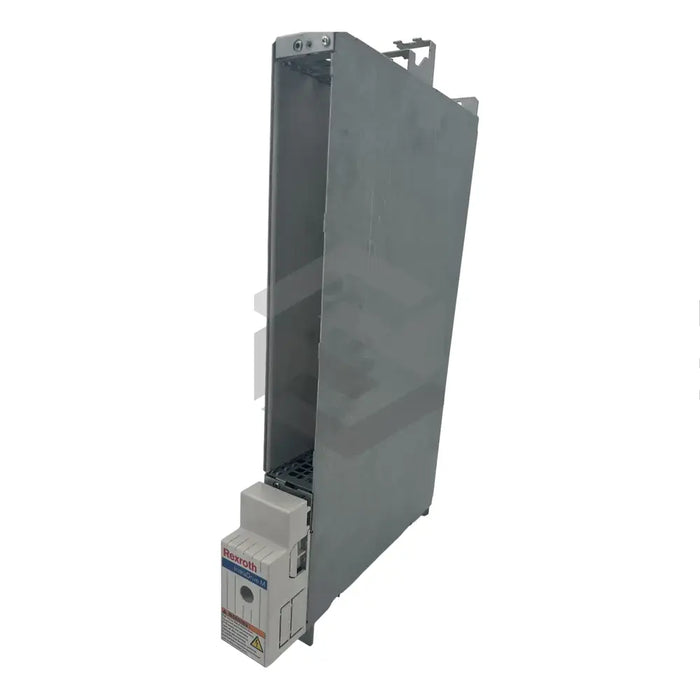

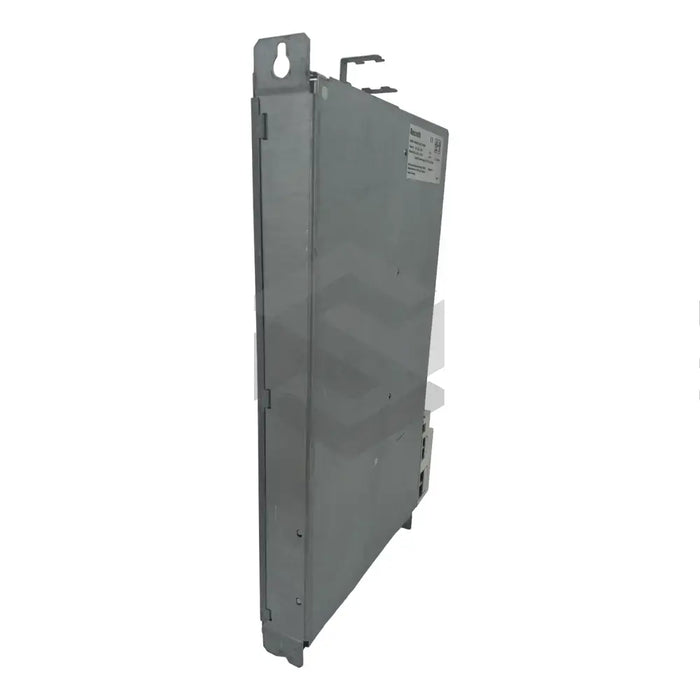

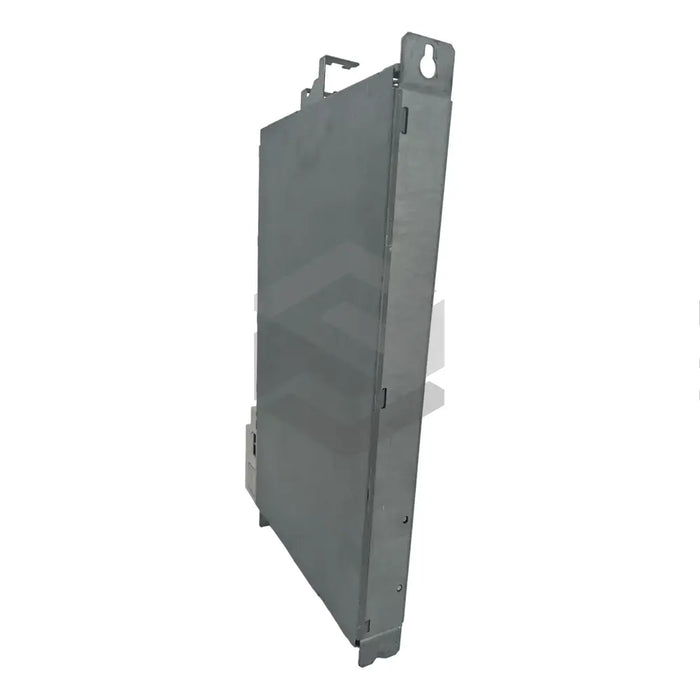

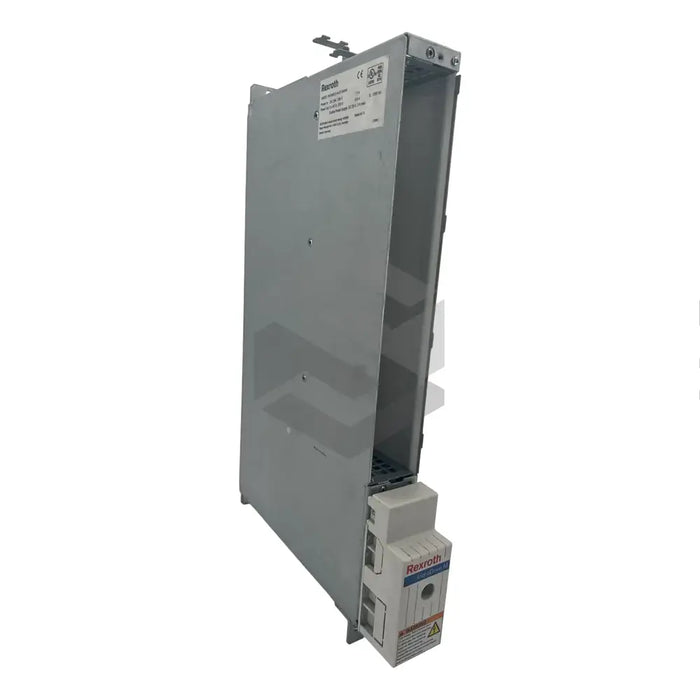

The Bosch Rexroth Indramat R911306439 (HMD01.1N-W0012-A-07-NNNN) is a power section that functions as an accessory for the manufacturer's drive controllers. Belonging to the HMD01 series, this module has a line code of 1 and a design code of 1. For safety reasons, it should not be handled within 30 minutes after being switched off to allow the live capacitors adequate time to discharge. Other features include a DC bus voltage that ranges from 254V to 750V, an identification type plate, and internal air circulation cooling via an integrated blower. To ensure proper care, the module must only be handled using proper tools. The power section is UL Listed and CSA Certified, measuring 440 x 262 x 50 mm (H x T x B), and comes without a power supply.
Equipped with a wear-free electronic contact, this power section has a current-carrying capacity of 1.5A per axis and two coded inverter outputs. It can be connected to a bus module and a motor from the manufacturer. The module supports cross-communication functionality and has an effective current rating of 12A with a DC bus nominal voltage rating of 700VDC. Weighing only 5.52kg, it can be shipped worldwide and is compatible with IndraDrive M series of drive controllers.
![](http://servosupplier.com/cdn/shop/t/3/assets/verified-user-shield-check.svg.med.png?v=160087244090755286241706801379)
30 Day Warranty
Technical Specifications
