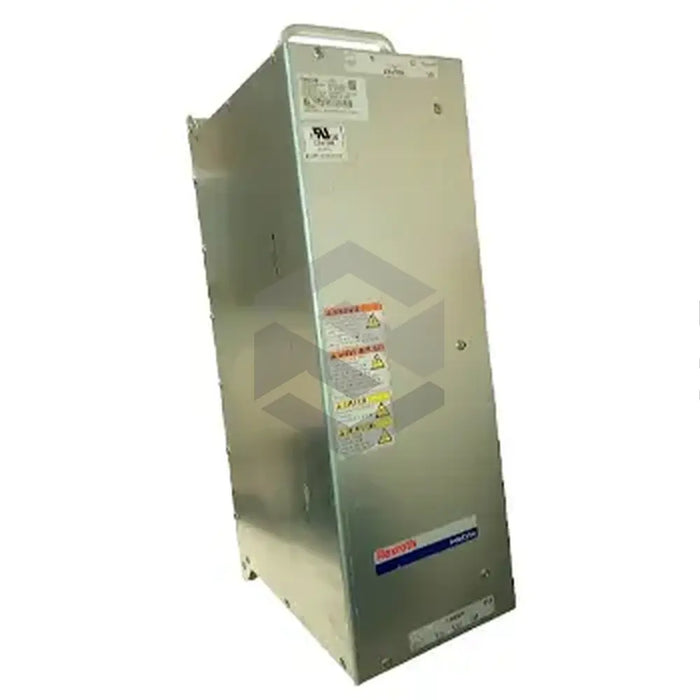

R911306536
The R911306536 (HNF01.1A-M900-E0202-A-480-NNNN) is a top-notch interference suppression filter from Bosch Rexroth Indramat, a well-known name in the automation systems industry. Highly effective in managing interference voltage signals up to 480 Volts, the R911306536 (HNF01.1A-M900-E0202-A-480-NNNN) ensures compliance with permissible EMC values. This mains filter is especially beneficial in drive systems utilizing long cables and operating on multiple axes. The innovative design enables flexible mounting and features a standard configuration which facilitates vertical air passage preventing heat entrapment within the device enclosure. For enhanced heat reduction, a fan is enclosed to promote rapid heat dispersal.
Designed to control leakage current resultant from line capacitance, R911306536 (HNF01.1A-M900-E0202-A-480-NNNN) curbs high-frequency pulse-like signals typically produced during electric or mechanical switching. Notably, this mains filter is in sync with the power supply unit, restricting these signals sufficiently. By doing so, it inhibits the progression of interference signals via conductive material and cable networks, thus averting system crashes, uncontrolled functionalities, and data errors. Best used in conditions with humidity levels below 95% and temperature ranges between 0-40 ᵒC, it operates on a continuous current of 202 A and dissipates power of 373W. With its protection class 3C1, it is safeguarded against damage caused by corrosive chemical agents.
