R911306579

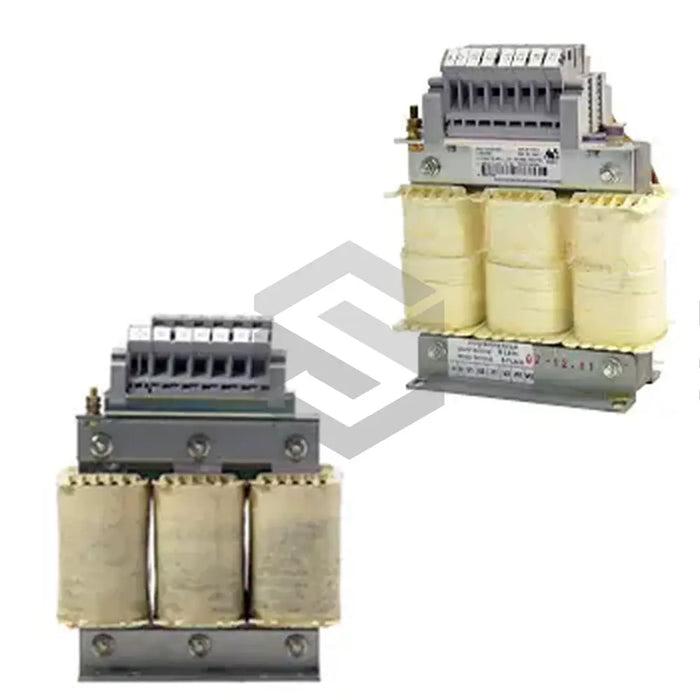

Manufactured by Bosch Rexroth Indramat, the R911306579 (HNL01.1E-0200-N0125-A-480-NNNN) is a mains choke designed to collaborate with the HCS01, HCS02 and HCS03 range of converters. The unit is specifically engineered to function optimally when the mains voltage has an asymmetry exceeding 3%. It's associated with a feeding supply system and is designed to absorb high voltage transients of microsecond lengths, safeguarding both the drive and motor. The component encompasses a steel core with copper wound coils and steel laminations, and offers additional circuit inductance. It also provides protection against incoming line voltage distortions.
The R911306579 (HNL01.1E-0200-N0125-A-480-NNNN) mains choke restricts hindering voltage harmonics and aids in ensuring seamless operation of the associated drive. Able to be oriented both vertically and horizontally, the unit's U1, V1 and W1 terminals permit a maximum connection cross-section of 70mm2. The choke features a temperature contact fitting and provides 50% nominal inductance at peak current rating. Typically placed between the AC line source and the input of a drive, the device mitigates power line distortions and filters electrical noise. Suitable for HVAC, pumping and UPS equipment, the choke which boasts a 480VAC voltage rating and 170W power rating, complies with DIN EN 60 529 specifications for IP 10 protection rating.
