series image of R911306641

R911306641

by Bosch Rexroth Indramat
$4,267.88 - $4,267.88
$4,267.88
$4,267.88 - $4,267.88
$4,267.88
Available, Shipping Varies

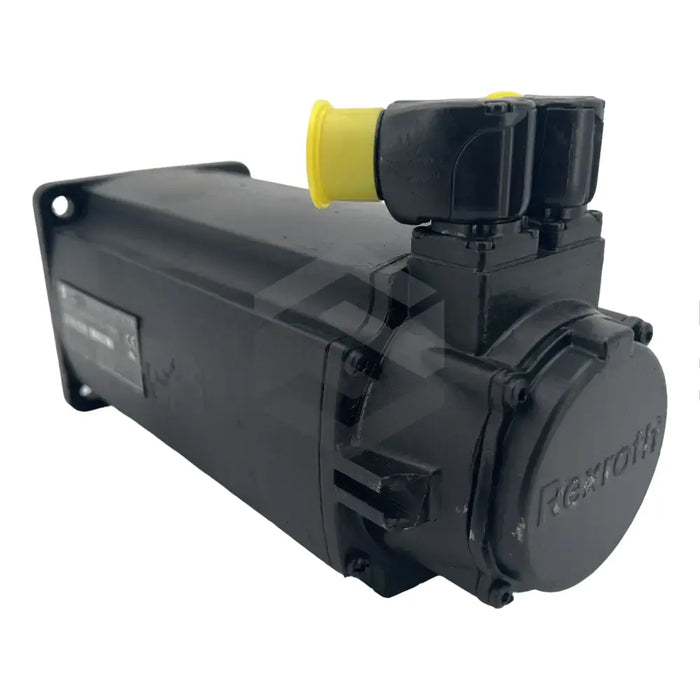

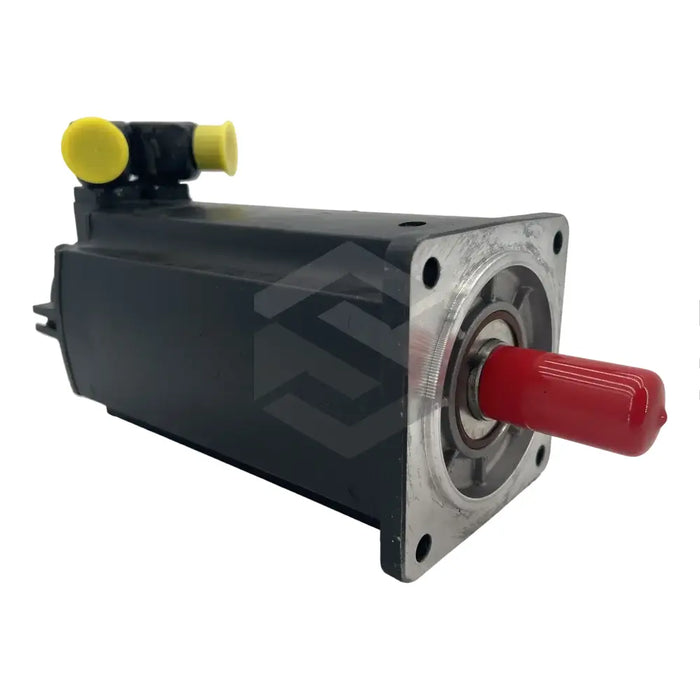

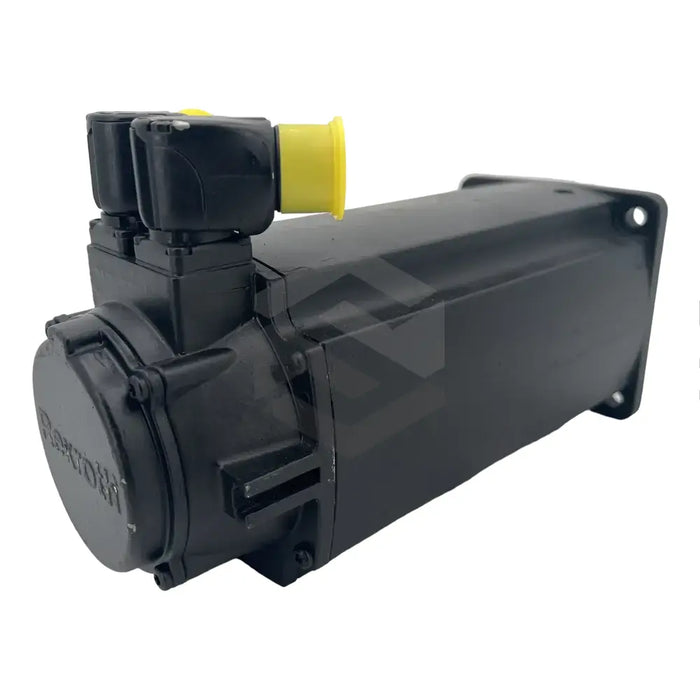

Introducing the Bosch Rexroth IndraDyn S MSK servo motor, model number R911306641 (MSK060C-0600-NN-S2-UG0-RNNN), characterized by high torque density and a wide power spectrum. Designed for a broad range of applications, these include machine tools, printing and paper-processing machines, and packaging and food-processing machines. This servo motor falls under the IndraDrive drive system, known for its synchronous operations. The R911306641 (MSK060C-0600-NN-S2-UG0-RNNN) model is specified by its dimensions, having a frame size of 060 and a frame length of C, with a maximum torque of 24.0Nm and top velocity of 6000 rpm. Its rotor inertia value is 0.00080 kgm2. The motor features an in-built single-turn absolute encoder using EnDat 2.1 interface's optical method, dispensing with a separate incremental encoder and enabling absolute, indirect positional recording within one mechanical motor rotation. Its cooling mechanism is by natural convection, qualifying it as a self-cooling motor. Rated IP 65 in compliance with IEC 60529, this motor is impervious to penetration by solid objects and water jet damage. The housing is coated in a black (RAL9005) 2K epoxy resin, resistant to diluted acids/alkalis, seawater, sewage, and common mineral oils.
30 Day Warranty
Technical Specifications
  • Torque: 24.0 Nm
  • Model: MSK060C-0600-NN-S2-UG0-RNNN
  • Top Speed: 6000 rpm
  • Applications: Machine tools, printing and paper-processing machines, packaging and food-processing machines
  • Frame size: 060
