R911307209

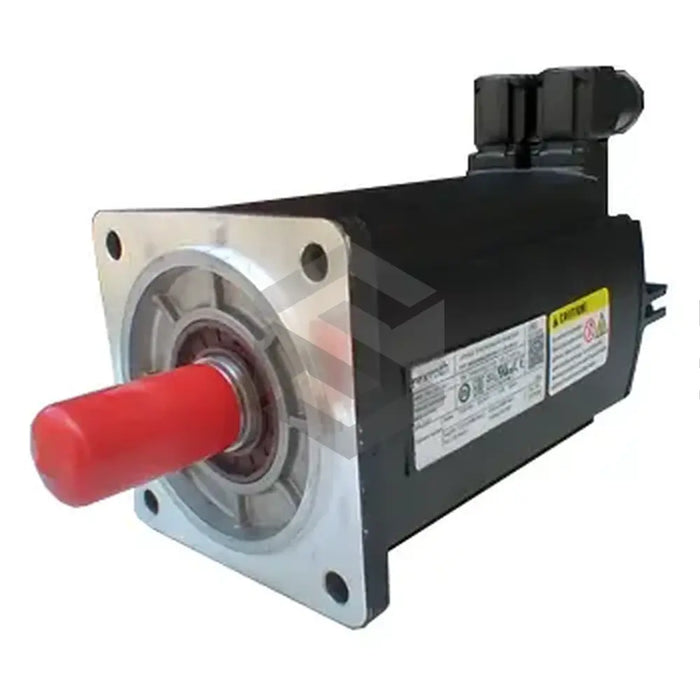

The product in focus is the R911307209 (MSK060B-0300-NN-S1-UG1-NNNN), crafted by Bosch Rexroth Indramat, a leading player in manufacturing and developing high-functioning industrial units including servo motors, drive controllers, and frequency converters. This model is optimized for performance and dependability, providing a consistent torque of 8Nm at 60k, 8.8Nm at 100k, and 12Nm at a standstill. The maximum operational speed of the MSK060 servo motor is capped at 4900 revolutions per minute. The unit comes with an electrical discharge capacity of 2.1nF, containing 4 polar pairs, and a heat stability (thermal time constant) of 4 minutes. Operate it within the recommended ambient temperature range of 0 to 40 degree Celsius, ensuring efficient heat transfer through natural or forced convection.
R911307209 (MSK060B-0300-NN-S1-UG1-NNNN) has an embedded optical encoder with a singleturn hiperface with 128 increments. The design includes a rotatable 240-degree electrical plug. It features a 24mm standard plain shaft plus a shaft sealing ring. This model, weighing 5.7kg and with dimensions of 156.5mm (height), 116mm (depth), and 231mm (length), incorporates an electronically released holding brake. It exhibits a maximum operational torque and current of 24Nm and 19.2A respectively. It's an IP65 protected unit as per IEC 60529 and insulates to a 155 rating according to DIN EN 60034-1.
