R911307216

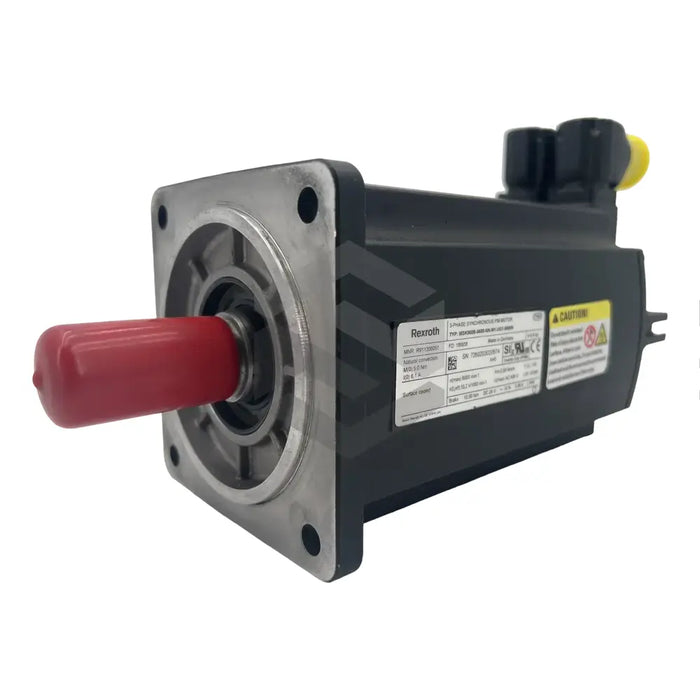

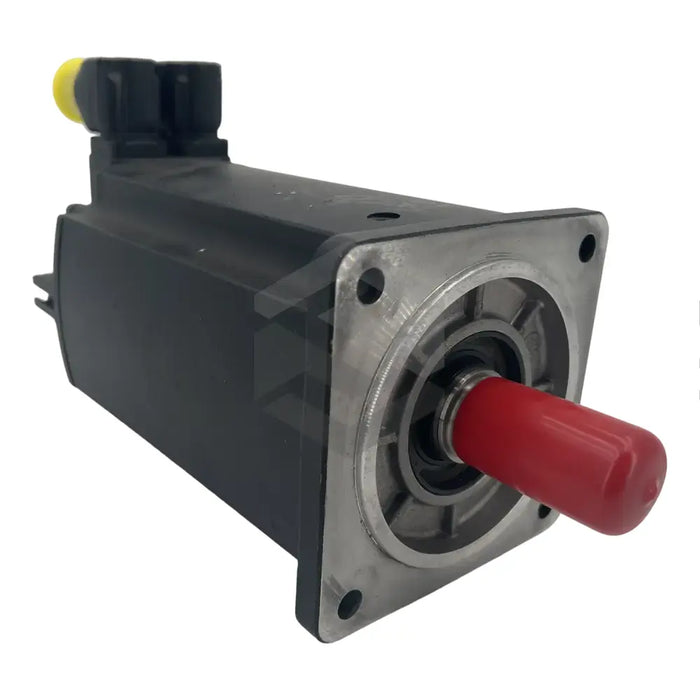

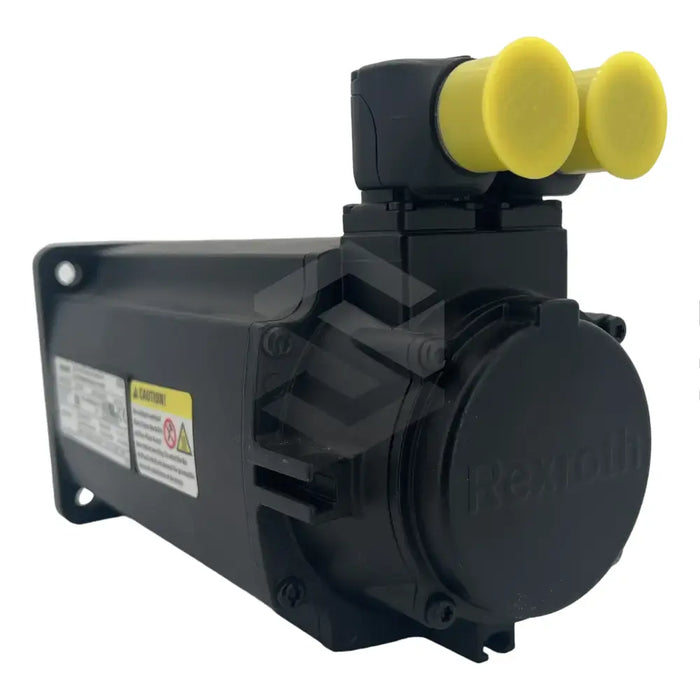

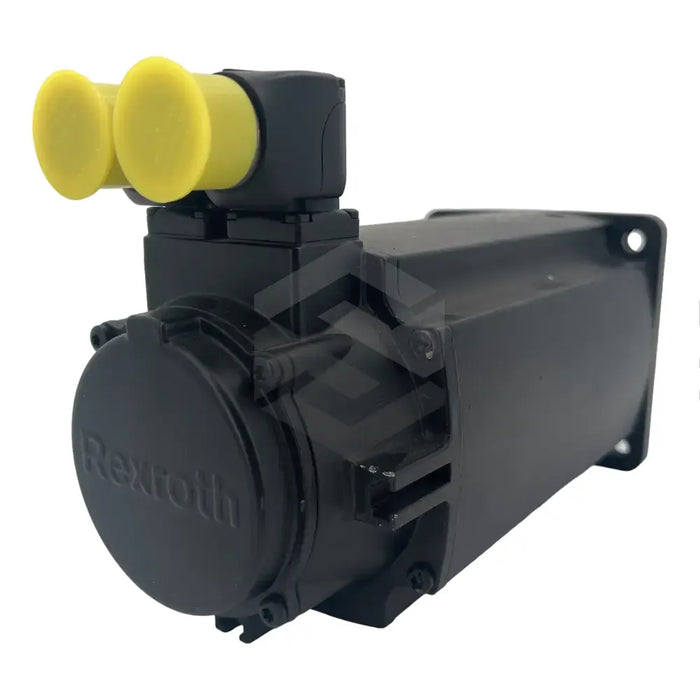

The R911307216 (MSK060B-0300-NN-M1-UG1-NNNN), manufactured by Bosch Rexroth Indramat, is a state-of-the-art, synchronous servo motor. Primarily utilized for precision tasks in technology sectors such as robotics and conveyor systems, the motor reliably controls motion, acceleration, and velocity, provided it is correctly transported, stored, and assembled. Servo motors like this operate optimally within their specified ambient conditions, with low maintenance requirements. However, failure to maintain these conditions can result in the need for more frequent repairs and upkeep. Deviations from specified conditions must be adjusted for by amending performance data and utilizing the relevant correction factors.
The R911307216 (MSK060B-0300-NN-M1-UG1-NNNN) model is equipped with a unique optical encoder that features a multiturn-absolute Hiperface interface and 128 signal periods. Its distinguishing features include an electrical connector that can rotate up to 240 degrees and a shaft sealing ring complementing its smooth shaft. It operates with a maximum current of 12 Amperes and a winding inductivity of 73 millihenry. The motor's peak torque is 15.0 Nm, and it has a holding brake with a torque capacity of 10 Nm, which is electrically released. Furthermore, it possesses a thermal time constant of 16 minutes, and weighs 6.4 kg. It has an IP65 rating according to EN 60034-5, highlighting its robustness.
