R911307219

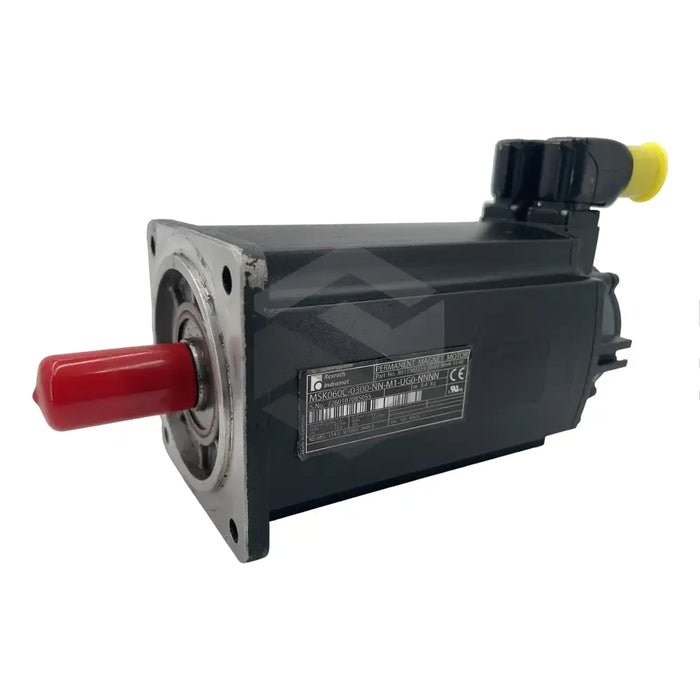

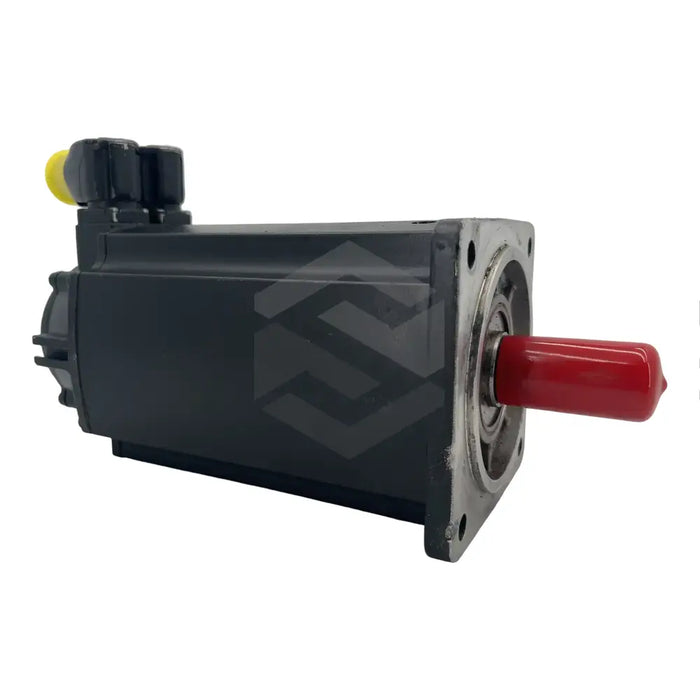

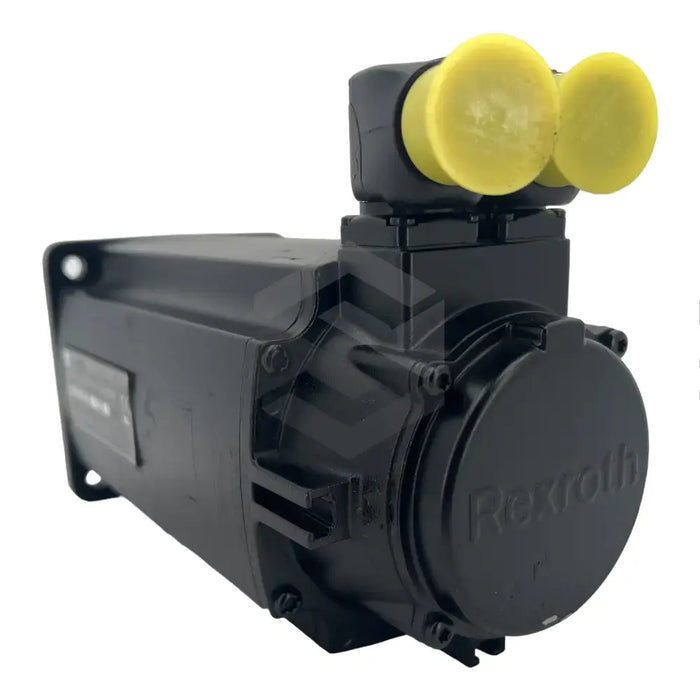

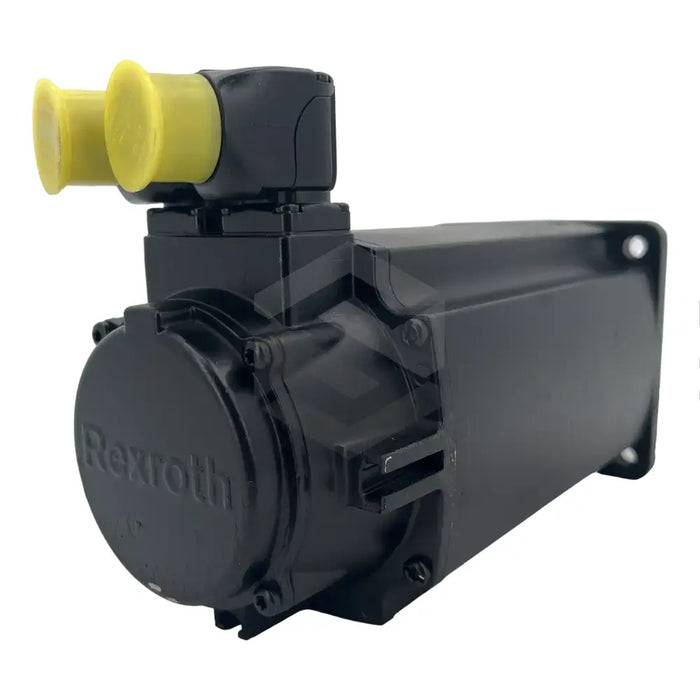

The R911307219 (MSK060C-0300-NN-M1-UG0-NNNN), a production of Bosch Rexroth Indramat, is a technically advanced, ultra-efficient synchronous motor designed for various applications. This motor is part of a broad product range characterized by robustness, long-lasting performance, and configurability, all thanks to rigorous and integrated system testing and cutting-edge technology. The product spectrum includes everything from servo and low inertia motors to drive controllers and power cables, all meticulously tested for zero defectiveness.
The synchronous R911307219 (MSK060C-0300-NN-M1-UG0-NNNN) motor supports natural and surface cooling methods, significantly impacting its parameter values. The motor, with surface cooling and at standstill, has a continuous current of 6.2A and a continuous torque of 10.4 Nm. If the overtemperature is 100K, the continuous current is reduced to around 5.5 Amps and the torque to 8.8 Nm. The motors work efficiently under an operating temperature range of 0 to 40 degrees Celsius and have a thermal time constant of 14 minutes. Optimized for high performance, the motor can reach a maximum speed of 4900 min-1. Furthermore, other technical specifications include a capacitance leakage of 2.1nH, a winding inductivity of 35.9mH, and at 20 degrees Celsius, voltage constant is 114 V/min-1, torque constant is 1.85Nm/A and the winding resistance is around 3.1 Ohms.
