R911307308

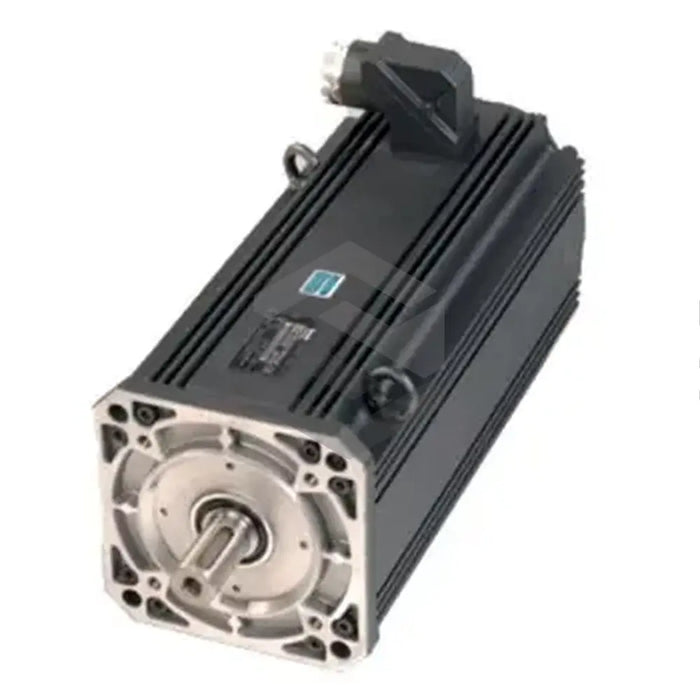

The R911307308 (MHD093C-058-PG2-AA) is a product of Bosch Rexroth Indramat, renowned for their high-caliber and budget-friendly industrial commodities including synchronous motors and drive controllers. This particular model has integrated an efficient cooling system that employs pH values of 6-8 coolant to maintain optimal motor housing temperature. The MHD093 synchronous motor features a centering diameter of 130 mm and flange dimensions of 140-150mm, compatible with any approved mounting position. The motor's unmarked output shaft and 2.6 mH winding inductance are essential features that adhere to safety and usage protocols.
A key characteristic of the R911307308 (MHD093C-058-PG2-AA) model is the prime black coating, with a layer thickness under 40 µm, which enhances its appeal across multiple industrial applications. It houses an optical encoder that offers digital servo feedback to effectively manage motor speed and positioning. The motor's insulation aligns with Class F as per DIN VDE 0530 Part 1 specifications and it weighs 23.6 kg. Engineered for demanding conditions, the motor is built with IP65 protection. To ensure optimal performance, the synchronous motor should be installed below 1000 m above sea level and operated within a temperature range of 0 to +40 degrees Celsius.
