R911307609

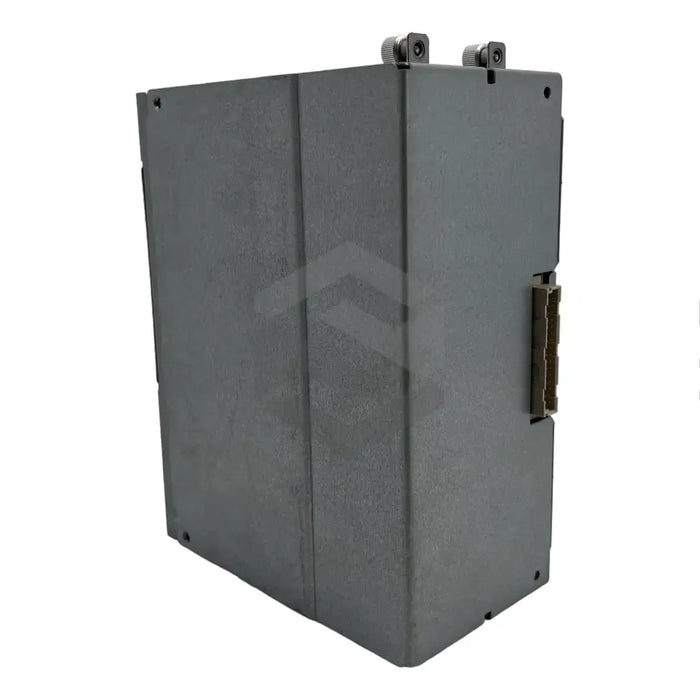

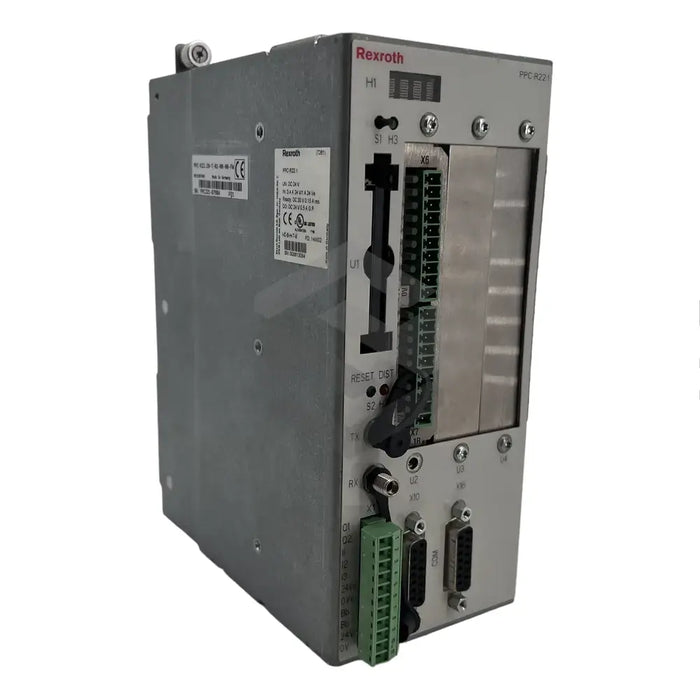

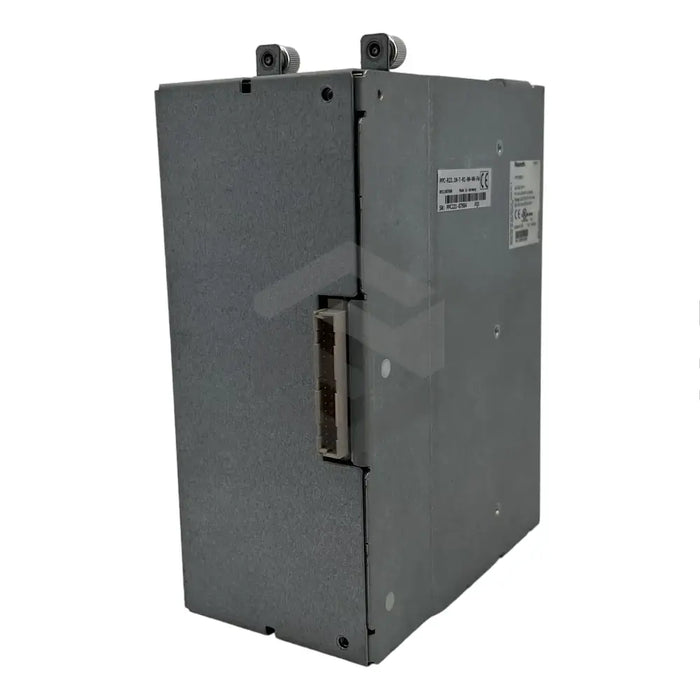

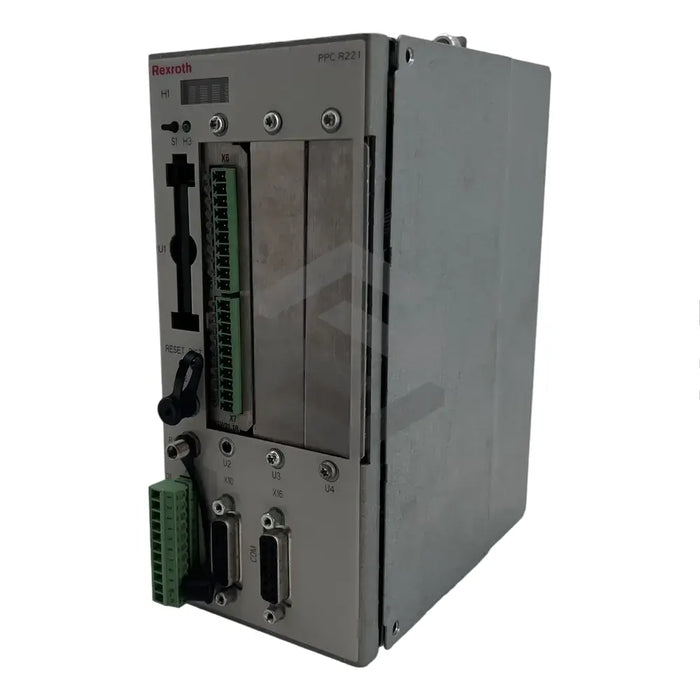

The Bosch Rexroth Indramat's product, R911307609 (PPC-R22.1N-T-N1-NN-NN-FW), is a top-tier motion/logic control with built-in Ethernet. It proudly supports both Ethernet / IP slave fieldbus and standard TCP / IP and is equipped with three expansion slots. While the control comes standard with PLS master module, it does not include an in-built memory module. This versatile device facilitates connectivity with up to forty digital drives, including Rexroth IndraDrive, Rexroth DIAX 04, and Rexroth EcoDrive 03, through a SERCOS interface. It is configured and programmed using a proprietary software, VisualMotion Toolkit, available from Bosch Rexroth. Connection to a programming PC is attained through a handy serial programming interface that supports RS 232 / RS 422 / RS 485.
The R911307609 (PPC-R22.1N-T-N1-NN-NN-FW) operates on a powerful Power PC processor accompanied by an 8 megabyte RAM, and a 256 byte EPROM. A user-friendly four-digit display sits on the front panel. Further features include three digital inputs, two digital outputs, and a sturdy housing with IP 20 environmental rating. Despite its compact size of 214 x 83.7 x 165 millimeters and a weight of 2.87 pounds, it works optimally between 0 and 45 degrees Celsius with a DC input range of 19.2 to 30 Volts DC, making it a dynamic equipment in industrial applications.
